UNI-T LM50D Laser Distance Meter – 50 m, ±(2 mm+5×10⁻⁵·D), Area / Volume / Pythagoras, Curvature & Trapezoid, 2.4" EBTN Backlit Display, Line-Laser Marking
Pickup available at Digilog Electronics
Usually ready in 2 hours

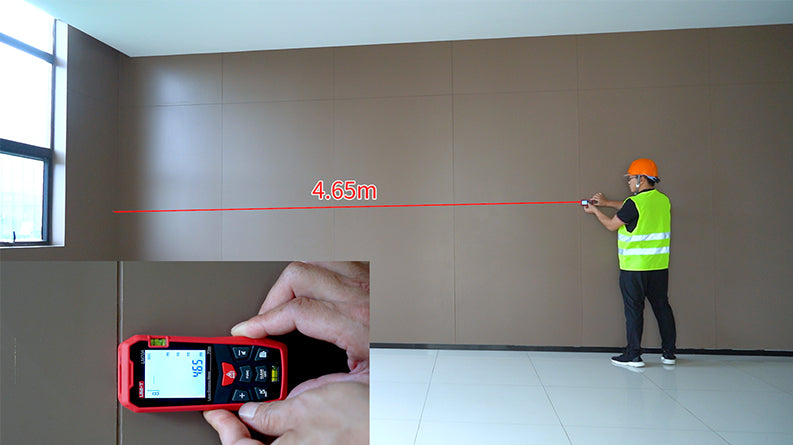

The UNI-T LM50D is a professional laser distance meter that measures up to 50 m with millimetre accuracy, replacing the tape measure for construction, interior design, real-estate and site surveying. One button press gives an instant, repeatable reading on its large 2.4-inch colour backlit (EBTN) display — no ladders, no second person, no slack-tape error.
Beyond straight distances it calculates area, volume, Pythagorean (indirect) height, triangle area, curvature and trapezoid, adds and subtracts measurements, and stores 20 readings. Built-in electronic levelling with on-screen angle plus audio/voice feedback make angled and one-handed measurements easy. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 📏 Measures up to 50 m with accuracy ±(2 mm + 5×10⁻⁵·D), resolution 1 mm
- 🧮 Area, volume & Pythagoras plus triangle-area, curvature, displacement & trapezoid modes
- ➕ Add / subtract measurements and store 20 groups of data

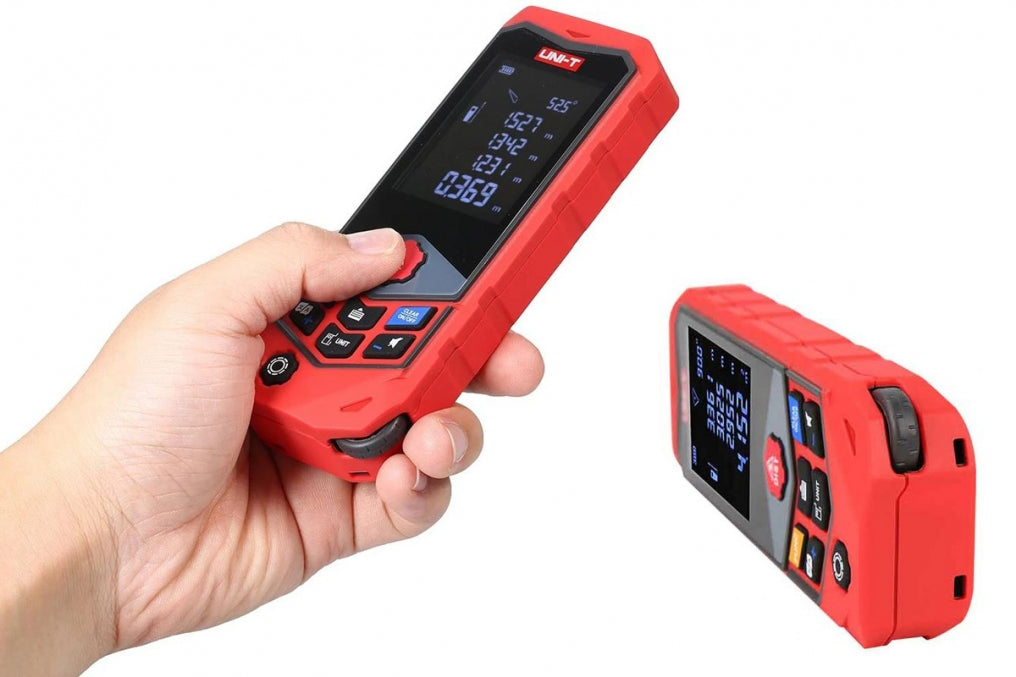

- 📐 Electronic levelling (horizontal & vertical) with on-screen angle for indirect height
- 🔆 2.4″ EBTN colour backlit display with audio/voice indication and line-laser marking
- 🔋 Class 2 laser (630–670 nm, <1 mW); runs on 2×AAA with auto power-off, laser-off & backlight-off
Technical Specifications
| Measuring range | 50 m |
|---|---|
| Accuracy | ±(2 mm + 5×10⁻⁵·D) |
| Min. display unit | 0.001 m |
| Measurement units | m / ft / in |
| Measurement basis | Front / middle / rear |
| Measurement modes | Single, continuous, max/min, area, volume, Pythagoras, triangle area, add/subtract, curvature, displacement, trapezoid |
| Levelling | Auto horizontal & vertical, electronic leveler |
| Data storage | 20 groups |

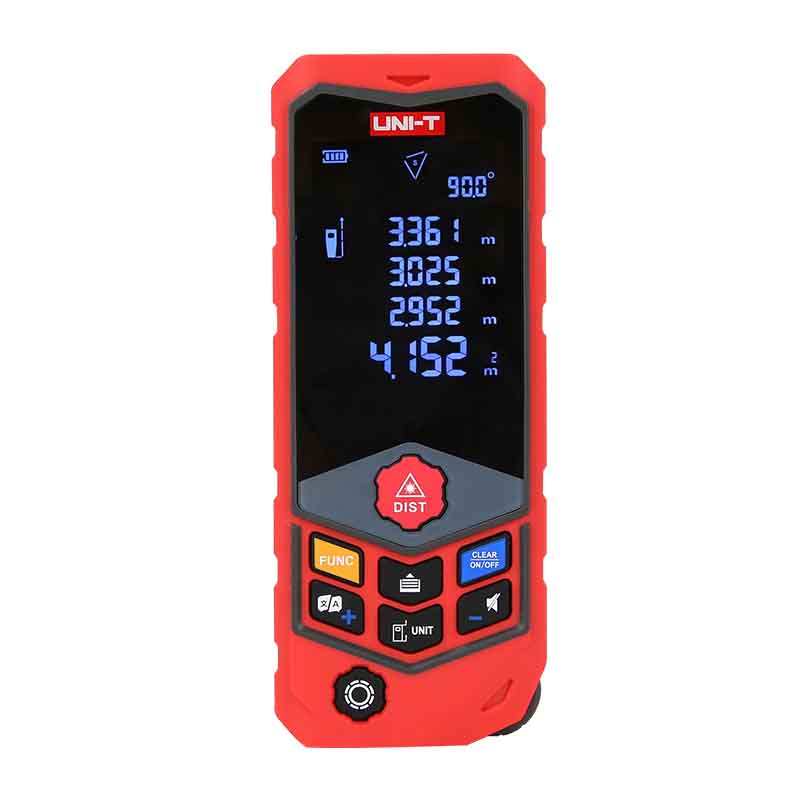

| Display | EBTN, 2.4-inch, backlit |

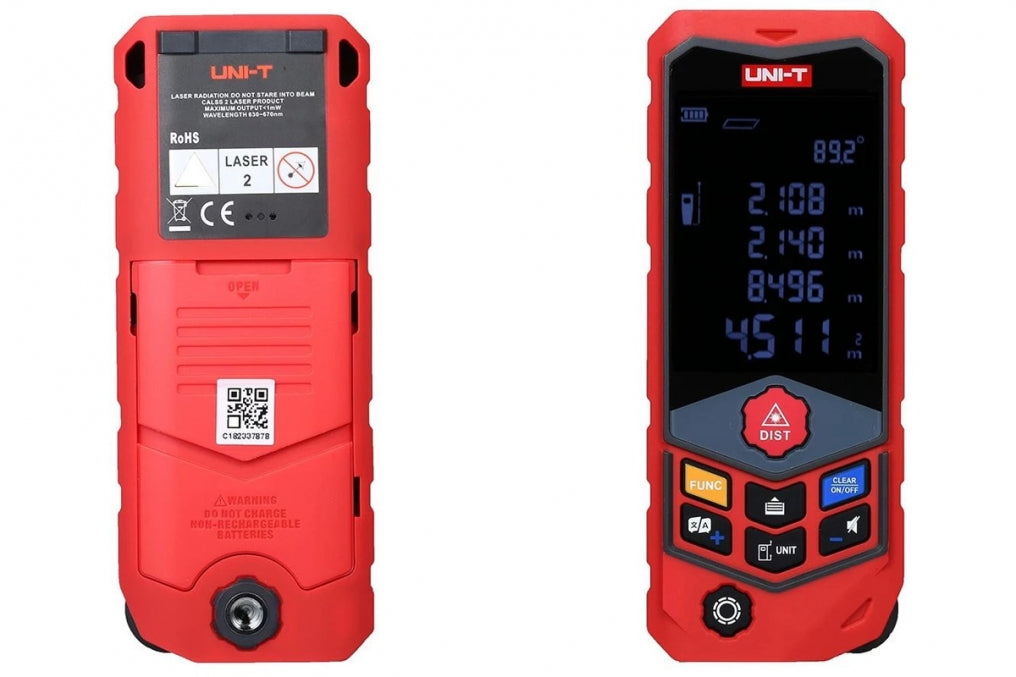

| Laser class | Class 2, 630–670 nm, <1 mW (red) |
| Auto power-off | 3 min (laser off 30 s, backlight 10 s) |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -20 °C – 70 °C |
| Power | 2 × 1.5V AAA (LR03) |
| Extras | Audio/voice indication, battery-status display, line-laser marking |
What's in the Box
- LM50D laser distance meter

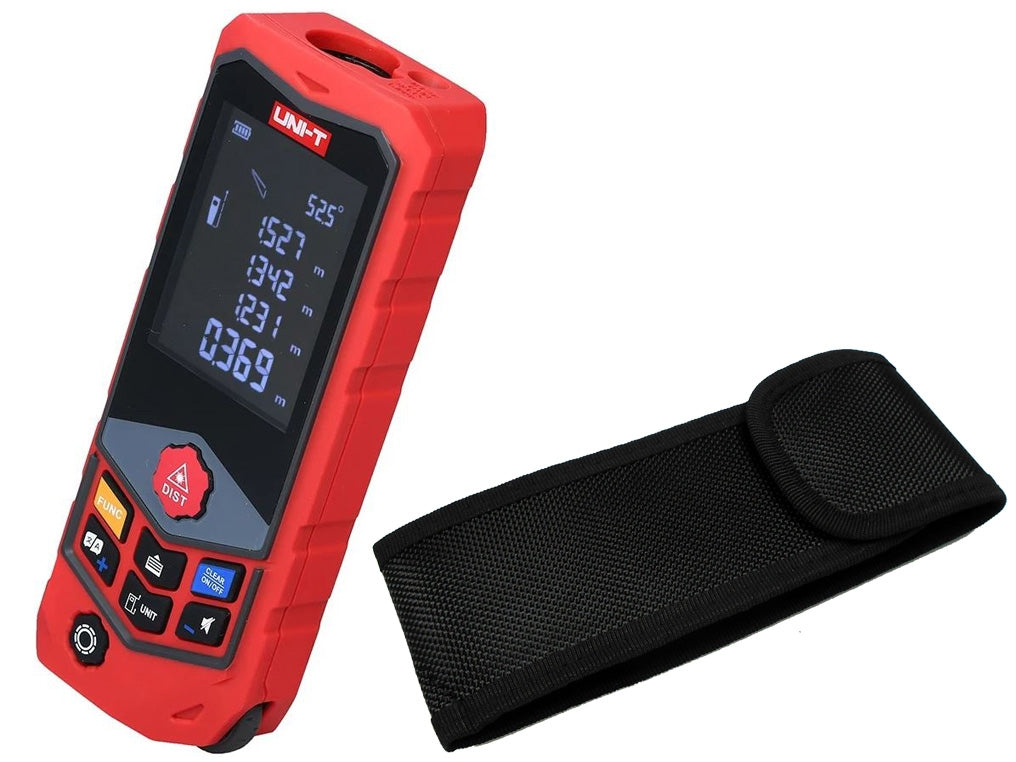

- Protective carrying pouch
- Hand strap
- 2 × AAA batteries
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9015.10
