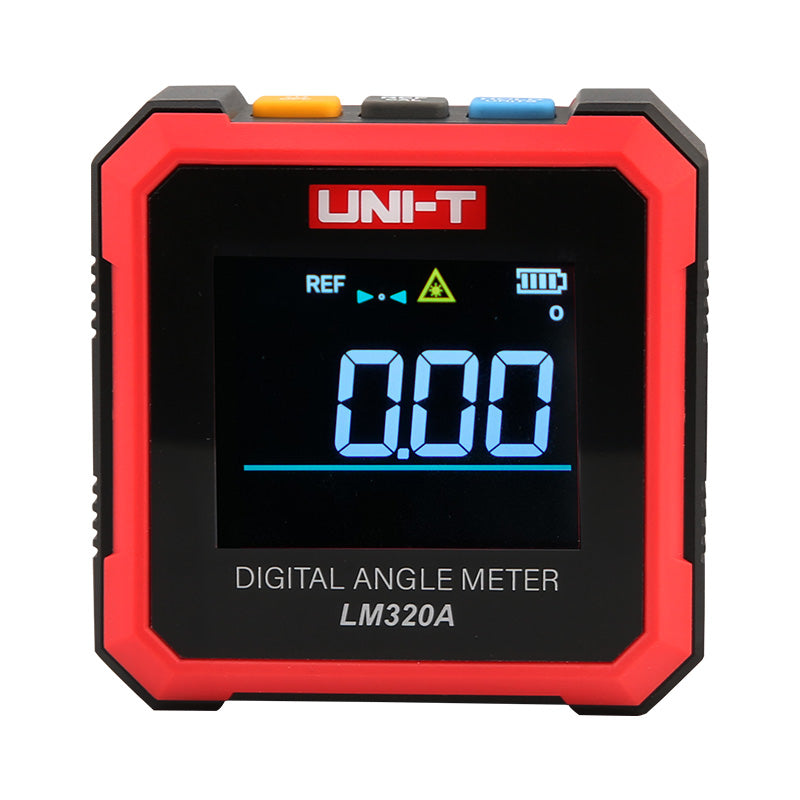

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - a red and black square device with a digital screen displaying 0.00 and three buttons on the top edge.

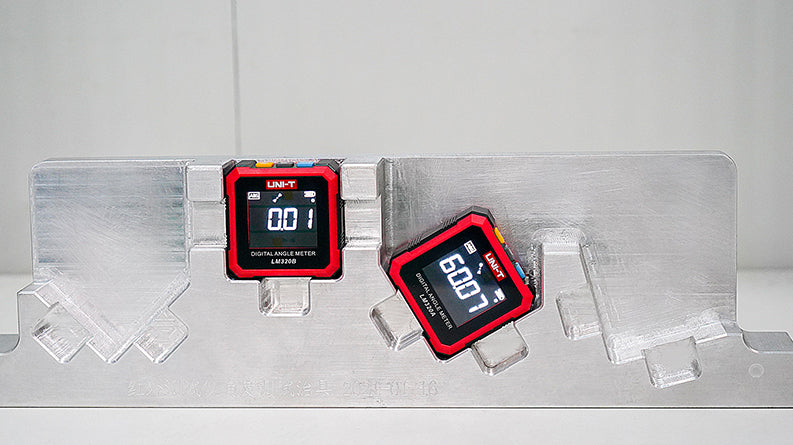

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - with red frames and black screens showing 60.07 and 0.01 readings, placed in a metal jig.

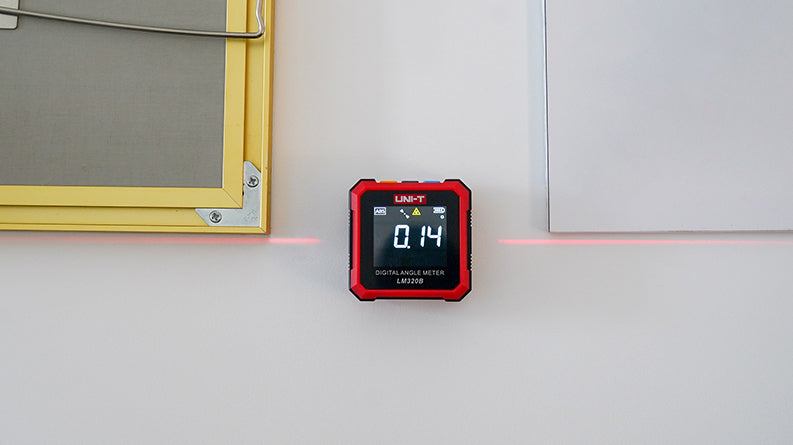

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - with a red and black square housing, showing a 0.14 reading on its EBTN display while projecting a horizontal laser line.
UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - a red and black square device with a digital screen displaying 0.00 and three buttons on the top edge.
UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - with red frames and black screens showing 60.07 and 0.01 readings, placed in a metal jig.
UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - with a red and black square housing, showing a 0.14 reading on its EBTN display while projecting a horizontal laser line.

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor

Sale price Rs 7,999
SKU: LM320A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - a red and black square device with a digital screen displaying 0.00 and three buttons on the top edge.

UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor - a red and black square device with a digital screen displaying 0.00 and three buttons on the top edge.
UNI-T LM320A Digital Angle Meter – 4×90° Inclinometer, ±0.2° Accuracy, 0.01° Resolution, EBTN Display, Two-Side Magnetic Base, Type-C Rechargeable Protractor
Sale priceRs 7,999

UNI-T LM320A — compact digital angle meter (inclinometer / electronic protractor) measuring a full 4 × 90° with ±0.2° accuracy and 0.01° resolution on a high-contrast EBTN display. Its two-side magnetic base grips steel sections hands-free, and it recharges over Type-C — ideal for manufacturing, metalwork, home decoration and DIY where accurate angles matter. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • 4 × 90° (360°) comprehensive measurement, ±0.2° accuracy, 0.01° resolution
  • Relative & absolute angle measurement modes
  • High-contrast EBTN display; data hold; low-battery indication
  • Two-side magnetic base for hands-free placement on steel
  • Type-C rechargeable 3.7 V lithium battery (300 mAh), ~2 h working time
  • Auto power off; portable and lightweight (106 g)

Technical Specifications

Measurement range 4 × 90°
Accuracy ±0.2°
Resolution 0.01°
Display EBTN
Magnet base Two-side magnets
Relative / absolute measurement Yes
Auto power off Yes
Low battery indication Yes
Power 3.7 V lithium battery (300 mAh)
Charging Type-C charging interface
Working time 2 h
Product size 60 × 60 × 30 mm
Product net weight 106 g
Product colour Black and red

What's in the Box

  • LM320A digital angle meter
  • Type-C male to female extension cable
  • USB adapter
  • Gift box
  • English user manual

Downloads

Certifications: CE, UKCA, RoHS | HS Code: 9031.80
