UNI-T LM120C Laser Distance Meter with Camera – 120 m, ±2 mm, 2.4" IPS Colour Screen, Digital Camera Aiming, Area / Volume / Pythagoras, Rotatable Display, USB Rechargeable
Pickup available at Digilog Electronics
Usually ready in 2 hours

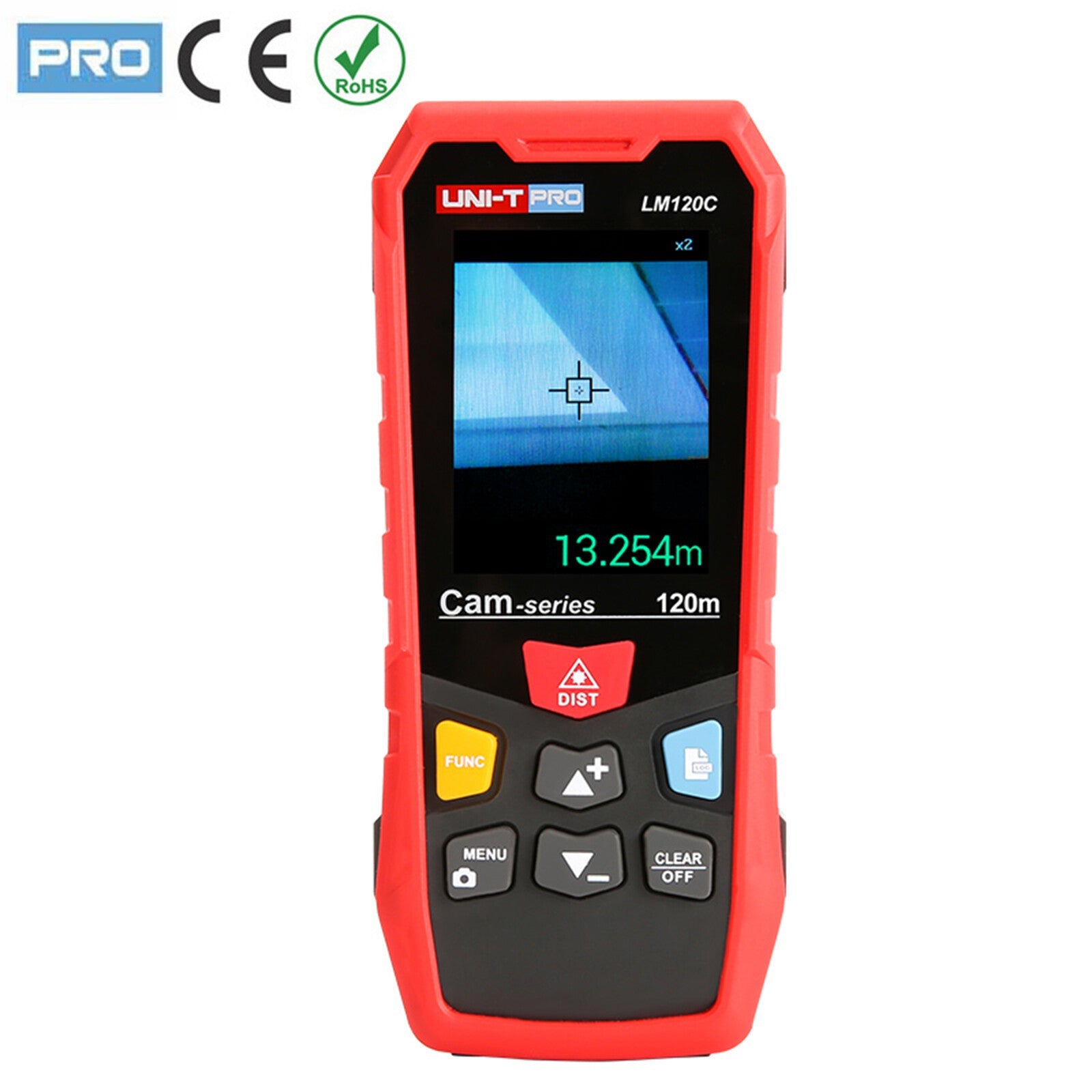

The UNI-T LM120C is a premium camera laser distance meter that measures up to 120 m with ±2 mm accuracy. Unlike ordinary rangefinders, it has a built-in digital camera shown on a 2.4-inch IPS colour screen — so you can see exactly where the laser dot lands, even in bright daylight or at long range where the red dot would normally be invisible to the eye.
A crosshair with 2× zoom makes far-off targets easy to hit, while the rotatable screen keeps readings upright at any angle. It calculates area, volume, Pythagorean (indirect) height and triangle area, adds and subtracts, stores 100 readings, and includes electronic levelling with auto horizontal/vertical modes. Recharges over USB. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 📷 Built-in digital camera on a 2.4″ IPS colour screen — aim the laser at targets you can't see by eye
- 🎯 2× zoom crosshair for precise long-range and bright-daylight targeting
- 📏 Measures up to 120 m with accuracy ±2 mm, 1 mm resolution
- 🔄 Rotatable screen plus electronic levelling (auto horizontal & vertical)
- 🧮 Area, volume, Pythagoras, triangle area, add/subtract; stores 100 groups
- 🔋 USB rechargeable (3×AAA Ni-MH); tripod mounting hole; auto power-off
Technical Specifications
| Measuring range | 120 m |
|---|---|
| Accuracy | ±2 mm |
| Display | IPS, 2.4-inch colour, rotatable |
| Camera | Built-in digital camera with 2× zoom crosshair |
| Min. display unit | 0.001 m |
| Measurement units | m / ft / in / ft+in |
| Measurement basis | Front / middle / rear |
| Measurement modes | Single, continuous, max/min, area, volume, Pythagoras, triangle area, add/subtract |
| Levelling | Auto horizontal & vertical, electronic leveler |
| Data storage | 100 groups |
| Laser class | Class 2, 630–670 nm, <1 mW (red) |
| Charging | USB |
| Power | 3 × 1.2V AAA Ni-MH (rechargeable) |
| Mounting | Tripod screw hole |
| Dimensions / weight | 137 × 59 × 28 mm · 170 g |
What's in the Box
- LM120C camera laser distance meter
- Carrying bag
- USB charging cable
- 3 × rechargeable AAA batteries
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9015.10
