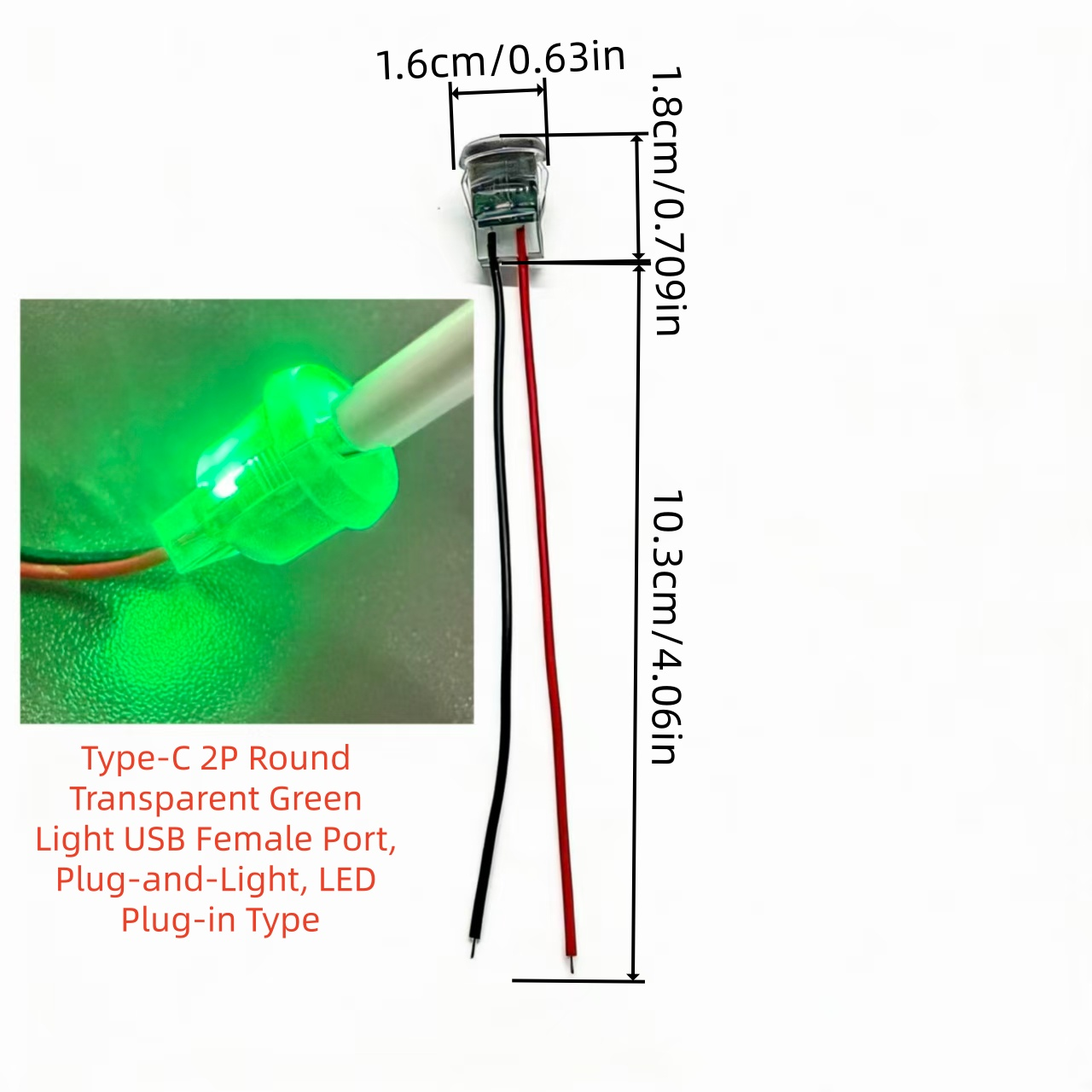

Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - shown with dimensions, two wires, and an inset image of the component glowing green.

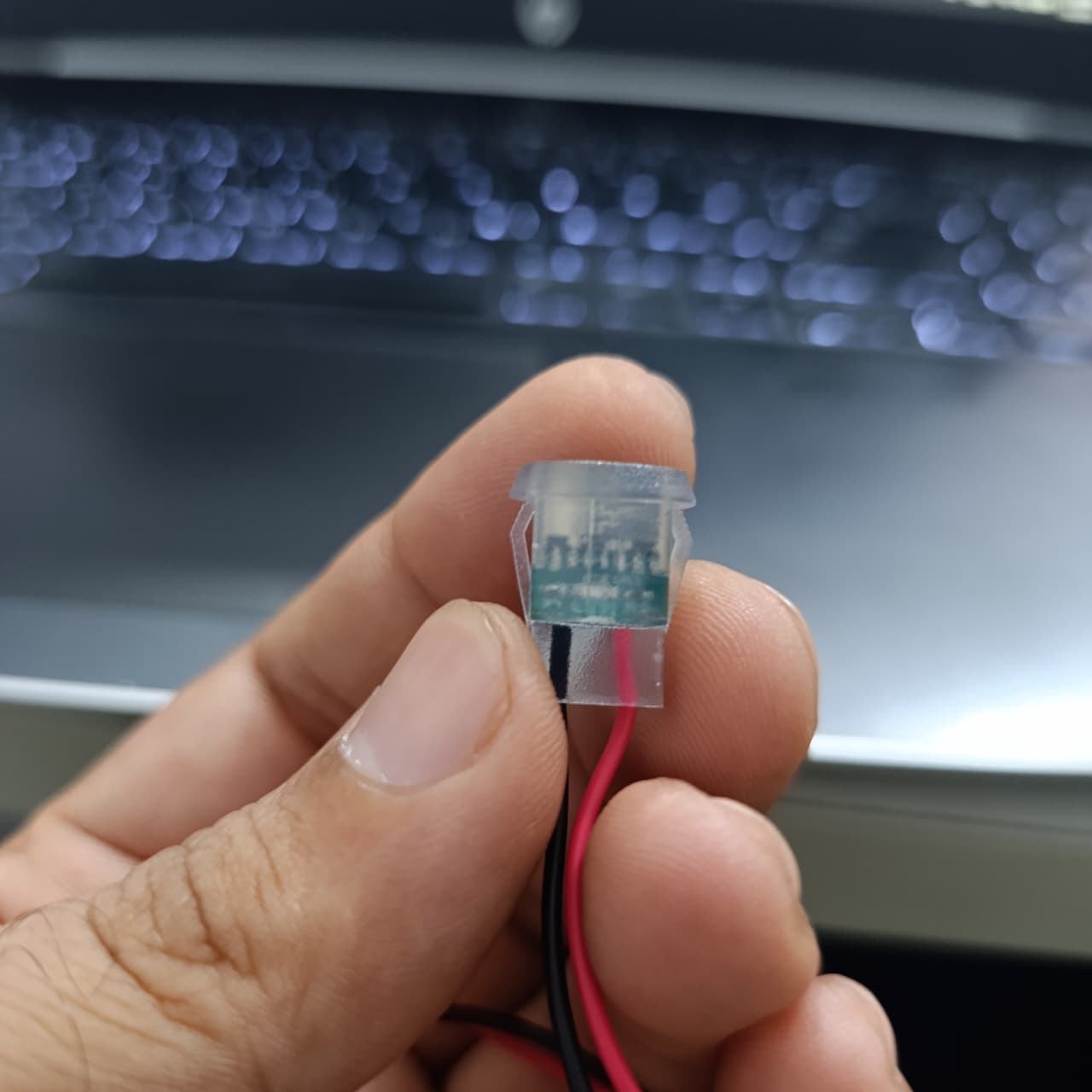

Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - the clear plastic casing, internal green circuit board, and two wires.

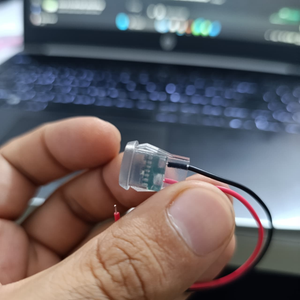

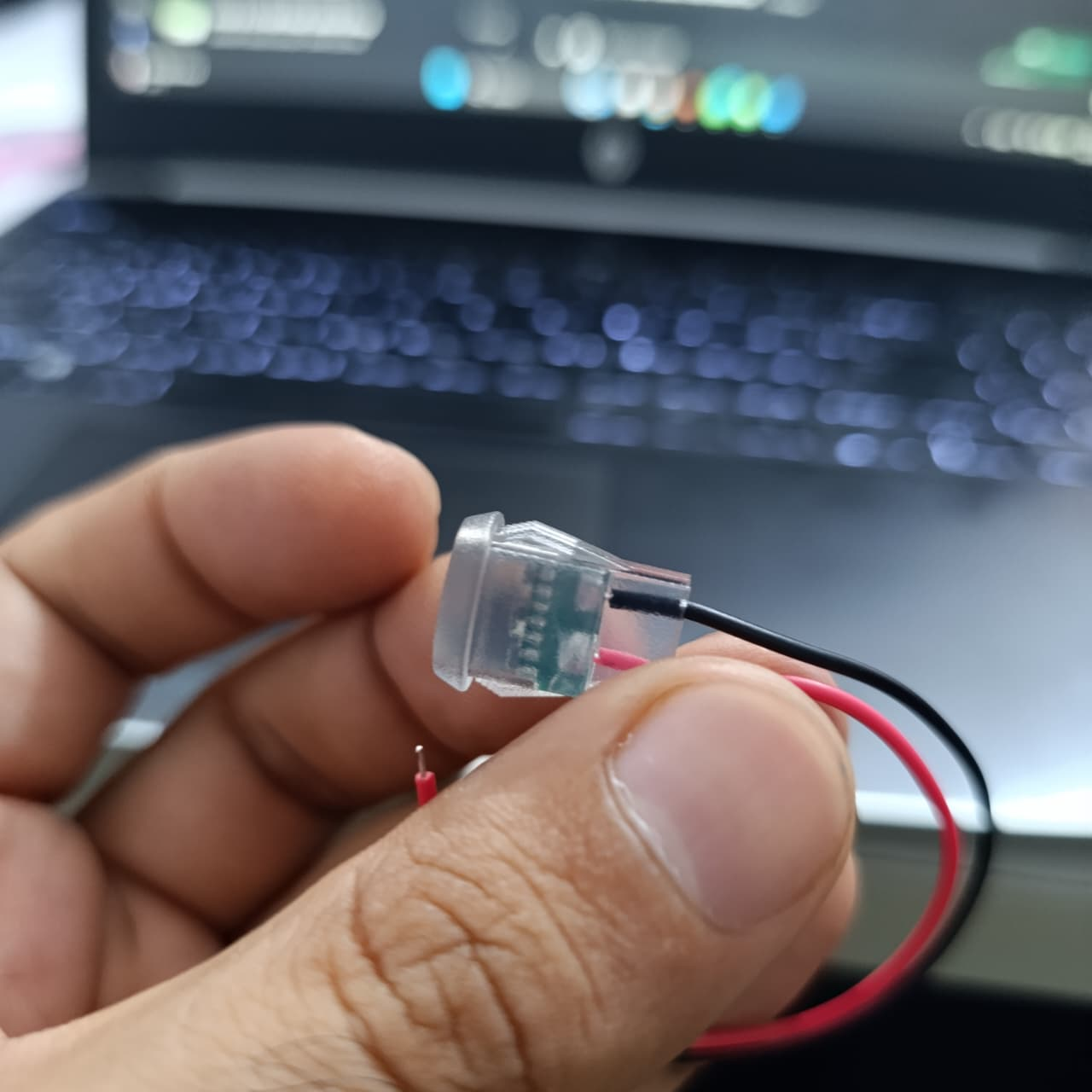

Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - close-up of the component held in fingers with red and black wires attached to the base.

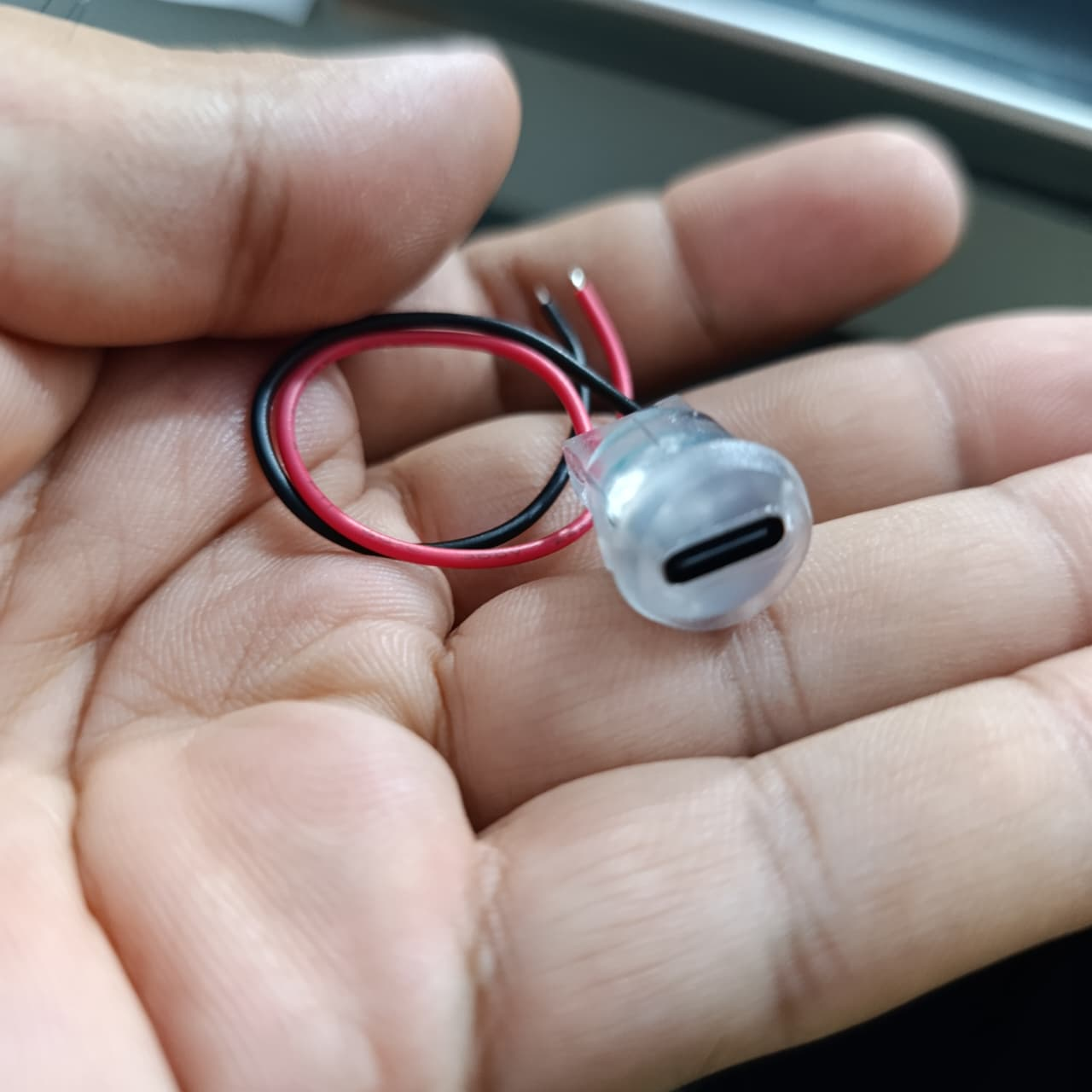

Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - clear plastic USB-C port with attached red and black wires.
Sold out
Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - shown with dimensions, two wires, and an inset image of the component glowing green.
Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - the clear plastic casing, internal green circuit board, and two wires.
Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - close-up of the component held in fingers with red and black wires attached to the base.
Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type - clear plastic USB-C port with attached red and black wires.

Type-C 2P Round Transparent Green Light USB Female Port – LED Plug-in Type

Sale price Rs 150
SKU: b47
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Type-C 2P Round Transparent Green Light USB Female Port

A compact, plug-and-play USB Type-C female port connector with a built-in green LED indicator light. Designed for easy panel mounting, this connector lights up instantly upon connection — making it ideal for DIY electronics, custom enclosures, and indicator applications.

Key Features

  • Plug-and-Light: Green LED activates automatically when plugged in — no extra wiring required
  • Type-C 2P Female Port: Standard USB Type-C female interface with 2-pin power connection
  • Round Transparent Housing: Clear round body allows the green LED glow to be fully visible
  • Pre-wired Leads: Comes with red (+) and black (−) wire leads (~10.3 cm / 4.06 in) for easy soldering or terminal connection
  • Compact Size: Head diameter 1.6 cm (0.63 in), body height 1.8 cm (0.709 in)
  • LED Plug-in Type: Integrated LED design — no external resistor needed for standard 5V USB applications

Specifications

  • Connector Type: USB Type-C Female, 2P
  • LED Color: Green
  • Housing: Round, Transparent
  • Head Diameter: 1.6 cm / 0.63 in
  • Body Height: 1.8 cm / 0.709 in
  • Wire Length: 10.3 cm / 4.06 in
  • Wire Colors: Red (positive), Black (negative)
  • Mount Type: Panel / Plug-in

Applications

  • DIY electronics enclosures and project boxes
  • Power indicator panels
  • Custom charging stations
  • Maker and prototyping projects
