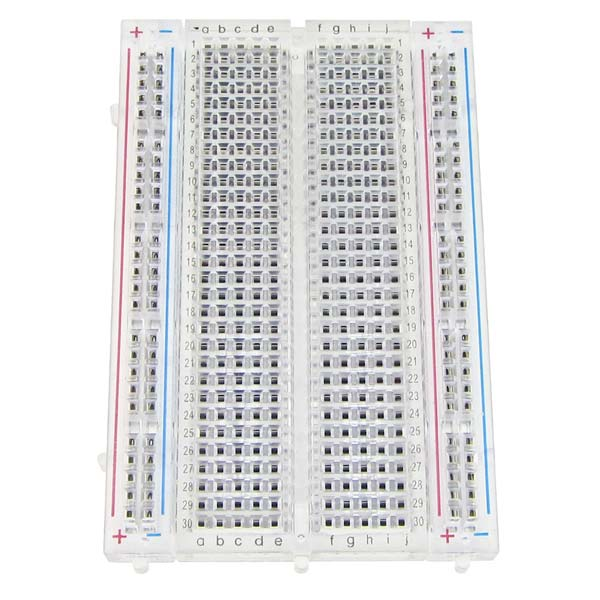

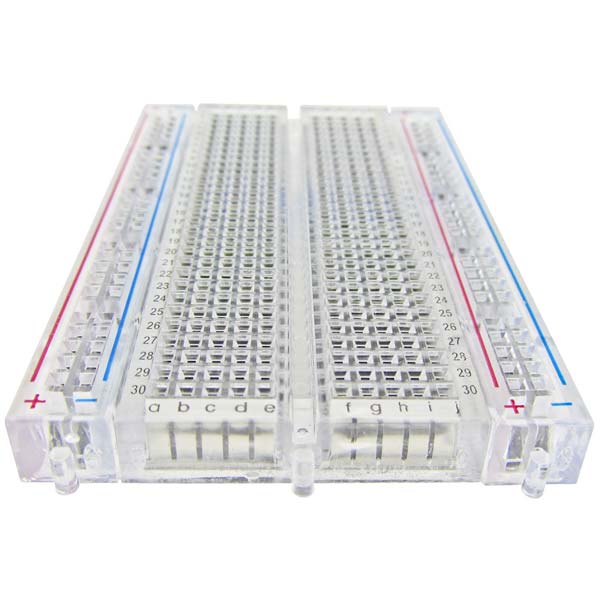

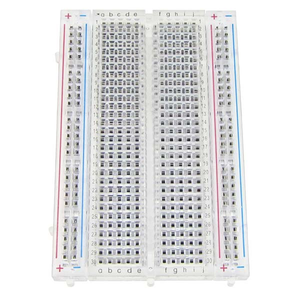

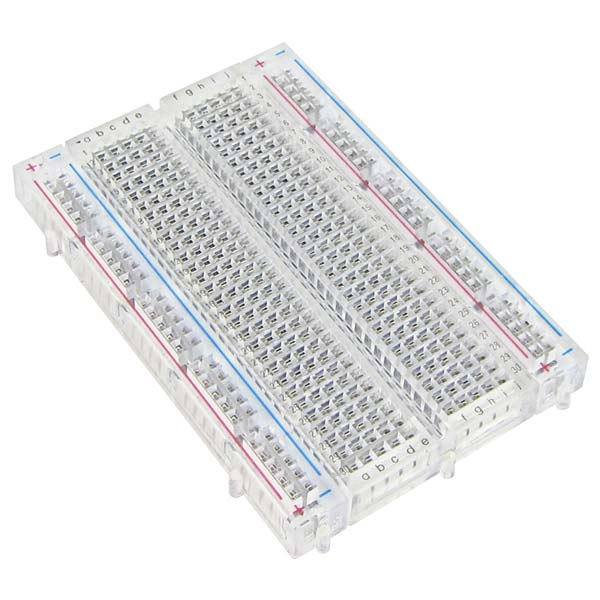

Transparent Clear Breadboard – 400 Tie-Points

Build and prototype your circuits with full visibility! This transparent ABS plastic breadboard lets you see the inner connections as you work — perfect for learning, teaching, and debugging electronics projects.

Key Features

• 400 Total Tie-Points: 300 general prototyping tie-points + 100 power rail tie-points
• Transparent ABS Plastic — see the internal connections clearly
• 2 Columns × 30 Rows of 5 interconnected tie-points each
• 2 Pairs of Power Rails (positive & negative), one pair on each side — 25 interconnected tie-points per rail
• 0.3" (7.62mm) column separation — ideal for DIP-style ICs
• Board-to-board side connectors on all four sides — link multiple breadboards to build larger prototyping areas
• Removable power rails — detach and use independently or trim the adhesive foam backing for a compact setup
• Self-adhesive foam backing (peel-away paper protected) — mount to projects or mounting plates
• LED-compatible body — illuminate the breadboard for added fun and visibility

Specifications

• Hole Spacing: 2.54mm (0.1")
• Acceptable Pin Sizes: 29–21 AWG
• Contact Pitch: 2.54mm (0.1")
• Contact Material: Nickel plated brass
• Rated Amperage: 2A

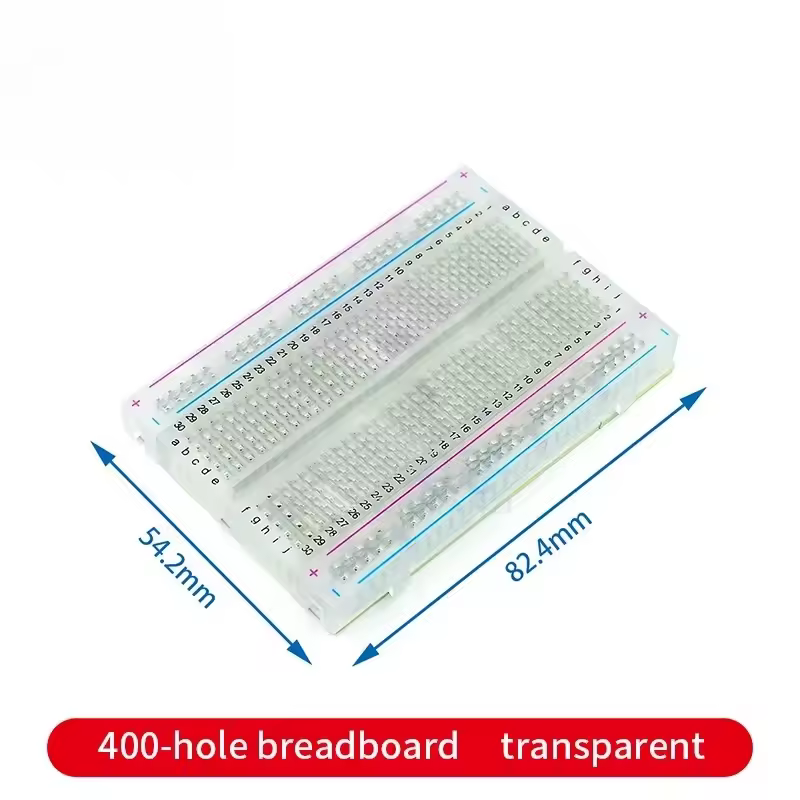

Dimensions

• Length: 82.55mm (3.25")
• Width: 54.61mm (2.15")
• Height: 8.38mm (0.33")

* Dimensions exclude board-to-board side connectors and adhesive foam backing.
