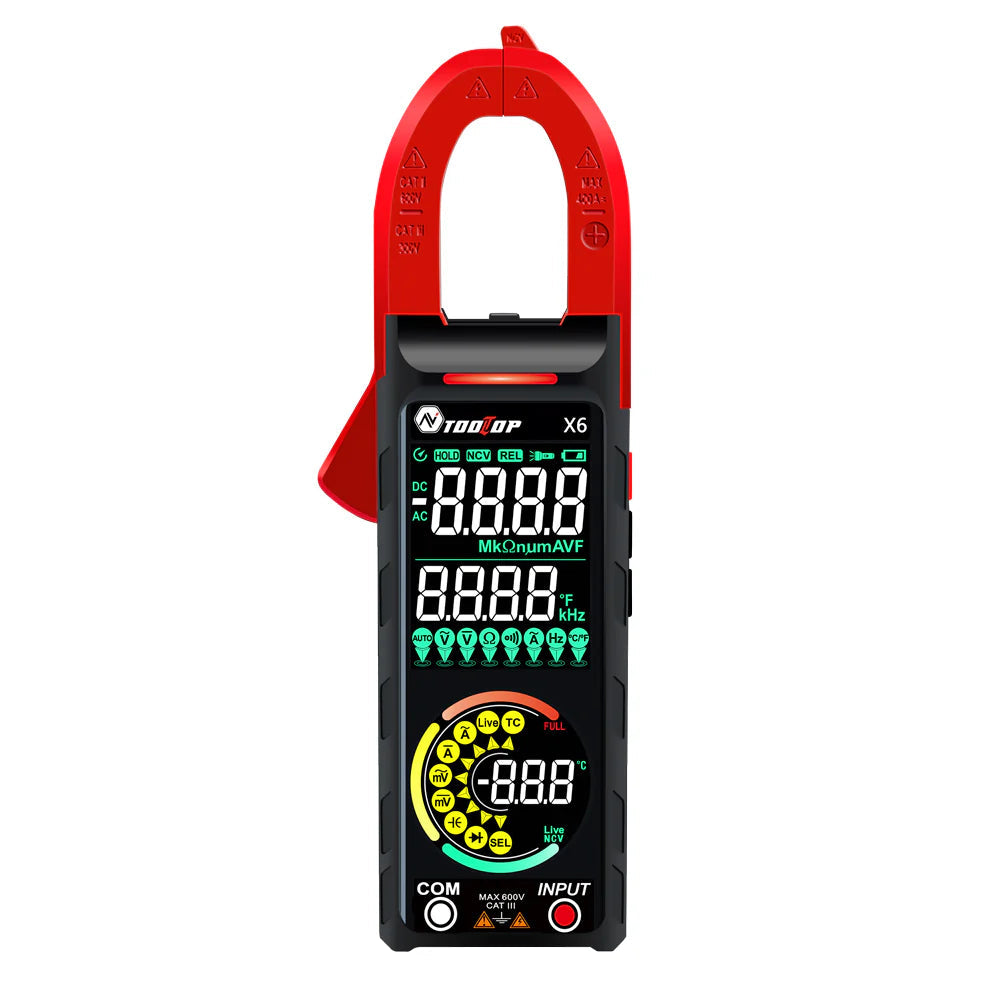

TOOLTOP X6 Smart AC/DC Clamp Meter – 400A, Dual Colour Screen, Auto and Manual
The TOOLTOP X6 is a smart clamp meter with a dual colour screen and both automatic and manual test modes. It measures AC and DC current in 40A and 400A ranges, so it suits both small appliance currents and DC solar strings.
It also measures AC/DC voltage up to 600V, resistance to 60MΩ, capacitance to 60mF, frequency and temperature, on a 6000-count display with auto power-off.
Key Features
- ⚡ AC and DC current 40A / 400A, ±(2.5% + 30)
- 🖥️ Dual colour screen with automatic and manual modes
- 🔧 DC voltage ±(0.5% + 3), AC voltage ±(0.8% + 5) up to 600V
- 📏 Resistance 600Ω to 60MΩ, capacitance 6nF to 60mF
- 🌡️ Temperature −40 to 999℃, frequency, diode, continuity
Technical Specifications
| Model | X6 |
|---|---|
| Brand | TOOLTOP |
| AC Current | 40A / 400A, ±(2.5% + 30) |
| DC Current | 40A / 400A, ±(2.5% + 30) |
| DC Voltage | 600mV / 600V, ±(0.5% + 3) |
| AC Voltage | 600mV / 600V, ±(0.8% + 5) |
| Resistance | 600Ω to 60MΩ, ±(0.8% + 3) |
| Capacitance | 6nF to 60mF |
| Frequency | 60.0Hz / 1000Hz, ±(1.0% + 5) |
| Temperature | −40 to 999℃ (−40 to 1832℉), ±(1.0% + 3) |
| Diode test | about 3.2V open circuit, about 1mA |
| Display | LCD, 6000 counts |
| Auto power-off | 15 minutes |
| Power | 2 × 1.5V AAA (not included) |
What's in the Box
- 1 × TOOLTOP X6 clamp meter
- 1 pair of test leads
- 1 × thermocouple
- 1 × English user manual
- Packing box
