TOOLTOP X5 Smart AC/DC Clamp Meter – 400A, True RMS, 6000 Counts, Colour Screen

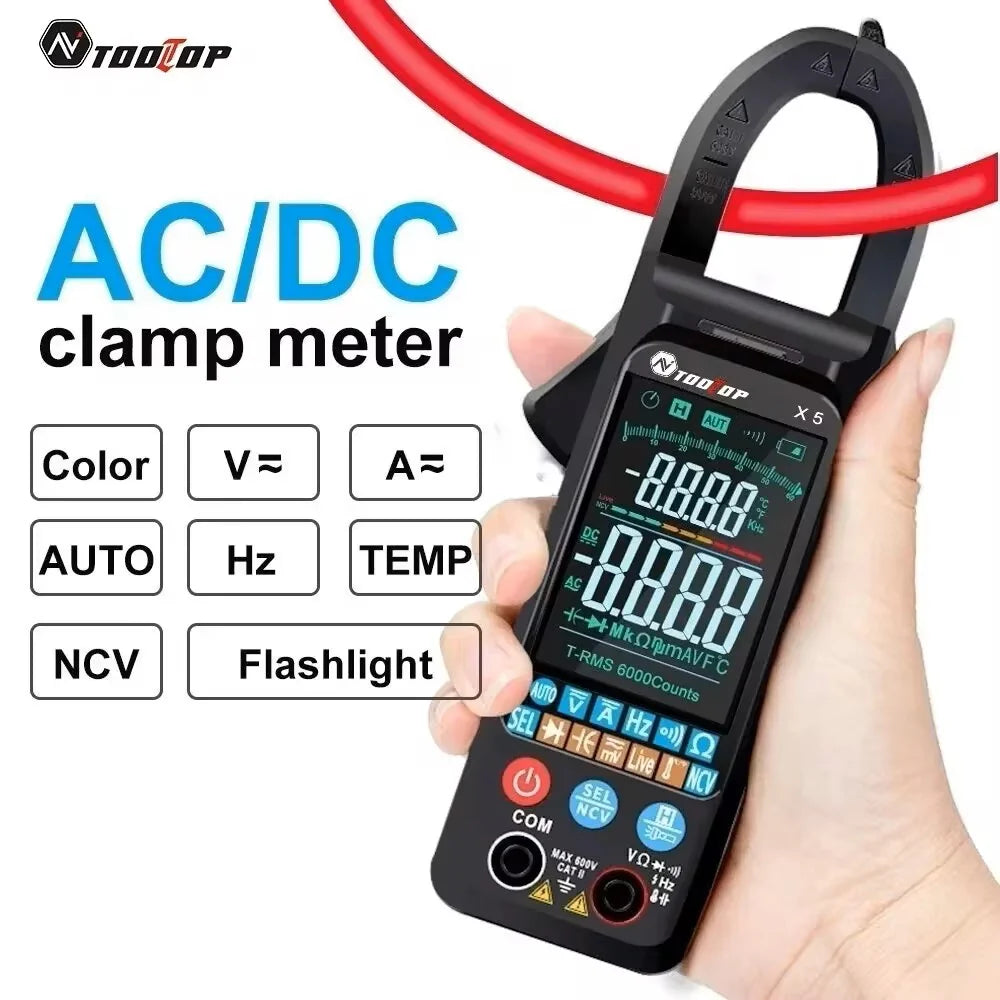

The TOOLTOP X5 is a compact smart clamp meter with a three-line colour screen. In automatic mode it identifies what you are measuring, so electricians can check voltage and current without turning the dial for every test.
It reads AC and DC current up to 400A, AC/DC voltage to 600V, resistance, capacitance up to 60mF, frequency and temperature, with NCV, live-wire detection and a flashlight. It weighs about 157 g.
Key Features
- ⚡ AC and DC current to 400A (DC from 200mA)
- 🤖 Automatic identification and automatic measurement
- 🖥️ Large colour screen, 3-line display, 6000 counts with bargraph
- 📏 Resistance, capacitance to 60mF, frequency, temperature −40 to 1000℃
- 💡 NCV, live wire, flashlight, overload protection, auto off after 15 minutes
Technical Specifications
| Model | X5 |
|---|---|
| Brand | TOOLTOP |
| AC Current | up to 400A |
| DC Current | 200mA to 400A |
| DC Voltage | 600V |
| AC Voltage | 600V |
| Capacitance | up to 60.00mF |
| Temperature | −40 to 1000℃ (−40 to 1832℉) |
| Frequency | 60.0Hz / 1000Hz |
| Continuity | 1Ω |
| Display | LCD, 6000 counts, bargraph |
| Sampling | about 3 times/s, bargraph 10 times/s |
| Auto power-off | 15 minutes |
| Power | 2 × 1.5V AAA (not included) |
| Weight | about 157 g (packed about 279 g) |
What's in the Box
- 1 × TOOLTOP X5 clamp meter
- 1 × test pen
- 1 × K-type thermocouple
- 1 × user manual
