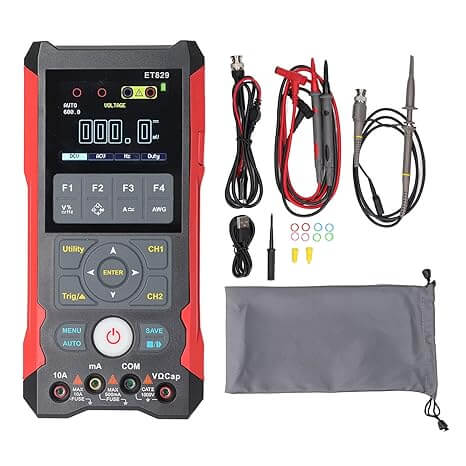

TOOLTOP ET829 3-in-1 Handheld Oscilloscope – 80MHz 2-Channel, Multimeter, Signal Generator
The TOOLTOP ET829 puts three instruments in one handheld unit: a 2-channel 80MHz digital storage oscilloscope (250MSa/s real-time sampling), a 6000-count true RMS multimeter and a 1Hz to 5MHz signal generator. It suits field repair of inverters, SMPS, car electronics and control boards where a bench scope is not practical.
It has a 2.8-inch 320×240 colour TFT screen, one-key auto measurement, waveform storage, and runs about 10 hours on built-in rechargeable 18650 cells with 15W fast charging.
Key Features
- 📈 80MHz bandwidth, 2 channels, 250MSa/s real-time sampling
- 🔧 6000-count true RMS multimeter built in
- 〰️ Signal generator 1Hz to 5MHz: sine, triangle, square
- 💾 Stores up to 200 waveforms and 2000 DMM readings
- 🔋 2 × 18650 rechargeable, 15W fast charge, about 10 hours use
Technical Specifications
| Model | ET829 |
|---|---|
| Brand | TOOLTOP |
| Oscilloscope bandwidth | 80MHz |
| Channels | 2 |
| Sampling rate | 250MSa/s real-time |
| Multimeter | 6000 counts, true RMS |
| Signal generator | 1Hz to 5MHz, sine / triangle / square |
| Display | 2.8-inch colour TFT, 320 × 240, adjustable backlight |
| Storage | up to 200 waveforms and 2000 DMM values |
| Trigger modes | Auto, normal, single |
| Power | built-in 2 × 18650 rechargeable, 15W fast charging, about 10 h |
| PC software | Yes |
What's in the Box
- 1 × TOOLTOP ET829 3-in-1 oscilloscope
