TOOLTOP ET8135 Colour Screen Multimeter – True RMS, 9999 Counts, 10A, NCV
The TOOLTOP ET8135 is a true RMS auto-ranging multimeter with a bright colour display and a 9999-count resolution, one step finer than common 6000-count meters.
It measures AC/DC current up to 10A, DC voltage to 1000V and AC to 600V, resistance to 99.99MΩ, large capacitors up to 99.99mF and temperature from −40 to 1000℃. NCV live-wire detection is built in.
Key Features
- ⚡ True RMS, 9999-count colour display
- 🔌 AC and DC current to 10A
- 🔧 DC voltage to 1000V, AC voltage to 600V
- 📏 Resistance to 99.99MΩ, capacitance to 99.99mF

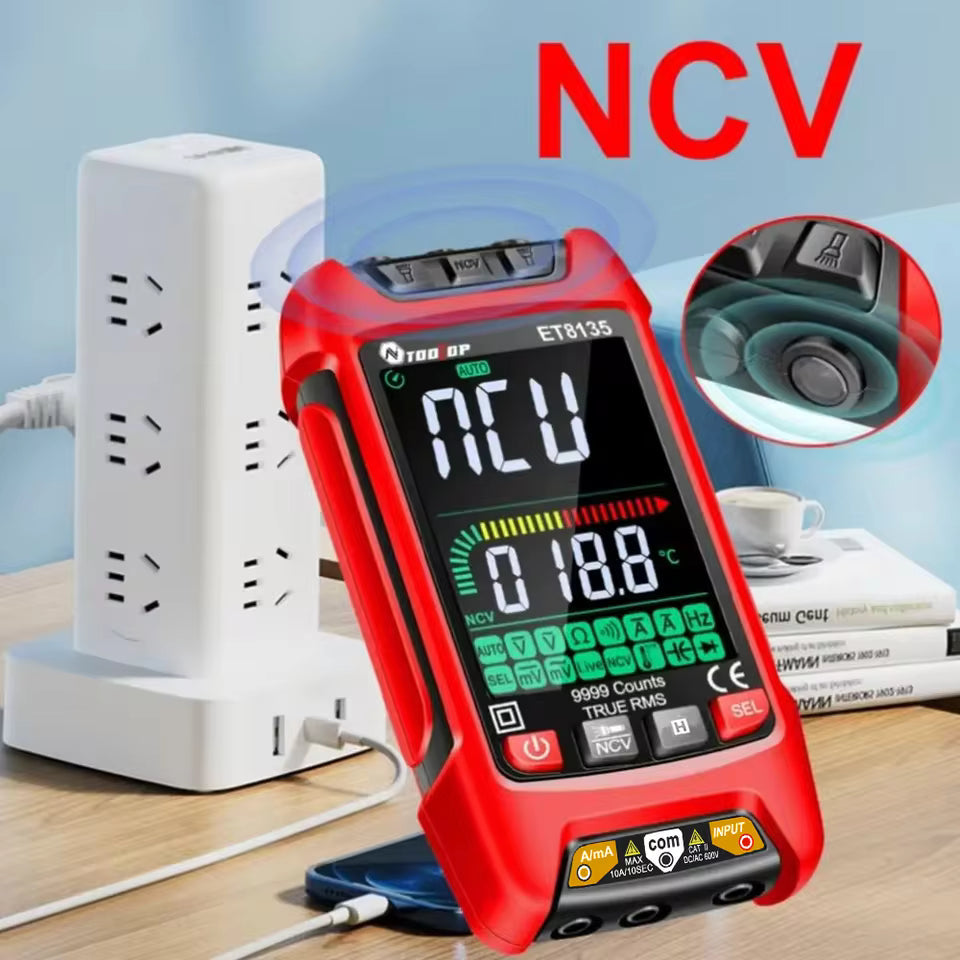

- 🌡️ Temperature −40 to 1000℃, NCV, diode, continuity, frequency
Technical Specifications
| Model | ET8135 |
|---|---|
| Brand | TOOLTOP |
| True RMS | Yes |
| Display | colour LCD, 9999 counts |
| DC Voltage | 600.0mV / 9.999V / 99.99V / 999.9V |
| AC Voltage | 600.0mV / 9.999V / 99.99V / 600.0V |
| AC / DC Current | 6000mA / 10A |
| Resistance | 999.9Ω to 99.99MΩ |
| Capacitance | 9.999nF to 99.99mF |
| Temperature | −40 to 1000℃ |
| Continuity | below 50Ω |
| Other functions | NCV, diode, frequency, backlight |
| Auto power-off | 15 minutes |
| Power | 2 × 1.5V AAA (not included) |
What's in the Box
- 1 × TOOLTOP ET8135 multimeter
