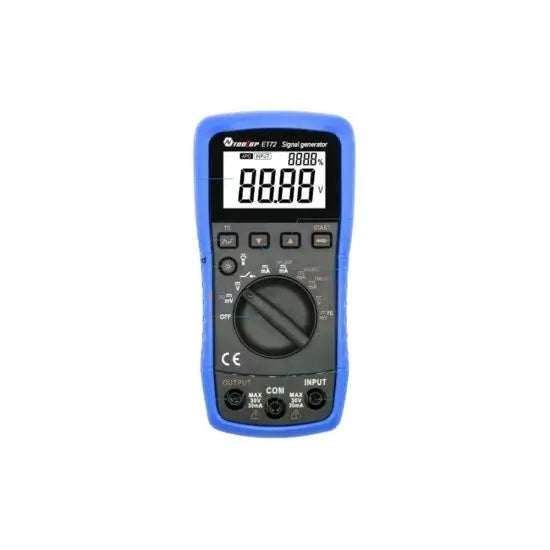

TOOLTOP ET72 Process Calibrator – 4-20mA Loop, Voltage and Thermocouple Signal Generator
The TOOLTOP ET72 is a handheld process calibrator and signal generator for industrial instrumentation. Use it to source and measure 4-20mA loop signals, DC voltage and thermocouple signals when commissioning or fault-finding PLC inputs, transmitters, valve positioners and panel meters.
It can power a two-wire loop from its own 24V supply while reading the loop current, simulate thermocouples of eight types with automatic or manual cold-junction compensation, and step or ramp its output automatically. V, mA and percentage are shown together on one screen.
Key Features
- 🔌 Measure and output 20mA DC current, including SIMULATE output for two-wire transmitters
- ⚡ Measure and output DC voltage in 100mV and 30V ranges
- 🔁 Loop check: supplies 24V loop power and measures the current at the same time
- 🌡️ Thermocouple measure and output, 8 types (R, S, B, K, E, J, T, N), ℃ and ℉, auto or manual cold-junction compensation
- 📈 Manual step and automatic waveform output; V, mA and % shown together; switch-value measurement
Technical Specifications
| Model | ET72 |
|---|---|
| Brand | TOOLTOP |
| DC voltage (measure / output) | 100mV and 30V ranges |
| DC current (measure / output) | 20mA range (4-20mA loop) |
| Loop power | 24V, with simultaneous current measurement |
| Thermocouple types | R, S, B, K, E, J, T, N (measure and output) |
| Cold-junction compensation | Automatic and manual |
| Output modes | Manual step, automatic waveform, SIMULATE |
| Display | V, mA and percentage simultaneously |
What's in the Box
- 1 × ET72 calibrator
- 1 × tool bag
- 1 pair of test leads
- 1 pair of crocodile clips
- 1 × English user manual
- Packing box
