TOOLTOP ET2202 Car Battery Tester – 12V/24V, CCA 100-1999, Cranking and Charging Test

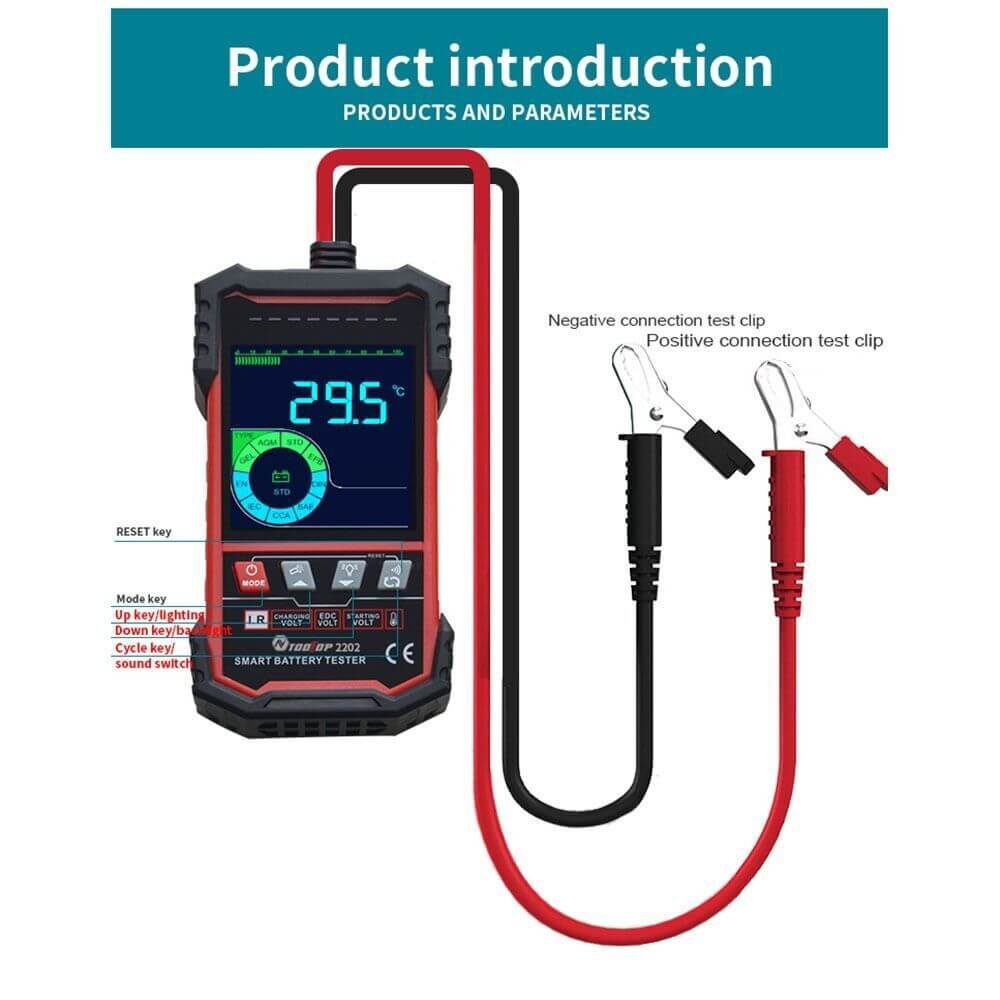

The TOOLTOP ET2202 is a smart battery analyser for 12V and 24V lead-acid batteries in cars, trucks, generators and UPS/solar banks. Clip it on and it measures internal resistance, cold-cranking amps (CCA 100 to 1999) and state of health, so you can tell a weak battery from a good one before it fails.
It also runs a vehicle cranking (starting) test, a charging-system test, a load test and battery temperature measurement with the included probe. It supports STD, AGM, GEL and EFB batteries and EN, IEC, SAE, DIN and CCA rating standards, using a four-wire Kelvin connection for accurate readings.
Key Features
- 🔋 12V and 24V lead-acid batteries (STD, AGM, GEL, EFB)
- ⚡ CCA 100 to 1999, capacity up to 250Ah, internal resistance
- 🚗 Cranking test, charging test and load test
- 🌡️ Battery temperature probe (ET2202)
- 🎯 Four-wire Kelvin test; white backlight, over-voltage and reverse protection
Technical Specifications
| Model | ET2202 |
|---|---|
| Brand | TOOLTOP |
| Batteries | 12V / 24V lead-acid (STD, AGM, GEL, EFB) |
| Standards | EN, IEC, CCA, SAE, DIN |
| CCA range | 100 to 1999 |
| Capacity range | up to 250Ah |
| Tests | Internal resistance, state of health, capacity, cranking, charging, load, temperature |
| Test method | Four-wire Kelvin |
| Power | From the battery under test |
| Screen | 55 × 57 mm, white backlight |
| Protection | Over-voltage, reverse input |
| Package weight | 524 g |
What's in the Box
- 1 × TOOLTOP ET2202 battery tester
- 1 × temperature probe
- 1 × power line
- 1 × storage bag
- 1 × guide
