TOF400C VL53L1X 4M Laser Distance Sensor Module (Arduino Compatible)

The TOF400C VL53L1X is a compact and highly accurate laser distance sensor designed to measure how far objects are from the sensor. It uses advanced Time-of-Flight (ToF) technology, which calculates distance by measuring how long a laser signal takes to travel to an object and return.

📏 Key Features

• Long Range Measurement:
  Measures distance from a few millimeters up to 4 meters (400 cm)
• High Accuracy:
  Provides precise readings with very small error (around ±4 mm)
• Fast Response:
  Can measure distance quickly (up to 50 times per second)
• Laser-Based Sensing:
  Uses an invisible, eye-safe infrared laser for reliable results
• Works in Different Lighting Conditions:
  Accurate even in bright or dark environments

🔌 Compatibility

• Works with Arduino, STM32, ESP32, and other microcontrollers
• Uses I2C communication for easy connection
• Operating voltage: 3V – 5V

📐 Physical Details

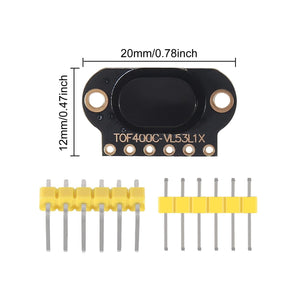

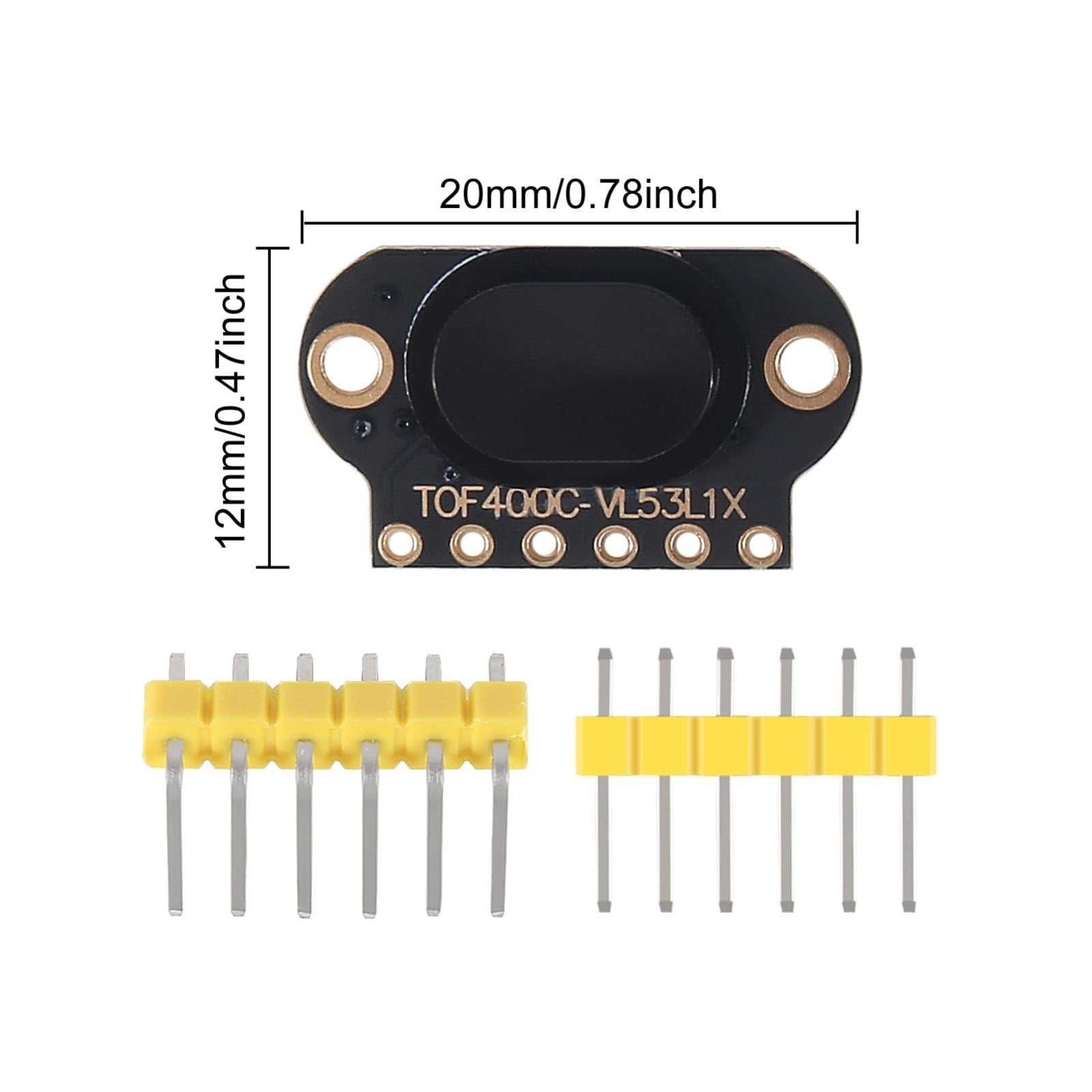

• Size: 20 mm × 12 mm (small and easy to fit in projects)

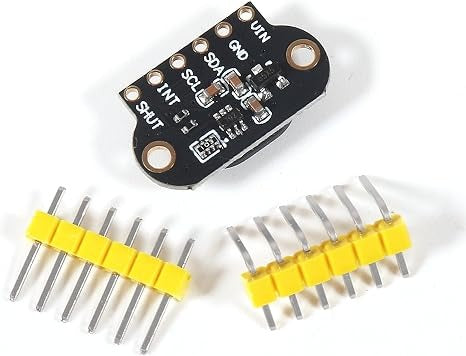

• Comes with pin headers for simple soldering and connection

⚙️ Common Uses

• Distance measurement projects
• Obstacle detection & avoidance
• Robotics and automation
• Smart devices and IoT projects

Package Includes:

• 1x TOF400C VL53L1X 4M Laser Ranging Sensor Module for Arduino
