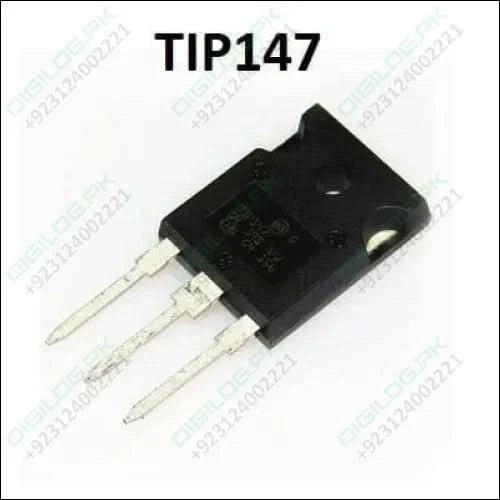

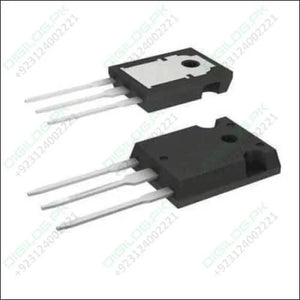

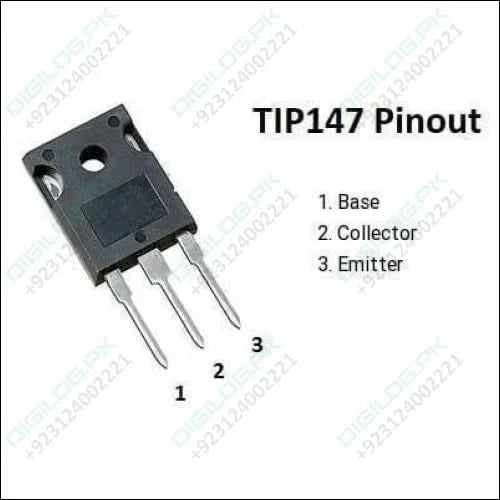

Tip147 Pnp Power Transistor

The TIP147 PNP Power Transistor is a powerful and reliable component designed for a wide range of switching and amplification applications. With its high current handling capabilities, fast switching speed, and rugged construction, the TIP147 is an ideal choice for demanding electronic circuits.

Key Features:

• High Power Handling: Capable of handling up to 10A of continuous current.
• Versatile Applications: Suitable for power supplies, audio amplifiers, motor control, and general-purpose switching.
• Fast Switching Speed: Ensures rapid and precise switching transitions.
• Durable Construction: Built to withstand demanding operating conditions.

Specifications:

• Transistor Type: PNP - Darlington
• Max Collector Current: 10A
• Max Collector-Emitter Breakdown Voltage: 100V
• Max Collector-Emitter Saturation Voltage: 3V
• Max Power Dissipation: 125W
• Mounting Type: Through Hole

Upgrade your electronic projects with the TIP147 PNP Power Transistor.

Datasheet
