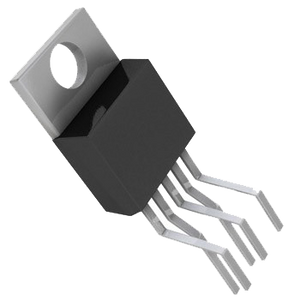

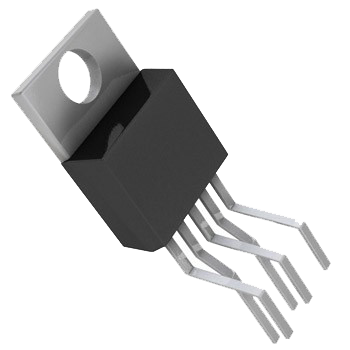

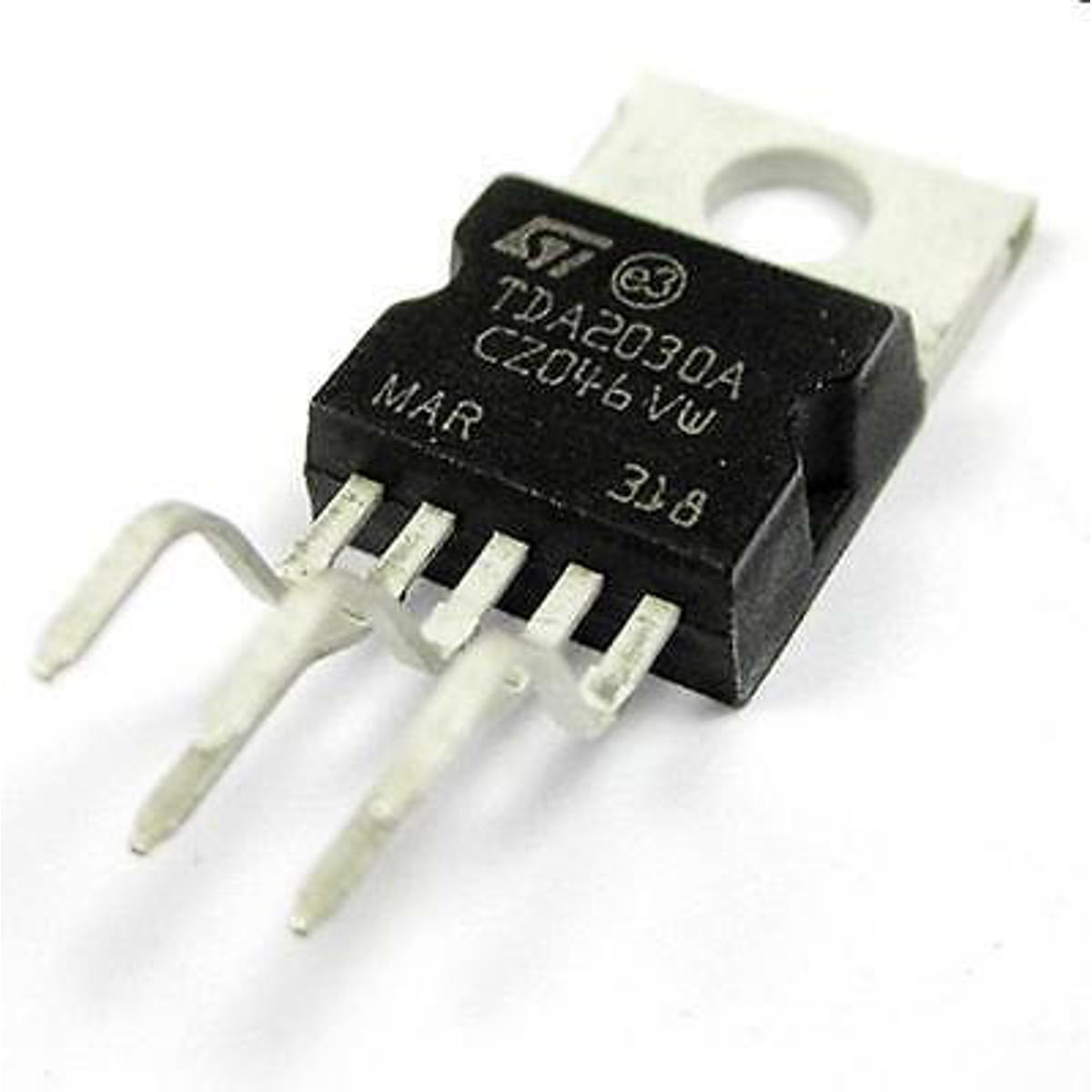

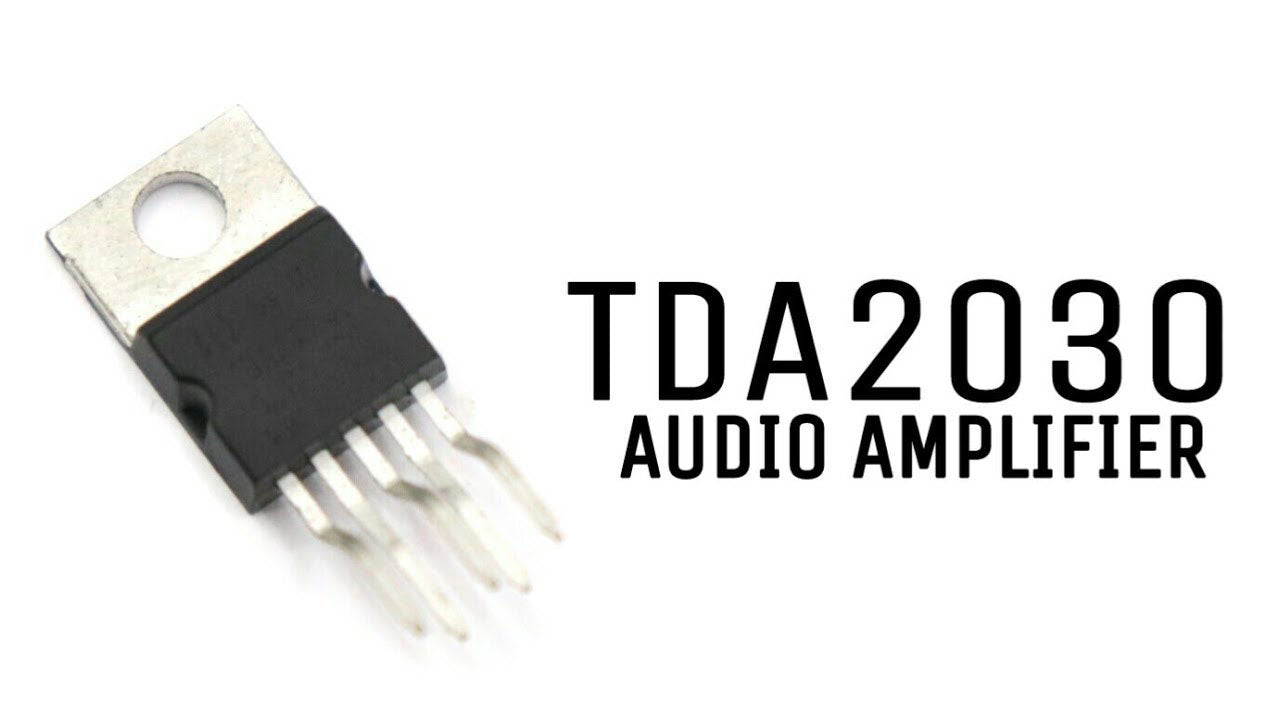

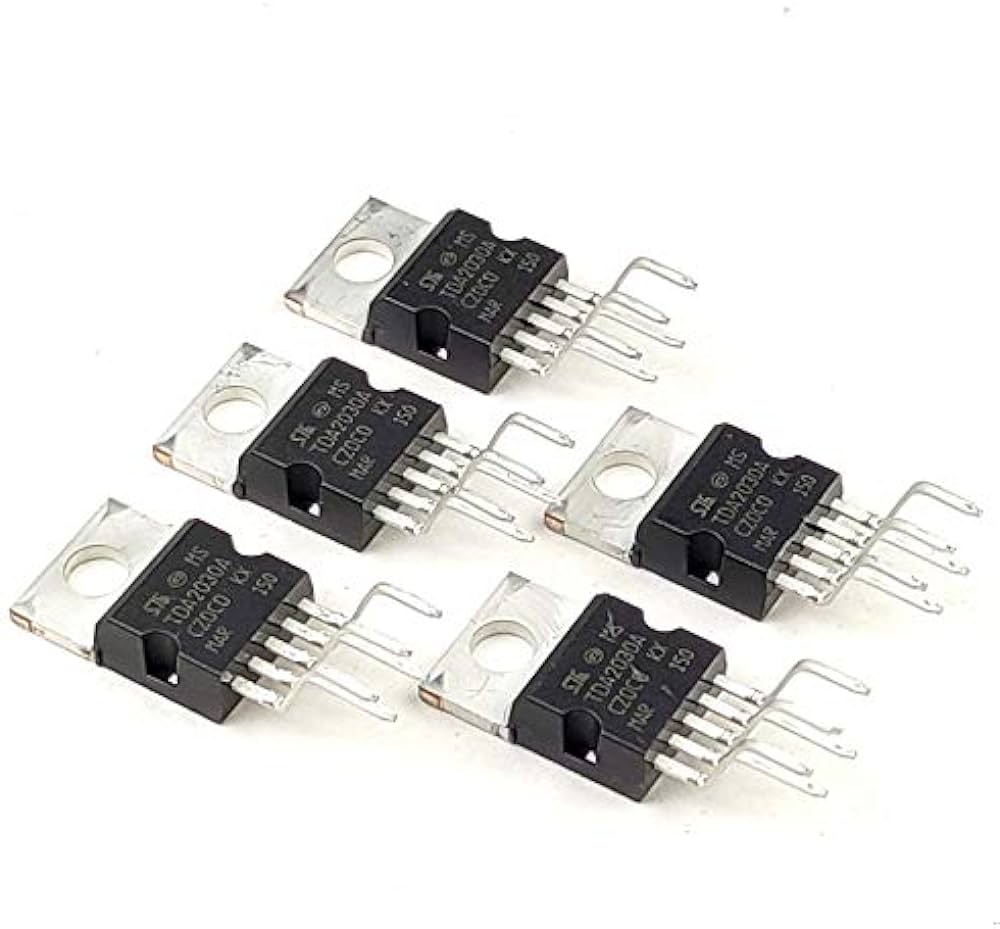

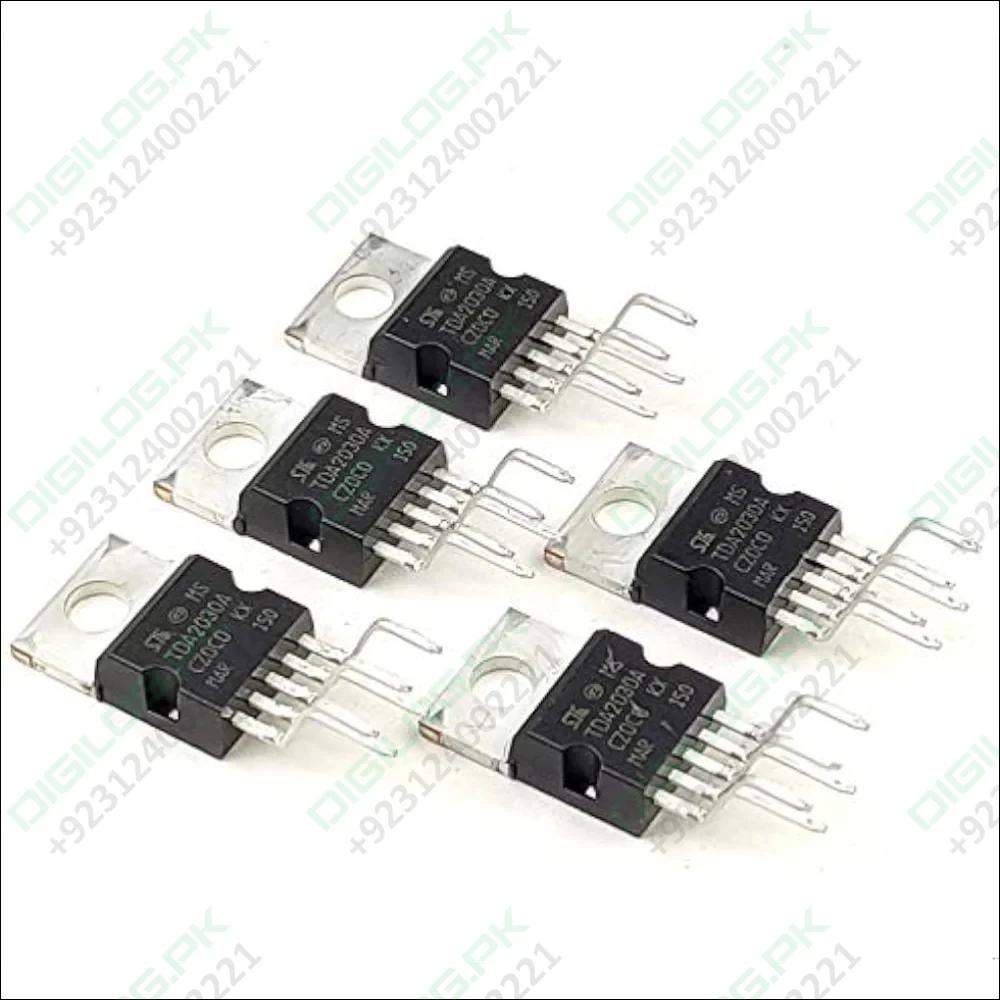

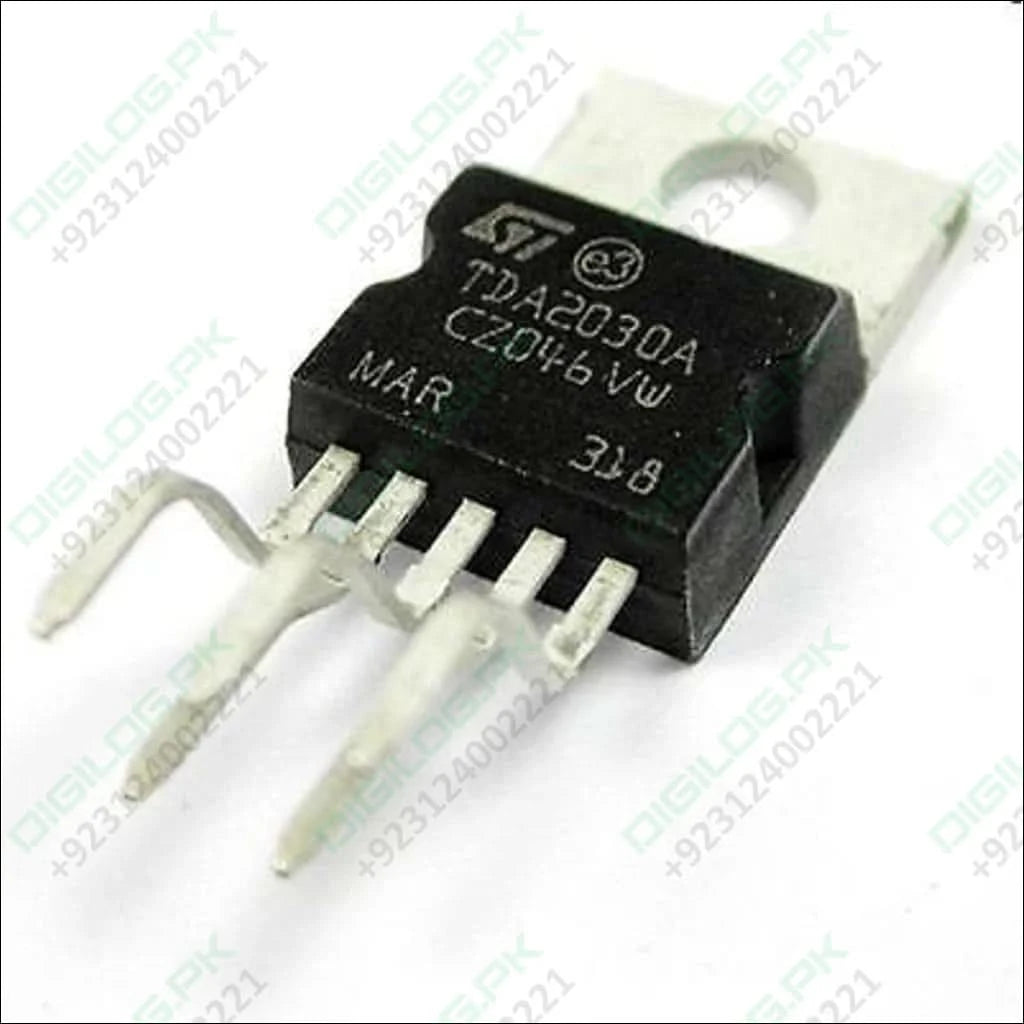

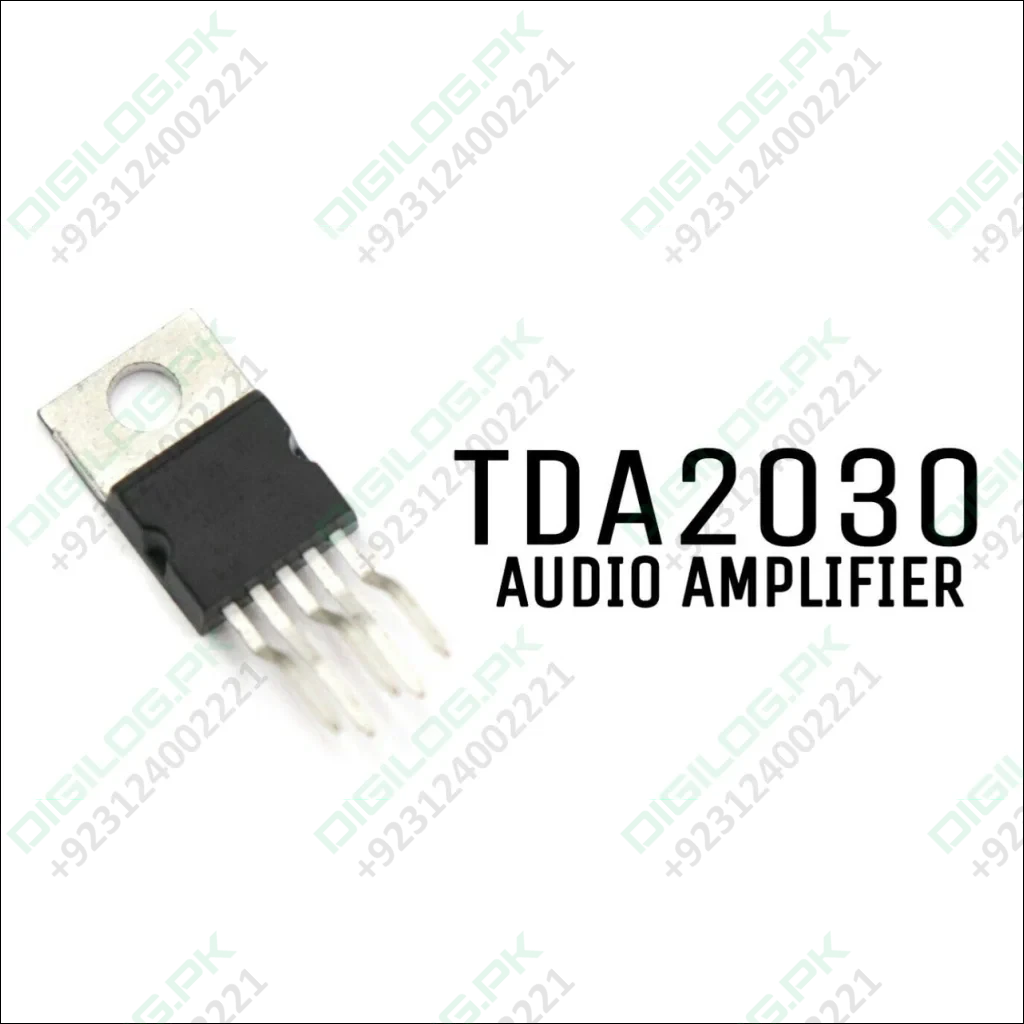

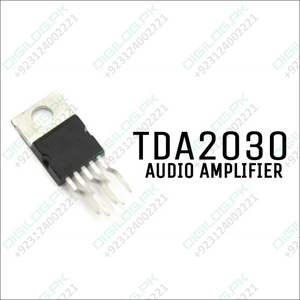

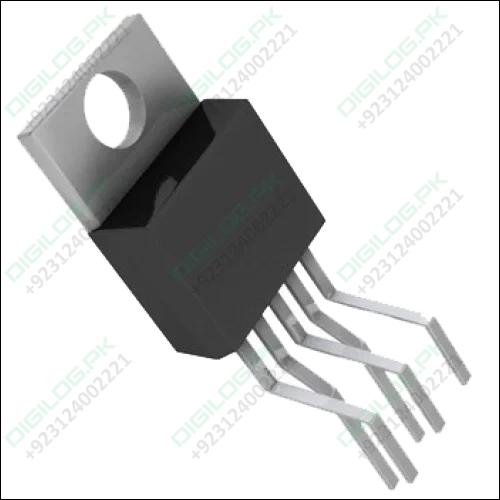

TDA2030A Hi Fi Amplifier IC
Overview
The TDA2030 is a monolithic integrated circuit in Pentawatt® package, intended for use as a low frequency class AB amplifier. Typically it provides
14W output power (d = 0.5%) at 14V/4W; at ± 14V or 28V, the guaranteed output power is 12W on a 4W load and 8W on a 8W (DIN45500). The TDA2030 provides high output current and has very low harmonic and cross-over distortion.
Further the device incorporates an original (andpatented) short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.
Specifications
| Family | TDA2030 |
| Minimum Single Supply Voltage | 12V |
| Typical Single Supply Voltage | 15V|18V|24V|28V |
| Maximum Single Supply Voltage | 36V |
| Maximum Operating Temperature | 150°C |
| Amplifier Type | Class-AB |
| Output Type | 1-Channel Mono |
| Maximum Load Resistance | 8Ohm |
| Supplier_Package | PENTAWATT |
| Maximum Quiescent Current | 60mA@±18V |
| Minimum Dual Supply Voltage | ±6V |
| Product Length | 10.4mm(Max) |
| Typical Dual Supply Voltage | ±9V|±12V|±15V |
| Maximum Dual Supply Voltage | ±18V |
| Total Harmonic Distortion Noise | 0.2%@4Ohm@12W |
| Maximum Input Bias Current | 2uA@±18V |
| Maximum Input Offset Voltage | 20mV@±18V |
| Typical Output Power x Channels @ Load | 18Wx1@4Ohm |
| Typical PSRR | 50dB |
| Typical Quiescent Current | 40mA@±18V |
| Maximum Power Dissipation | 20000mW |
| Rail to Rail | No |
| Minimum Operating Temperature | -40°C |
| Function | Speaker |
| Mounting | Through Hole |
| Packaging | Tube |
| Pin_Count | 5 |
| Product Width | 4.8mm(Max) |
| Product Height | 9.2mm |
| Power Supply Type | Single|Dual |
| Product Type | Audio Amplifier |
| Typical Voltage Gain | 90dB |
| Input Signal Type | Differential |
| Output Signal Type | Single |
Resources
Package include:
1x TDA2030A Hi Fi Amplifier IC
