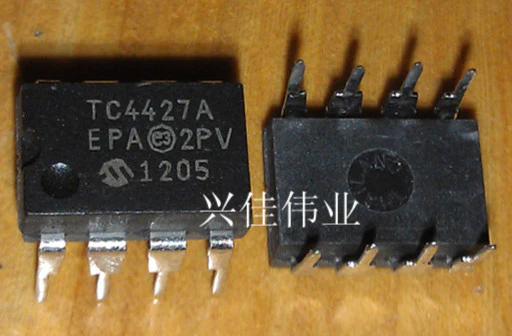

TC4427A Dual High-Speed MOSFET Driver IC

The TC4427A is a high-performance dual MOSFET driver designed for high-speed switching applications. This versatile IC is ideal for driving power MOSFETs in motor control, power supplies, and other high-frequency circuits.

Key Features:

• Dual high-speed MOSFET driver
• High peak output current: 1.5A
• Wide operating voltage range: 4.5V to 18V
• Fast rise and fall times
• Low propagation delay
• Non-inverting outputs
• Low supply current
• 8-pin DIP and SOIC packages available

Technical Specifications:

• Supply Voltage (VDD): 4.5V to 18V
• Peak Output Current: 1.5A
• Rise Time: 25ns (typical)
• Fall Time: 25ns (typical)
• Propagation Delay: 30ns (typical)
• Operating Temperature: -40°C to +125°C
• Package Type: 8-pin DIP/SOIC

Applications:

• Motor control circuits
• Switch-mode power supplies
• DC-DC converters
• PWM controllers
• High-frequency switching applications
• Power MOSFET gate drivers
