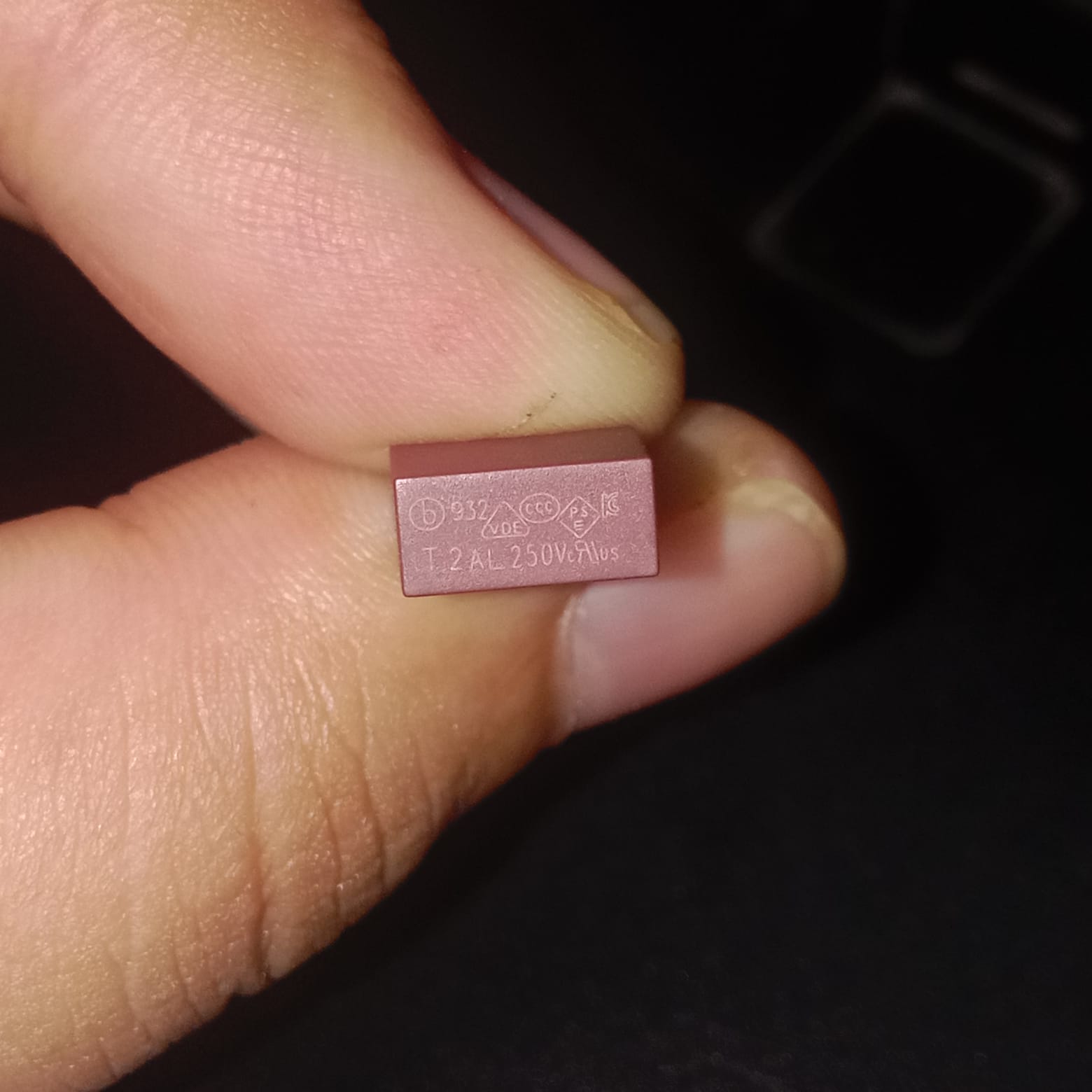

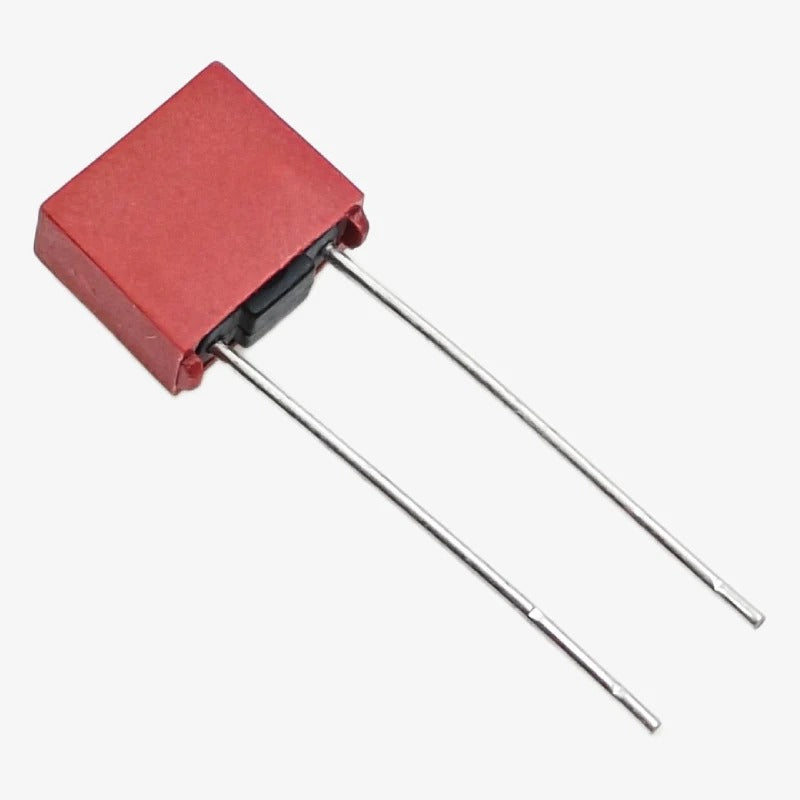

T2AL 250V Subminiature Radial Lead Fuse
Description:
This is a subminiature (chip-style) radial lead fuse, commonly used inside switch-mode power supplies, chargers, and small appliances for overcurrent protection. The "T" rating indicates a time-lag (slow-blow) fuse, designed to tolerate brief inrush current spikes without tripping, while still protecting the circuit against sustained overcurrent faults.
Key Specifications:
| Parameter | Value |
|---|---|
| Rated Current | 2A |
| Fuse Type | T (Time-lag / Slow-blow) |
| Rated Voltage | 250V AC |
| Package Style | Subminiature radial lead (through-hole) |
| Lead Type | Tin-plated wire leads |
Certifications/Markings:
VDE, CCC, PSE, KC — indicating compliance with European, Chinese, Japanese, and Korean safety standards respectively, confirming suitability for use in globally distributed electronics and power supplies.
Typical Applications:
- SMPS (switch-mode power supplies)
- Battery chargers and adapters
- Small household appliances
- Circuit boards requiring compact overcurrent protection
Package Includes:
- 1x T2AL 250V Subminiature Fuse
