T26B Digital Clamp Multimeter – 400A AC, Capacitance, Temperature
Pickup available at Digilog Electronics
Usually ready in 2 hours

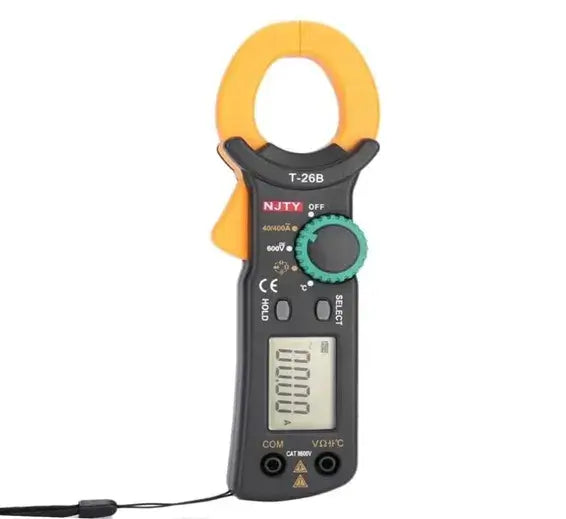

T26B Digital Clamp Multimeter – 400A AC, Capacitance, Temperature
The T26B is a slim clamp multimeter that combines a 400A AC current clamp with a full set of multimeter functions: voltage, resistance, capacitance, diode, continuity and temperature.
Its 30 mm jaw fits around household and panel wiring, and auto power-off with a low-battery warning keeps two AAA cells going for a long time. A handy single tool for home, lab and workshop.
Key Features
- ⚡ AC current 40A / 400A through a 30 mm jaw
- 🔧 600V AC and DC voltage
- 📏 Resistance 400Ω to 40MΩ and capacitance to 400nF
- 🌡️ Temperature −30 to 1000℃ range
- ✅ Diode test, continuity buzzer (<50Ω), data hold, auto power-off
Technical Specifications
| Model | T-26B |
|---|---|
| AC Current | 40A / 400A, ±(1.5%+5) |
| DC Voltage | 600V, ±(1.5%+5) |
| AC Voltage | 600V, ±(1.5%+5) |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ |
| Capacitance | 4nF / 40nF / 400nF, ±(4%+5) |
| Temperature | −30 to 1000℃ |
| Continuity | buzzer below 50Ω |
| Jaw opening | 30 mm |
| Display | 1999 counts |
| Power | 2 × 1.5V AAA (not included) |
| Size | 185 × 70 × 30 mm |
| Weight | 135 g |
What's in the Box
- 1 × T26B digital clamp meter
