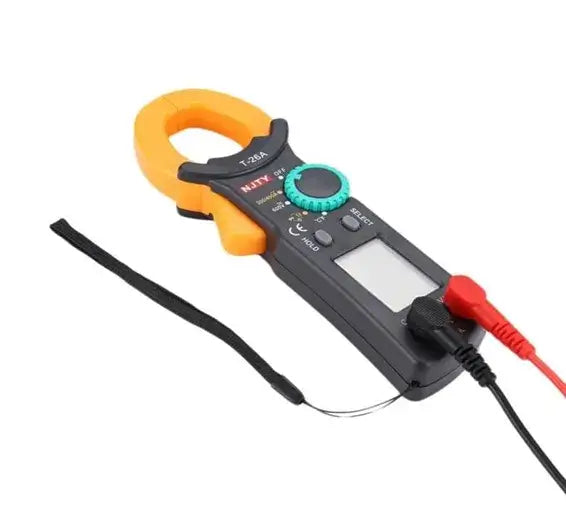

T26A Digital Clamp Meter – 400A AC, 600V AC/DC, Live Wire Test
Pickup available at Digilog Electronics
Usually ready in 2 hours
T26A Digital Clamp Meter – 400A AC, 600V AC/DC, Live Wire Test
The T26A clamp meter reads AC current up to 400A and AC/DC voltage up to 600V, with a live-wire test that lights an LED when you touch the phase wire. Useful for electricians who want to confirm the phase before working.
It also covers resistance in six ranges, diode, continuity and temperature, and runs on two AAA cells with auto power-off.
Key Features
- ⚡ AC current 200A / 400A through a 30 mm jaw
- 🔧 600V DC and AC voltage
- 💡 Live wire test with LED indication
- 📏 Resistance 200Ω to 20MΩ, diode and continuity buzzer
- 🌡️ Temperature −30 to 1000℃ range, data hold, auto power-off
Technical Specifications
| Model | T-26A |
|---|---|
| AC Current | 200A / 400A, ±(2.5%+5) |
| DC Voltage | 600V, ±(1%+5) |
| AC Voltage | 600V, ±(1.5%+5) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ, ±(1.2%+5) |
| Temperature | −30 to 1000℃ |
| Continuity | buzzer below 50Ω |
| Jaw opening | 30 mm |
| Power | 2 × 1.5V AAA (not included) |
What's in the Box
- 1 × T26A digital clamp meter
