Description

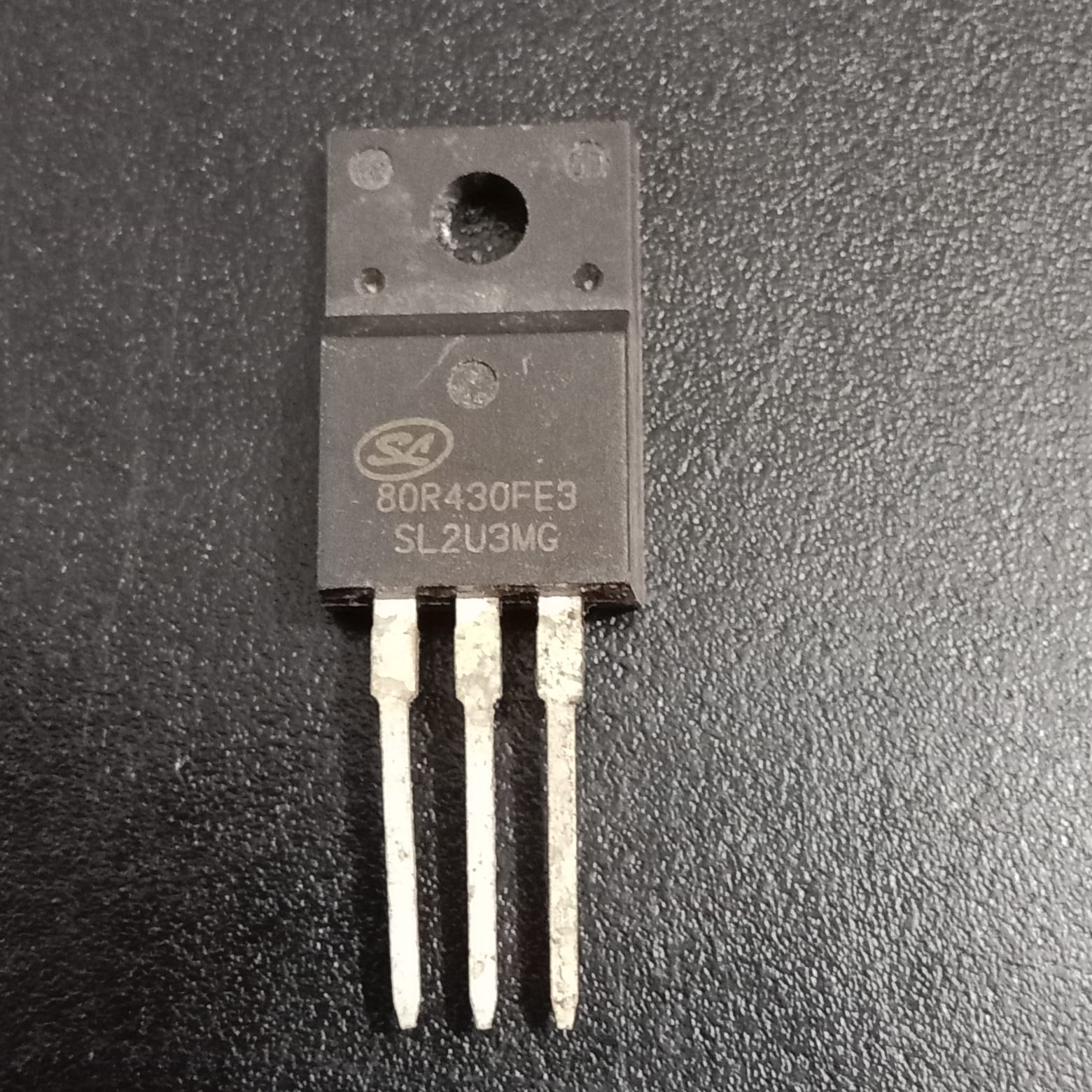

Marked "80R430FE3" on the package with the Silan ("SL") logo, this is Hangzhou Silan Microelectronics' SVS80R430FE3, confirmed directly against Silan's own official datasheet (part of the SVS80R430F(FJH)(D)(FJD)(L8A)(S)E3 family). Silan's own ordering table confirms the marking "80R430FE3" corresponds to part SVS80R430FE3, packaged halogen-free in a tube — an exact match to your part. The naming follows Silan's standard convention where the numeric code indicates rated voltage and typical on-resistance (800V class, ~430mΩ RDS(ON)).

This is a super junction MOSFET, meaning it uses an advanced charge-balance cell structure to achieve significantly lower on-resistance for a given voltage rating compared to conventional planar MOSFETs — well suited for high-voltage offline switching applications where efficiency and low conduction loss matter.

Key Specifications (per Silan's SVS80R430 family datasheet)

• Type: N-Channel Enhancement Mode Super Junction Power MOSFET
• Manufacturer: Hangzhou Silan Microelectronics
• Package Marking: 80R430FE3
• Package: TO-220F-3L, isolated, 3-pin, through-hole
• Drain-Source Voltage (VDS): 800V (indicated by "80" in part number)
• RDS(ON), typical: ~430mΩ (indicated by "430" in part number)
• Gate-Source Voltage (VGS): Static: -20V to +20V
• Compliance: Halogen-free

Common Applications

• Offline switch-mode power supplies (SMPS)
• LED lighting drivers
• Fast charger / adapter applications
• Industrial power supplies with high or unstable input voltages

Package Includes

• 1 x Silan SVS80R430FE3 N-Channel Super Junction MOSFET (TO-220F-3L)
