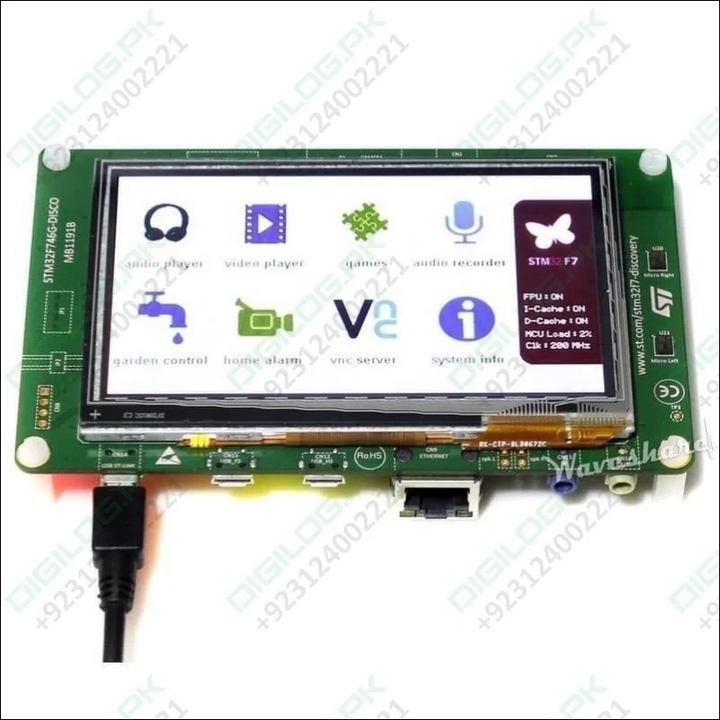

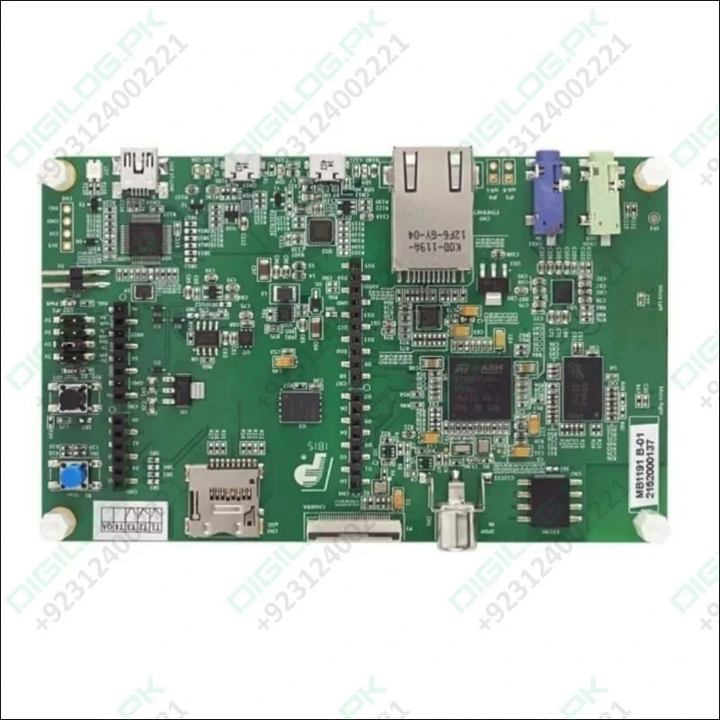

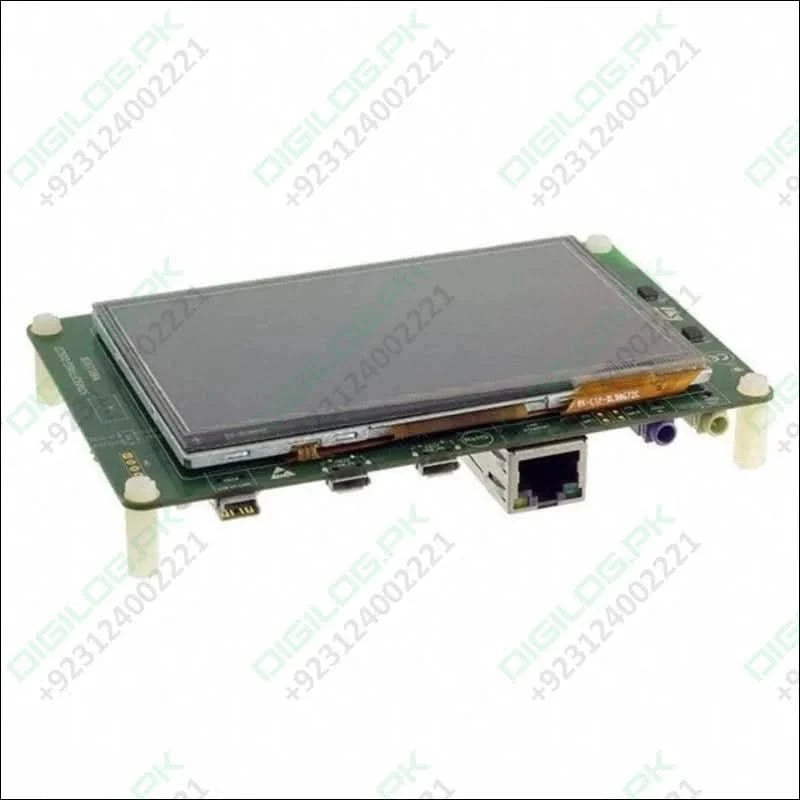

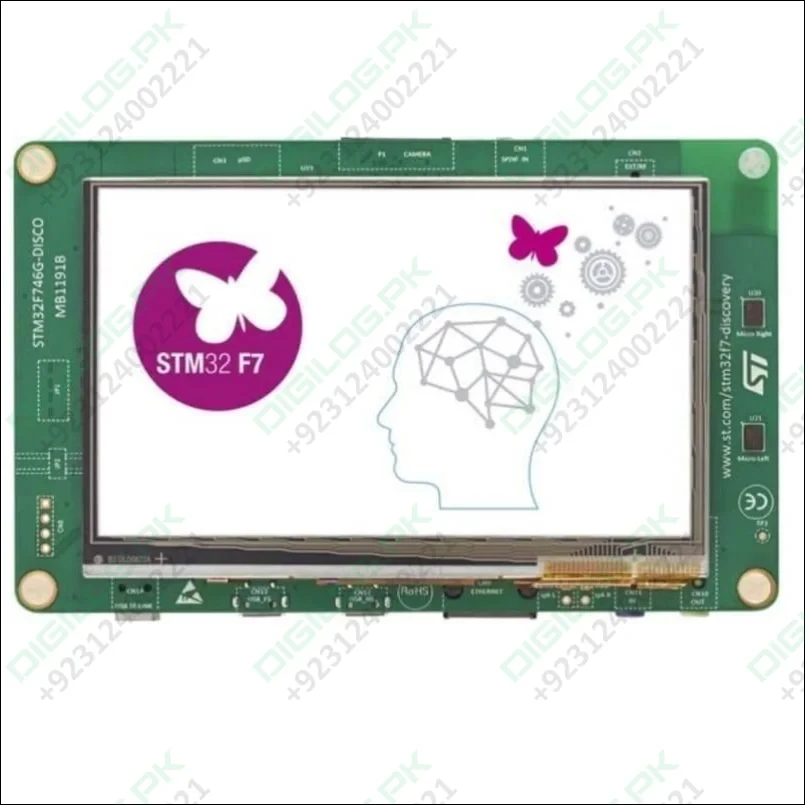

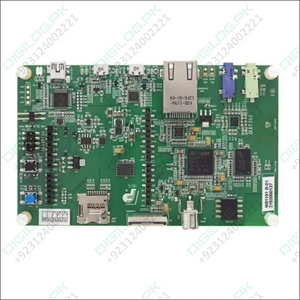

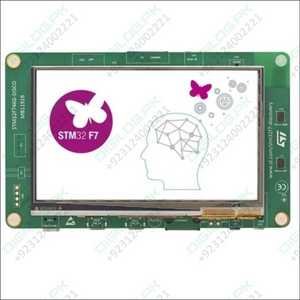

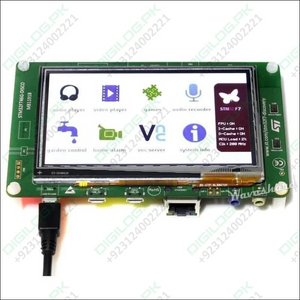

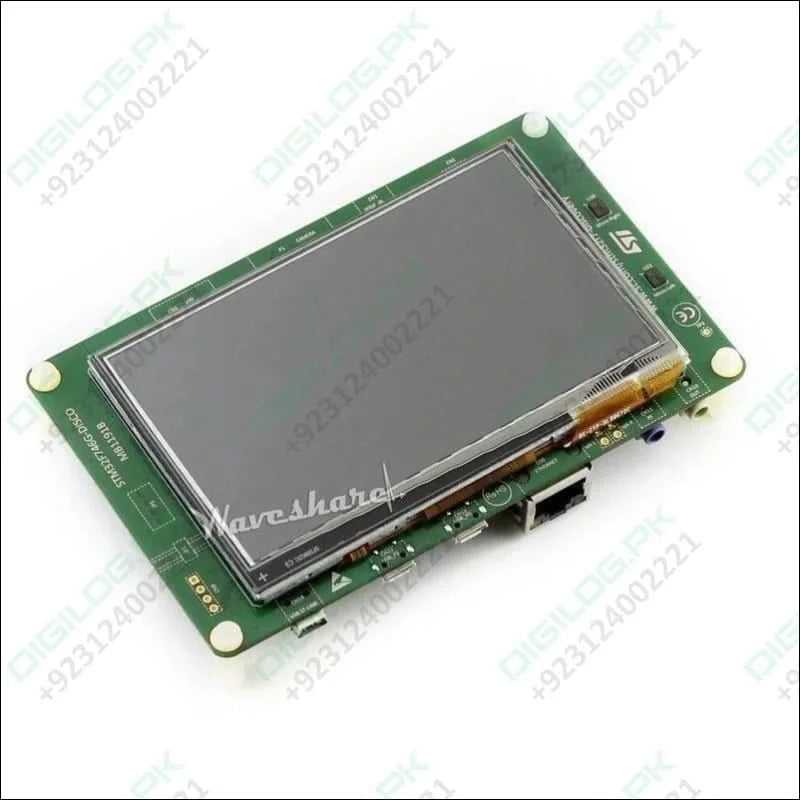

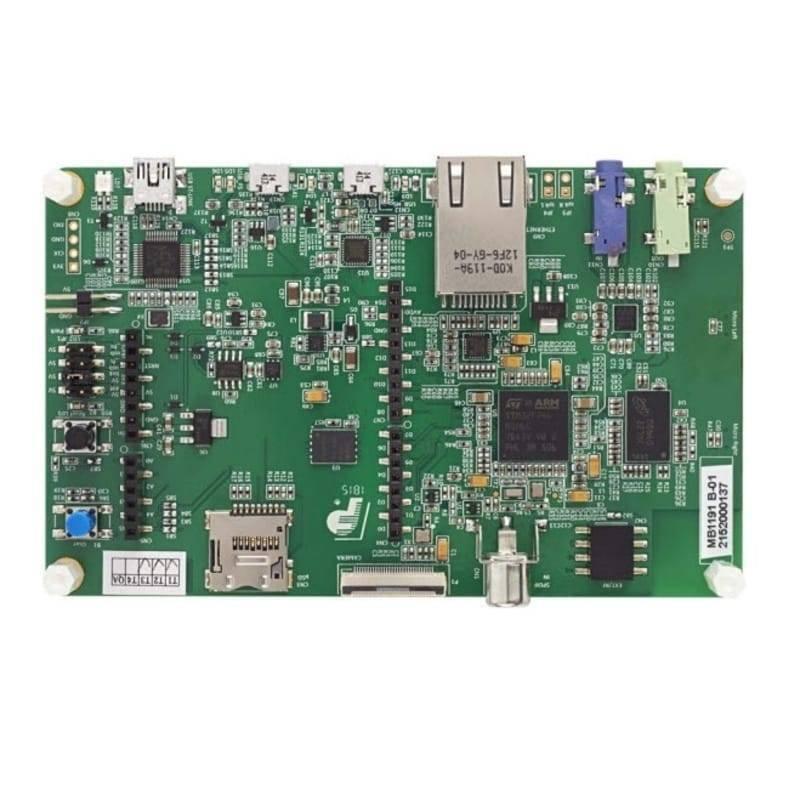

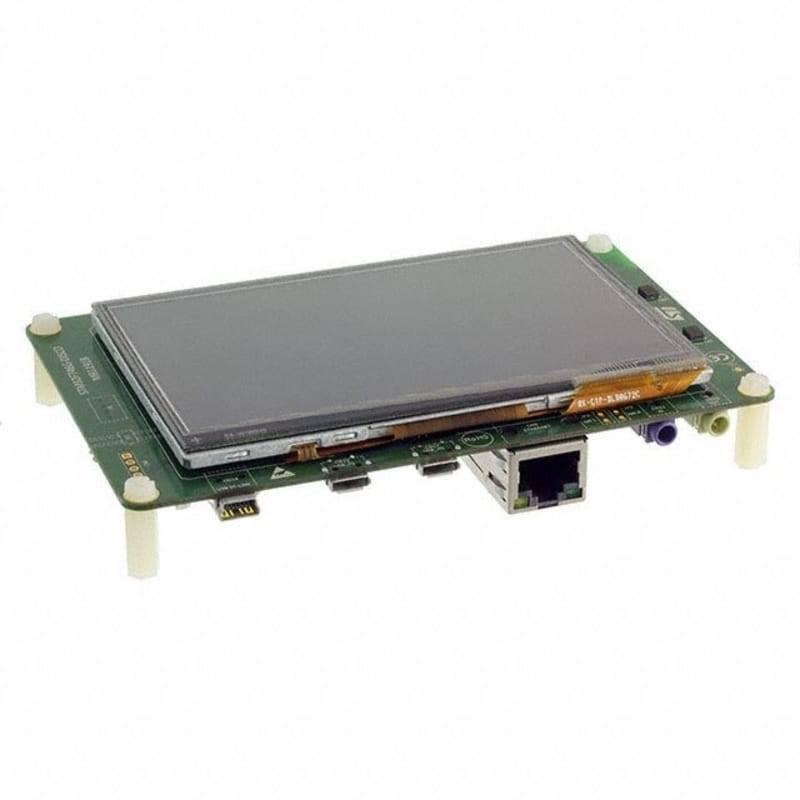

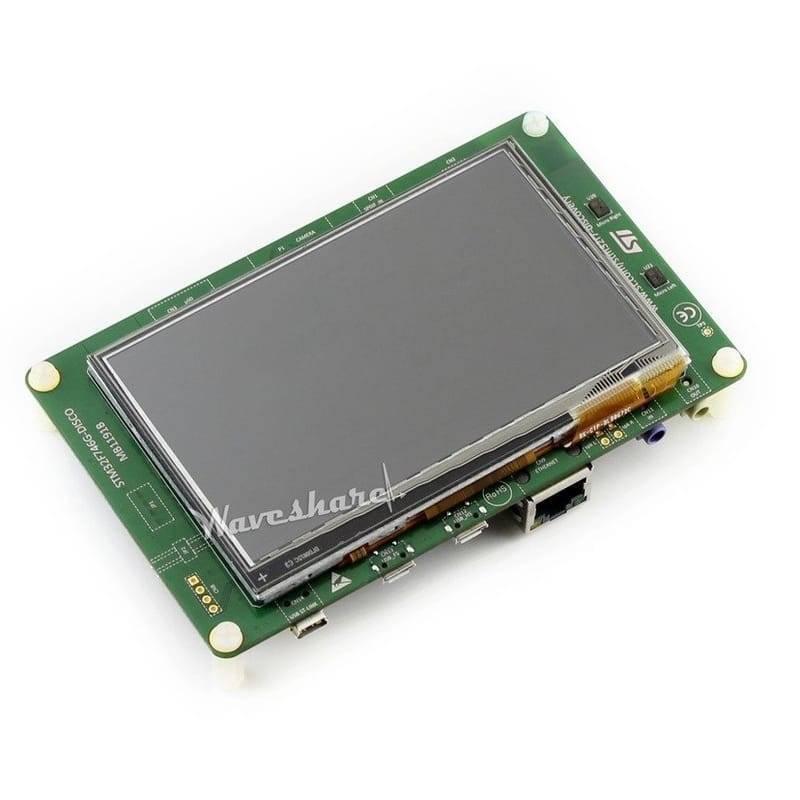

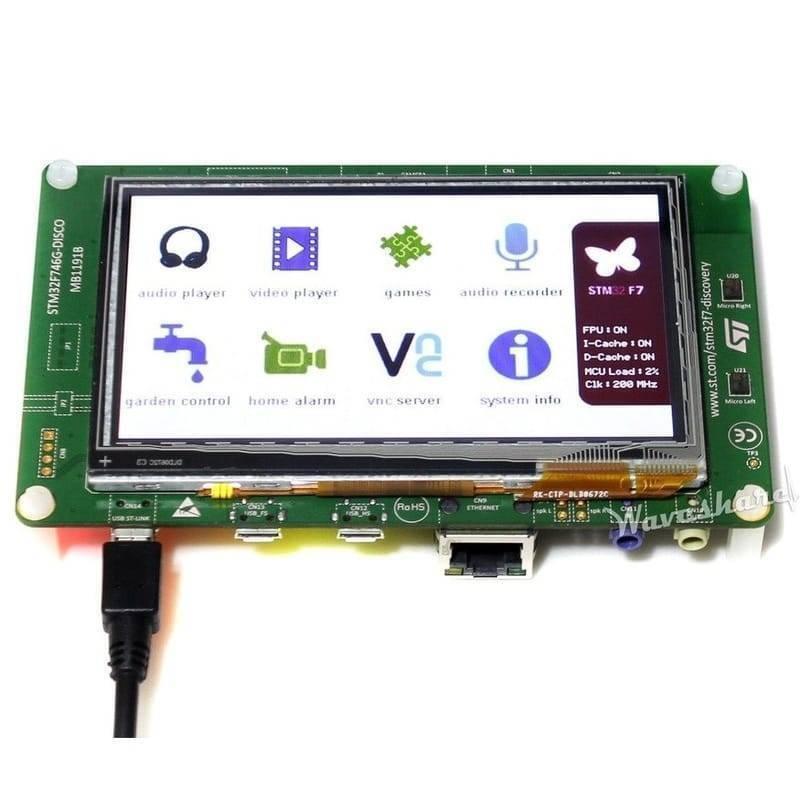

The 32F746GDISCOVERY Discovery kit is a complete demonstration and development platform for STMicroelectronics Arm^® Cortex^®-M7-core-based STM32F746NG (STM32F746NGH6 order code) microcontroller. The 32F746G Disco kit is used as a reference design for user application development before porting to the final product, thus simplifying the application development. The discovery board kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features. The ARDUINO connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards. The 32F746GDISCOVERY board is provided with the STM32CubeF7 MCU package, which offers an STM32 comprehensive software HAL library as well as various software examples.

Features Of STM32F746G DISCO:

• 32F746GDISCOVERY, Discovery kit with STM32F746NG MCU
• The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on ARM Cortex-M7 core.
• The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.
• The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

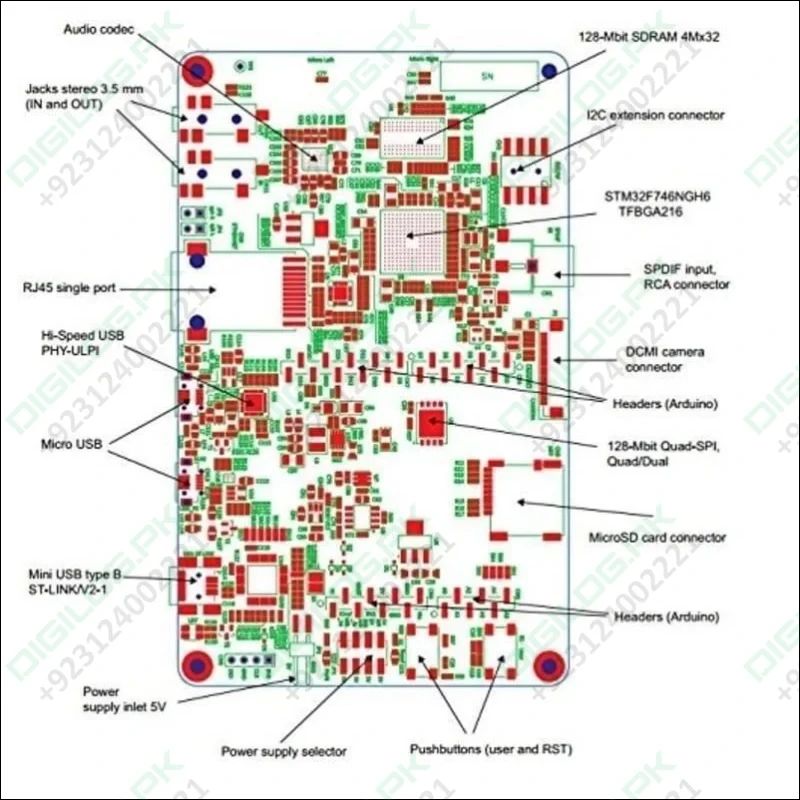

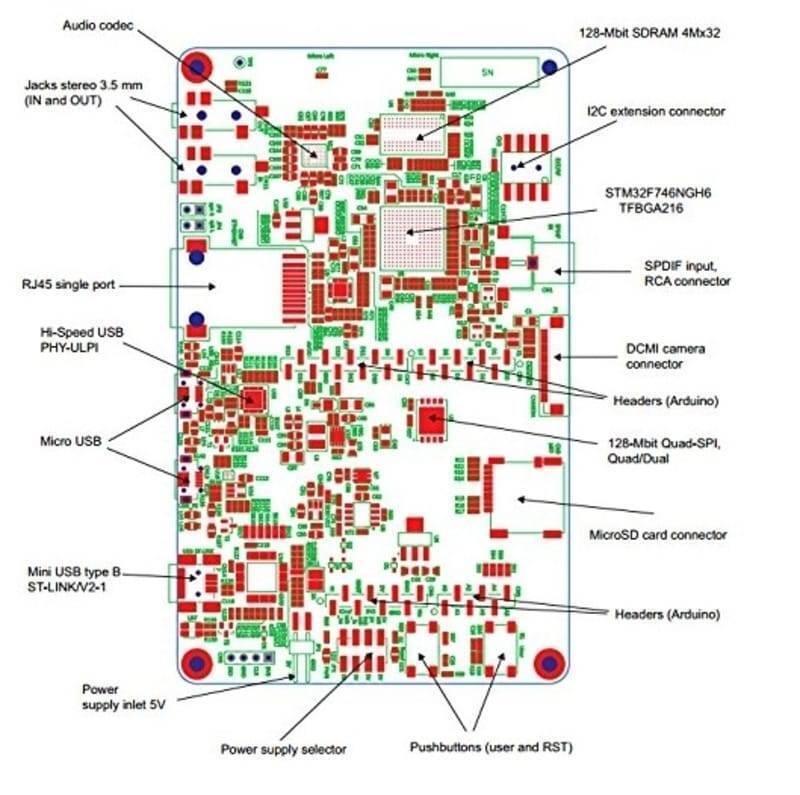

Specifications Of STM32F746G Discovery:

1. STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
2. On-board ST-LINKN2-1 supporting USB re-enumeration capability
3. Mbed-enabled (mbed.org)
4. USB functions: virtual COM poll, mass storage, debug pon
5. 4 3-inch 4801272 colour LCD-TFT with capacitive touch screen
6. Camera connector
7. SAI audio codec
8. Audio line-in and line out jack
9. Stereo speaker outputs
10. Two ST MEMS microphones
11. SPDIF RCA input connector
12. Two pushbuttons (user and reset)
13. 128-MOit Quad-SPI Flash memory
14. 128-MOit SORAM (64 Mbits accessible)
15. Connector for microSD card
16. RF-EEPROM daughterboard connector
17. USB OTG HS with Micro-AB connectors
18. USB OTG FS with Micro-AB connectors
19. Ethernet connector compliant with IEEE-802 3-2002
20. Five power supply options
21. ST LINK/V2-1
22. USB FS connector
23. USB HS connector
24. VIN from Arduino connector
25. External 5 V from the connector
26. Power supply output for external applications: 33 V or 5 V
27. Arduino Uno V3 connectors
28. Comprehensive free software including a variety of examples, pan of STM32Cube package
29. Supported by a wide choice of integrated development environments

 STM32F746G-DlSCO Datasheet

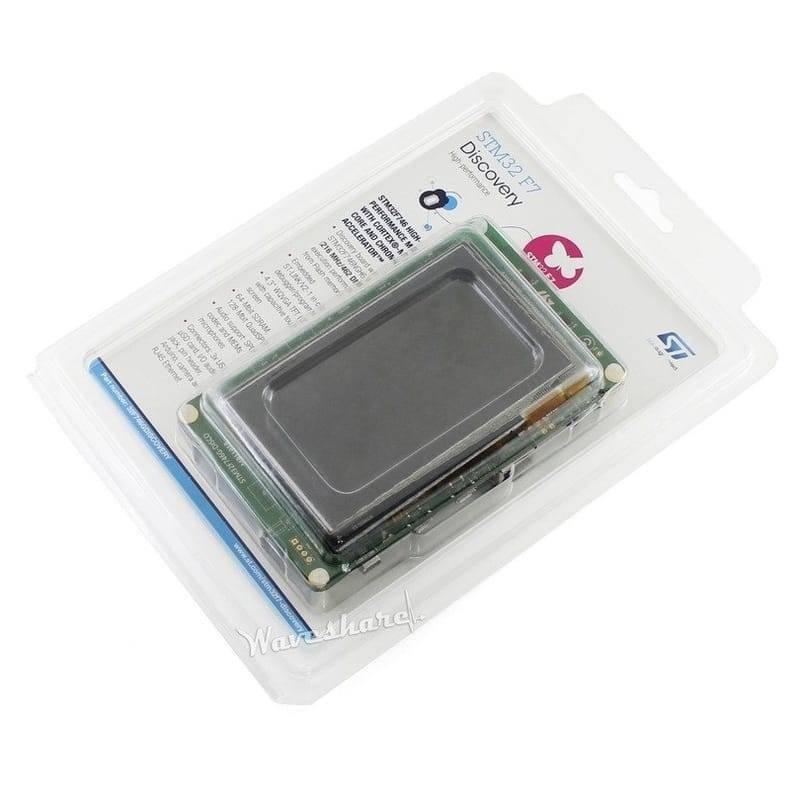

Package Includes:

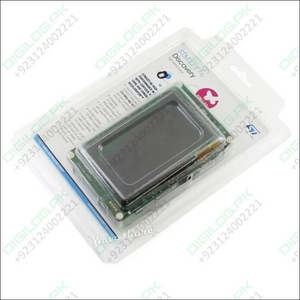

• 1 x STM32F746G DISCO Discovery Board Kit
