Description

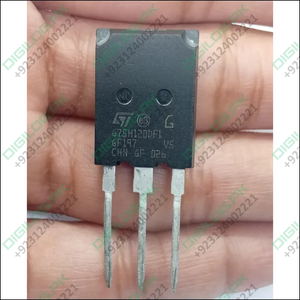

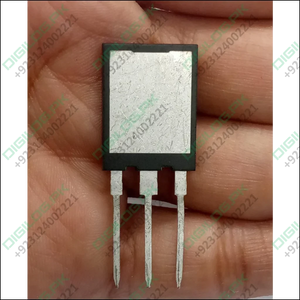

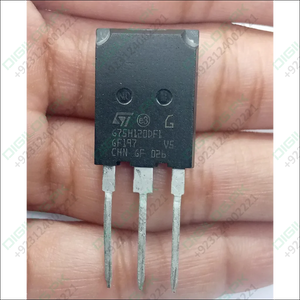

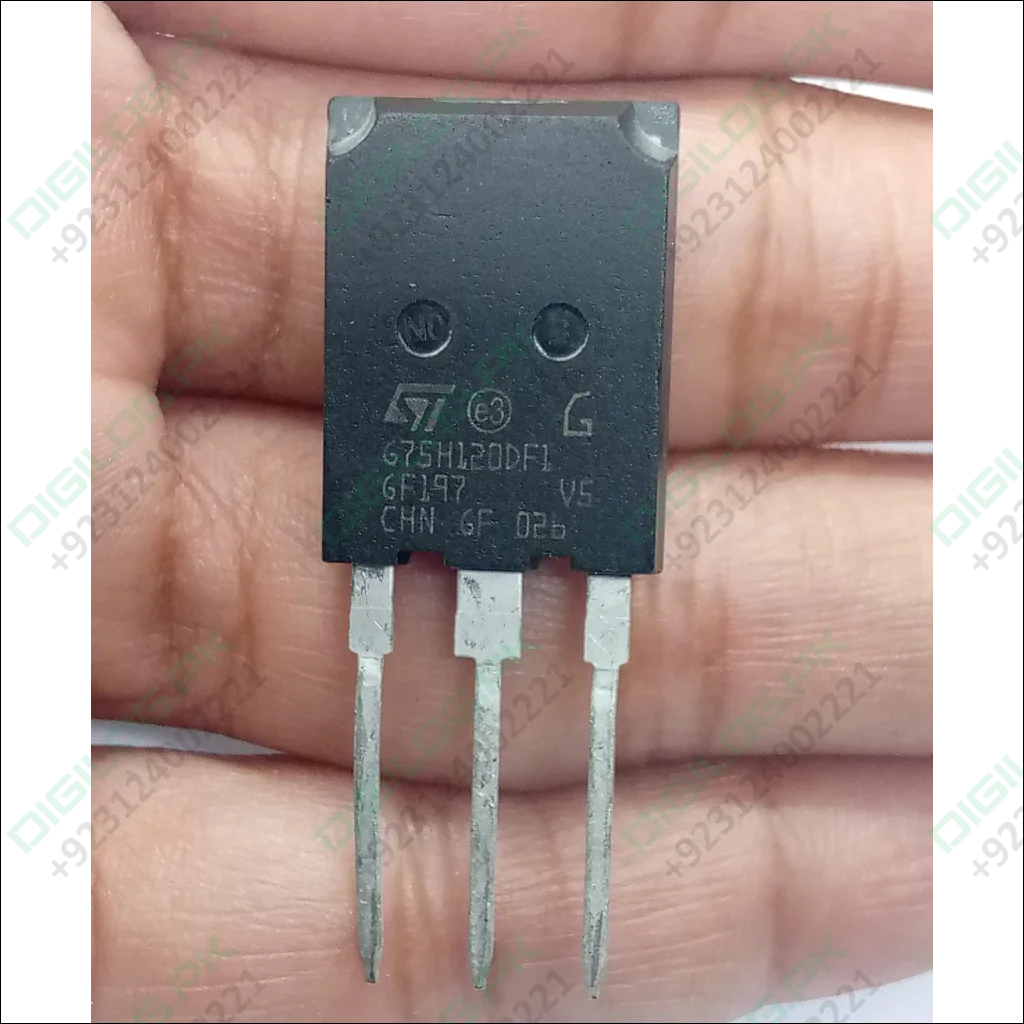

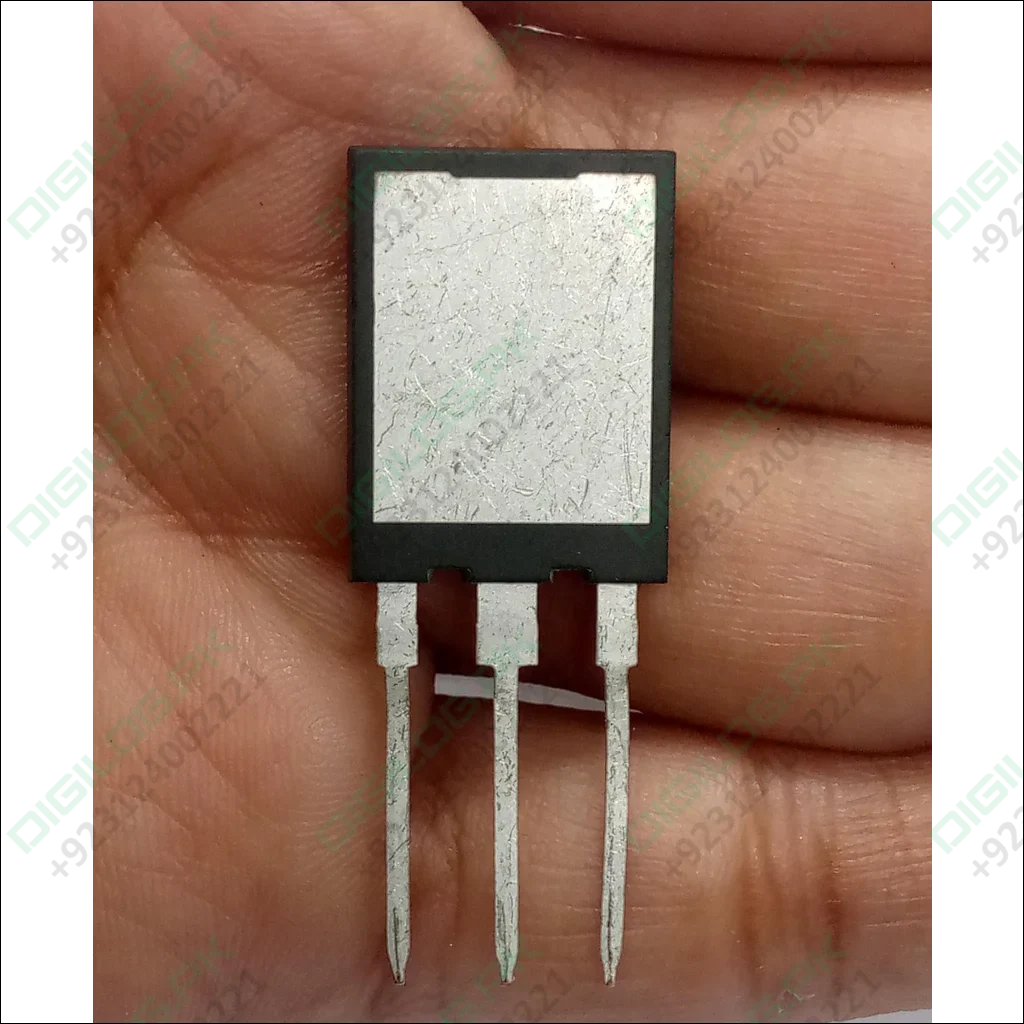

G75H120DF1 IGBT - 75A 1200V High-Efficiency Power Transistor
The G75H120DF1 is a high-performance 75A, 1200V (IGBT) designed for efficient power conversion and high-speed switching applications. It is widely used in motor drives, inverters, power conversion systems, and industrial automation.
Key Features
- Voltage rating: 1200V
- Current rating: 75A continuous
- Low saturation voltage (Vce(sat)) for improved efficiency
- Optimized for high-speed switching applications
- Robust TO-247 package for better thermal performance
- High durability for industrial and power electronics applications
Applications
- Motor drive systems
- Power inverters
- Uninterruptible Power Supplies (UPS)
- Renewable energy systems
- Industrial automation
- High-frequency power conversion circuits
Related Products
Frequently Asked Questions
What is the voltage and current rating of the G75H120DF1 IGBT?
The G75H120DF1 is rated for 75A continuous current and 1200V maximum voltage.
Is this IGBT suitable for motor drives?
Yes, it is designed for industrial motor drives, power inverters, and high-efficiency energy conversion systems.
What is the package type of this IGBT?
The G75H120DF1 comes in a TO-247 package, which provides excellent thermal performance and easy integration into power circuits.
Package Includes
- 1x G75H120DF1 IGBT 75A 1200V
