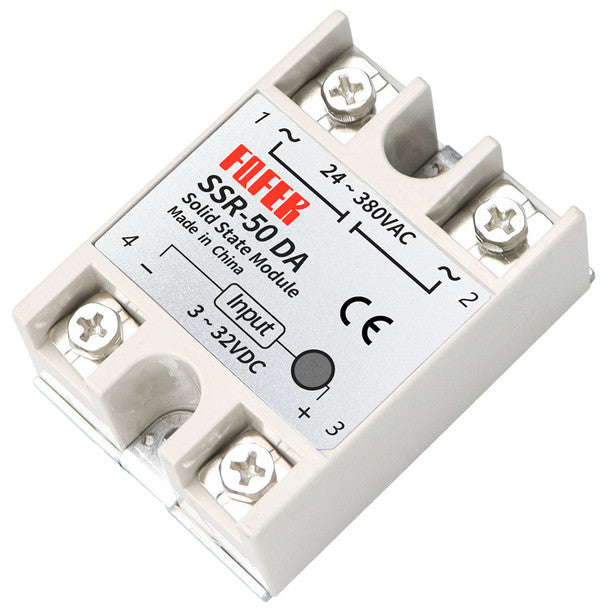

SSR-50DA DC-AC 24-380V Solid State Relay - a white rectangular module with four screw terminals and a top label showing input and output specifications.

SSR-50DA DC-AC 24-380V Solid State Relay - a control circuit connected to pins 3 and 4 and an output circuit connected to pins 1 and 2.

SSR-50DA DC-AC 24-380V Solid State Relay - a white rectangular module with four screw terminals and a top label showing input and output specifications.

SSR-50DA DC-AC 24-380V Solid State Relay - a control circuit connected to pins 3 and 4 and an output circuit connected to pins 1 and 2.

SSR-50DA DC-AC 24-380V Solid State Relay

Rs 1,100

SKU: b796

Pickup available at Digilog Electronics

Usually ready in 2 hours

SSR-50DA DC-AC 24-380V Solid State Relay - a white rectangular module with four screw terminals and a top label showing input and output specifications.

SSR-50DA DC-AC 24-380V Solid State Relay

Rs 1,100

Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.

Main Application:

Industrial automation installment
Computer periphery connection
AC motor control
Automatic fire control and security system
Street light,signal light,traffic light,etc

Specification

Load Current:	50A
Load Voltage:	24~380VAC
Control Voltage:	3~32VDC
Control Current:	3~25MA
On Voltage:	≤ 1.5VAC
Off Leakage Current:	≤4MA
On-off Time:	≤ 10MS
Dielectric Strength:	2500VAC
Insulation Resistance:	100M Ω /500VDC
Ambient Temperature:	-25~+75°C
Work instruction:	LED
Weight	90g

Package Includes

1 x SSR-50DA DC-AC 24-380V Solid State Relay
