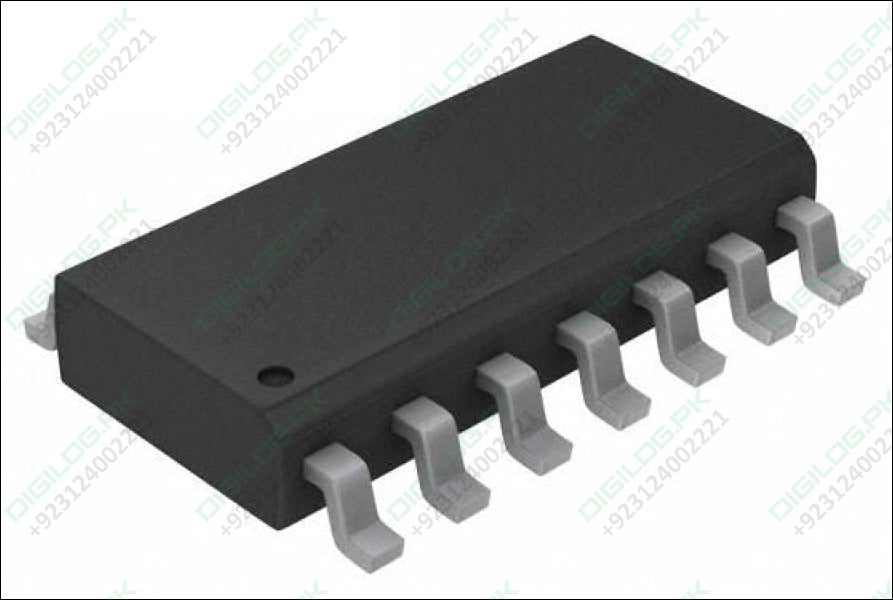

The SMD SN74LS32D is a quad 2-input positive-OR gate IC in SOP-14 (SOIC-14) surface-mount package, designed for digital logic applications in Pakistan. This TTL logic integrated circuit contains four independent 2-input OR gates, providing reliable logic operations for digital circuits, microcontroller interfacing, and general-purpose logic design. The SMD package enables compact PCB layouts and automated assembly for professional electronics manufacturing and prototyping.

Key Features

• Quad 2-input positive-OR gates provide four independent logic gates in one IC
• SOP-14 (SOIC-14) surface-mount package for compact PCB design and automated assembly
• TTL-compatible inputs and outputs work with standard 5V logic circuits in Pakistan
• Low power consumption and high noise immunity for reliable operation
• Wide operating voltage range suitable for various digital logic applications
• Fast propagation delay ensures quick response in high-speed circuits
• Industry-standard pinout compatible with 74LS32 logic family
• RoHS compliant and suitable for lead-free soldering processes

Applications & Use Cases

• Digital logic circuits and Boolean logic implementation in Pakistan
• Microcontroller and microprocessor interfacing and signal conditioning
• Data multiplexing and signal routing in digital systems
• Control signal generation and logic level conversion circuits
• Educational electronics and digital logic learning projects
• Industrial automation and control system logic circuits
• Address decoding and chip select logic in memory systems

Technical Specifications

• Part Number: SN74LS32D (Texas Instruments)
• Function: Quad 2-Input Positive-OR Gate
• Number of Gates: 4 independent OR gates
• Logic Family: TTL (74LS series - Low-power Schottky)
• Package: SOP-14 / SOIC-14 (Surface Mount)
• Supply Voltage: 5V DC (4.75V to 5.25V typical)
• Input Logic Levels: TTL compatible (VIH ≥2.0V, VIL ≤0.8V)
• Output Logic Levels: TTL compatible (VOH ≥2.7V, VOL ≤0.5V)
• Propagation Delay: Typical 15ns
• Operating Temperature: 0°C to +70°C (commercial grade)
• Pin Count: 14 pins
• Mounting: Surface mount (SMD/SMT)
• Weight: Approx. 0.2g

Why Buy from Digilog.pk?

We provide authentic SN74LS32D and 74LS series logic ICs in Pakistan at competitive prices. Fast delivery to Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and across Pakistan with technical support for your digital electronics and logic circuit projects.
