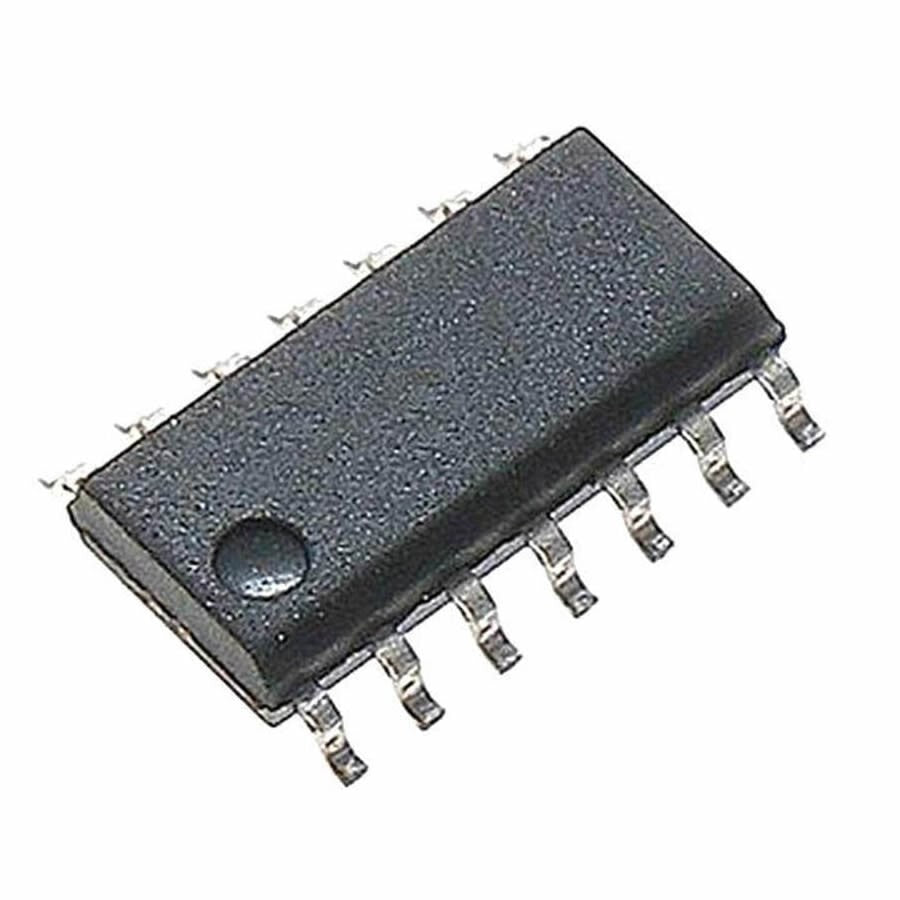

The SMD SN74HC95 is a 4-bit parallel-access shift register IC in SOP-14 (SOIC-14) surface-mount package, designed for data storage and serial-to-parallel conversion applications in Pakistan. This CMOS logic integrated circuit features both serial and parallel data inputs with parallel outputs, providing reliable data shifting operations for digital communication, LED displays, and control systems. The SMD package enables compact PCB layouts and automated assembly for professional electronics manufacturing and prototyping.

Key Features

• 4-bit parallel-access shift register with serial and parallel data inputs
• SOP-14 (SOIC-14) surface-mount package for compact PCB design and automated assembly
• Parallel load capability for fast data loading and serial shifting
• CMOS technology offers low power consumption and wide voltage range operation
• Wide operating voltage range 2V to 6V suitable for 3.3V and 5V logic systems
• Separate clock inputs for shift and parallel load operations
• Industry-standard pinout compatible with 74HC95 and 7495 logic families
• RoHS compliant and suitable for lead-free soldering processes

Applications & Use Cases

• Serial-to-parallel and parallel-to-serial data conversion in Pakistan
• LED matrix displays and multiplexed display drivers
• Data storage and temporary buffer registers
• Digital communication and data transmission systems
• Microcontroller I/O expansion and port expanders
• Educational electronics and digital logic learning projects
• Industrial control systems and automation circuits

Technical Specifications

• Part Number: SN74HC95 (Texas Instruments)
• Function: 4-Bit Parallel-Access Shift Register
• Register Type: Shift register with parallel load capability
• Data Inputs: Serial input and 4-bit parallel inputs
• Outputs: 4-bit parallel outputs
• Clock Inputs: Separate shift clock and parallel load clock
• Logic Family: CMOS (74HC series - High-speed CMOS)
• Package: SOP-14 / SOIC-14 (Surface Mount)
• Supply Voltage: 2V to 6V DC (3.3V and 5V compatible)
• Input Logic Levels: CMOS compatible (VIH ≥70% VCC, VIL ≤30% VCC)
• Output Logic Levels: CMOS compatible (VOH ≥VCC-0.1V, VOL ≤0.1V)
• Maximum Clock Frequency: 25MHz at 5V
• Operating Temperature: -40°C to +85°C (industrial grade)
• Pin Count: 14 pins
• Mounting: Surface mount (SMD/SMT)
• Weight: Approx. 0.2g

Why Buy from Digilog.pk?

We provide authentic SN74HC95 and 74HC series shift register ICs in Pakistan at competitive prices. Fast delivery to Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and across Pakistan with technical support for your digital data conversion and register projects.
