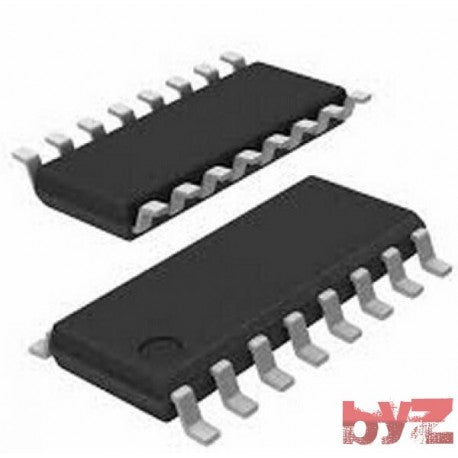

The SMD SN74HC85 is a 4-bit magnitude comparator IC in SOP-16 (SOIC-16) surface-mount package, designed for digital comparison and arithmetic logic applications in Pakistan. This CMOS logic integrated circuit compares two 4-bit binary or BCD numbers and provides three outputs indicating whether A is greater than, equal to, or less than B. Perfect for digital systems requiring number comparison, sorting algorithms, and control logic applications.

Key Features

• 4-bit magnitude comparator compares two 4-bit binary or BCD numbers
• SOP-16 (SOIC-16) surface-mount package for compact PCB design and automated assembly
• Three comparison outputs: A>B, A=B, A
• CMOS technology offers low power consumption and wide voltage range operation
• Wide operating voltage range 2V to 6V suitable for 3.3V and 5V logic systems
• Cascading inputs allow expansion to compare numbers larger than 4 bits
• Industry-standard pinout compatible with 74HC85 and 7485 logic families
• RoHS compliant and suitable for lead-free soldering processes

Applications & Use Cases

• Digital arithmetic and comparison circuits in Pakistan
• Microcontroller and microprocessor arithmetic logic units (ALU)
• Sorting and ranking algorithms in digital systems
• Priority encoders and control logic circuits
• Digital instrumentation and measurement comparison
• Educational electronics and digital logic learning projects
• Industrial control systems requiring numeric comparison

Technical Specifications

• Part Number: SN74HC85 (Texas Instruments)
• Function: 4-Bit Magnitude Comparator
• Input: Two 4-bit binary or BCD numbers (A3-A0, B3-B0)
• Output: Three comparison outputs (A>B, A=B, A
• Cascading: Expansion inputs for comparing larger numbers
• Logic Family: CMOS (74HC series - High-speed CMOS)
• Package: SOP-16 / SOIC-16 (Surface Mount)
• Supply Voltage: 2V to 6V DC (3.3V and 5V compatible)
• Input Logic Levels: CMOS compatible (VIH ≥70% VCC, VIL ≤30% VCC)
• Output Logic Levels: CMOS compatible (VOH ≥VCC-0.1V, VOL ≤0.1V)
• Propagation Delay: Typical 25ns at 5V
• Operating Temperature: -40°C to +85°C (industrial grade)
• Pin Count: 16 pins
• Mounting: Surface mount (SMD/SMT)
• Weight: Approx. 0.3g

Why Buy from Digilog.pk?

We provide authentic SN74HC85 and 74HC series comparator ICs in Pakistan at competitive prices. Fast delivery to Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and across Pakistan with technical support for your digital logic and arithmetic circuit projects.
