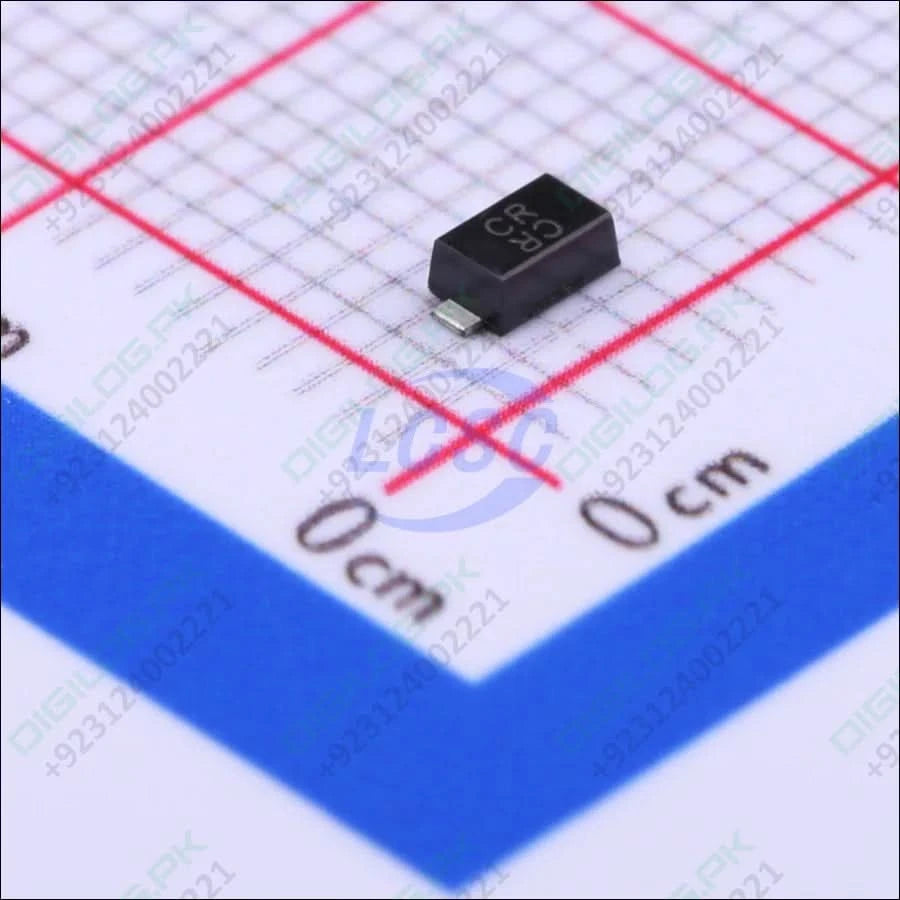

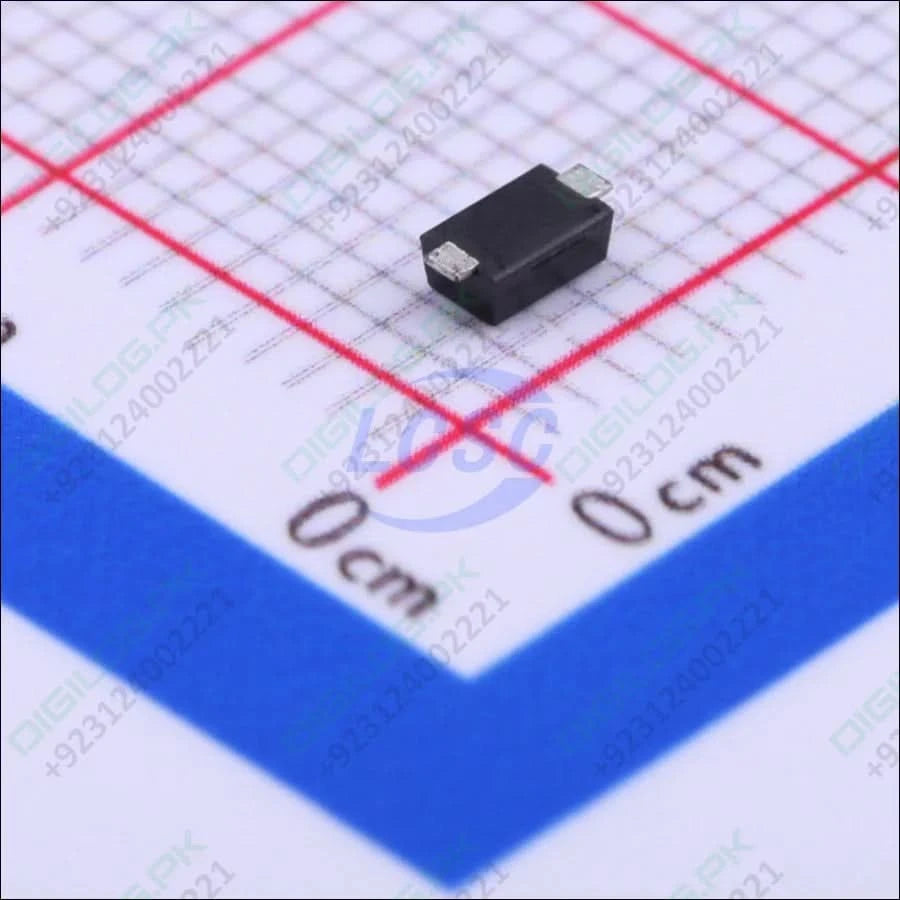

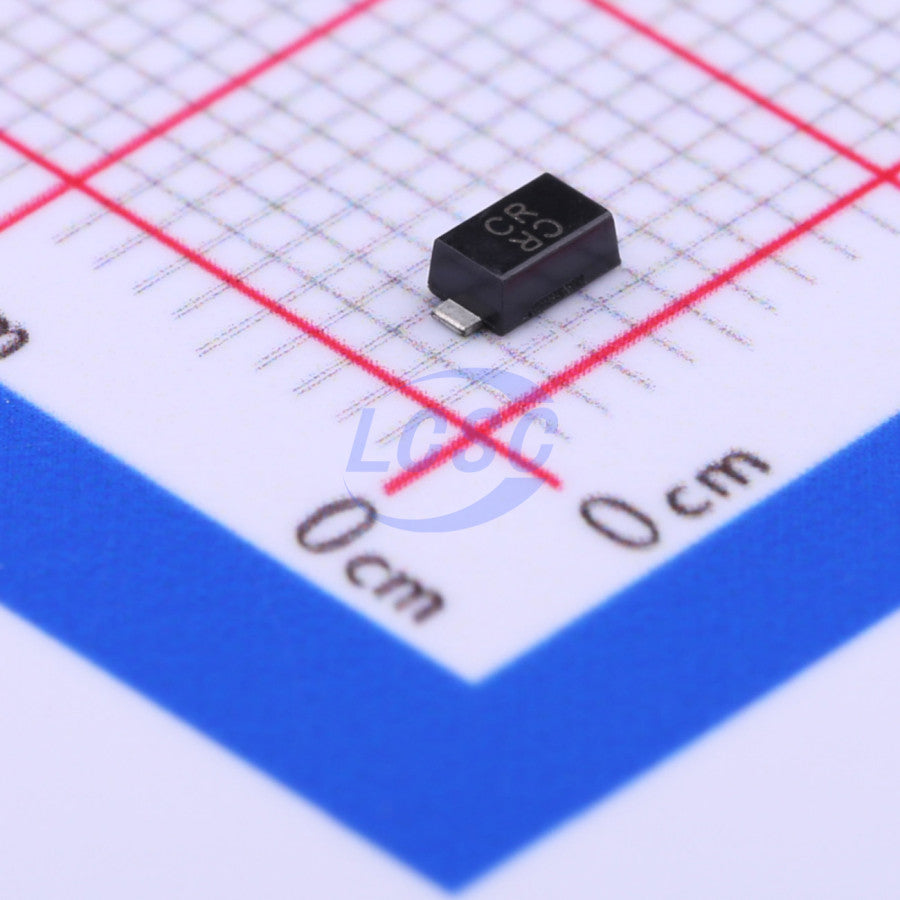

SJD12C40L01 ESD and Surge Protection TVS Diode
Pickup available at Digilog Electronics
Usually ready in 2 hours
In today’s fast-paced electronics market, protecting your circuitry from harmful voltage spikes is more important than ever. The SJD12C40L01 is engineered to safeguard sensitive components against electrostatic discharge (ESD) and surge events. With its bidirectional design and compact SOD-123S package, it meets the needs of consumer electronics, industrial equipment, and automotive systems.
Key Features
- High Surge Capability: Handles peak pulse power dissipation up to 200W, ensuring resilience against high-energy transients.
- Low Clamping Voltage: With a clamping voltage of 64.5V, it effectively limits voltage overshoots, protecting downstream components.
- Bidirectional Protection: Shields circuits from both positive and negative ESD events, providing comprehensive circuit safety.
- Compact Design: Its SOD-123S package allows easy integration into tight PCB layouts.
Applications
The SJD12C40L01 is ideal for multiple applications, including:
- Consumer Electronics: Protect devices such as smartphones, tablets, and wearables.
- Industrial Equipment: Enhance reliability in control systems and sensor arrays.
- Automotive Electronics: Secure sensitive automotive circuits from unpredictable surges.
Distributed across major cities such as Lahore, Karachi, Peshawar, Quetta, Multan, and many others, our products are trusted by professionals nationwide.
Detailed Product Information
For a full specification overview, refer to the official datasheet.
Related Internal Products
Enhance your designs by exploring our range of complementary components available on Digilog.pk:
- CD4094 8 Stage Shift and Store Bus Register IC DIP-16 Package: Perfect for data storage and transfer in digital circuits.
- ST7920 5V 12864B LCD Module 128x64 Dots Graphic Blue Color Backlight LCD Display: A versatile display solution for various projects.
- Nodemcu V2.1 ESP8266 Based IoT Development Module: Ideal for IoT applications requiring Wi-Fi connectivity.
- DWIN HMI 3.5 Inch LCD Resistive Touch Display DMG48320C035-03WTR: Enhance interactive interfaces with this advanced display.
- Explore More: Visit our complete Products Sitemap for an extensive selection of electronic components ranging from microcontrollers to power supplies.
External Resources
For further insights and industry best practices, you may also consult:
FAQs
What is the primary function of the SJD12C40L01 diode?
The diode is specifically designed to protect electronic circuits from voltage spikes caused by ESD and surge events, ensuring long-term reliability.
Which applications benefit most from this diode?
It is widely used in consumer electronics, industrial systems, and automotive circuits to mitigate the risk of damage from transient voltage spikes.
What package does this diode come in?
The SJD12C40L01 is available in a compact SOD-123S package, making it well-suited for space-restricted designs.
How does bidirectional protection work?
Bidirectional protection means the diode defends against both positive and negative voltage spikes, offering comprehensive circuit protection.
Where can I access the detailed technical specifications?
You can view the detailed datasheet here.
SEO Tags, Synonyms, and Buying Keywords
Tags:
SJD12C40L01, ESD protection diode, surge protection diode, TVS diode, bidirectional TVS, 40V TVS diode, SOD-123S package, electrostatic discharge protection, voltage surge protector, transient voltage suppression, electronic circuit protection, high surge capability diode, low clamping voltage diode, consumer electronics protection, industrial surge protection, automotive circuit protection, buy TVS diode, purchase ESD diode
By integrating the SJD12C40L01 into your designs, you ensure robust protection against voltage disturbances—empowering reliable performance for projects across Lahore, Karachi, Peshawar, and beyond. For additional product options and further information, please explore our full product catalog.
