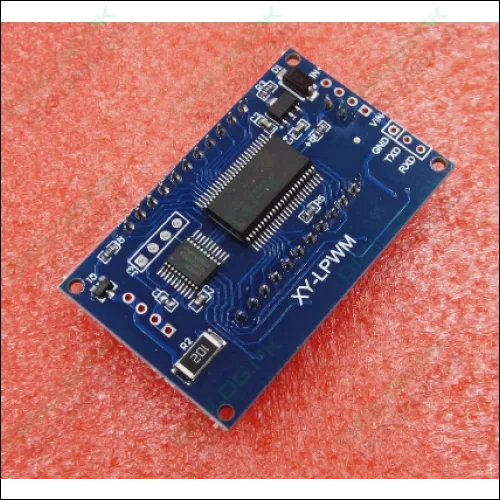

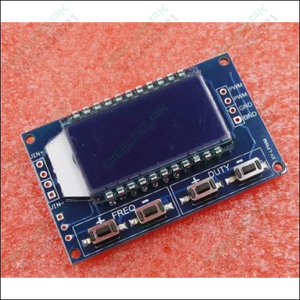

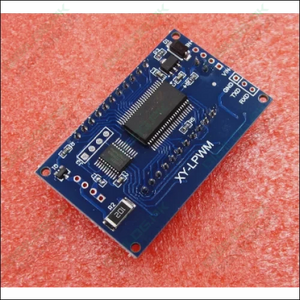

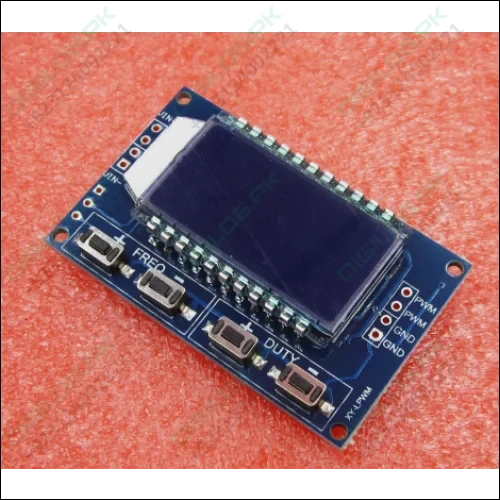

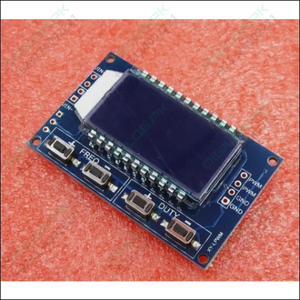

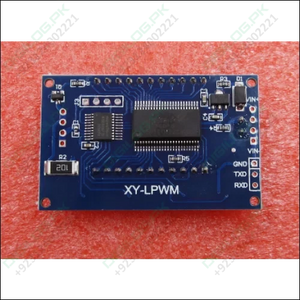

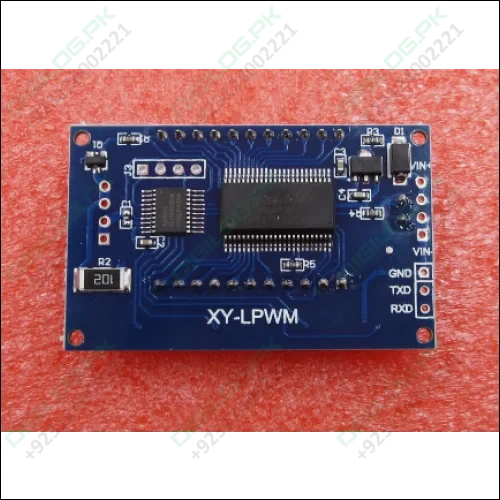

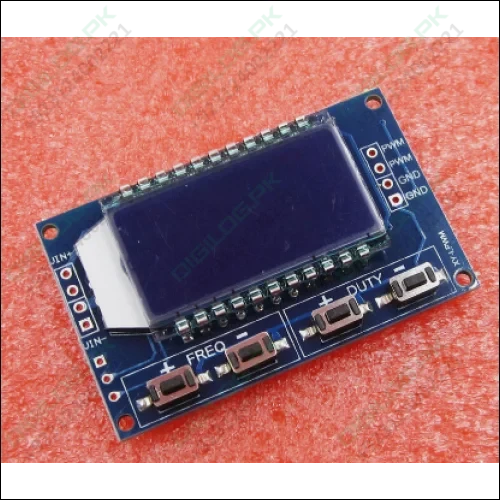

Signal Generator PWM Frequency Adjustable Module LCD 3.3V-30V Equipment A2tm
Pickup available at Digilog Electronics
Usually ready in 2 hours

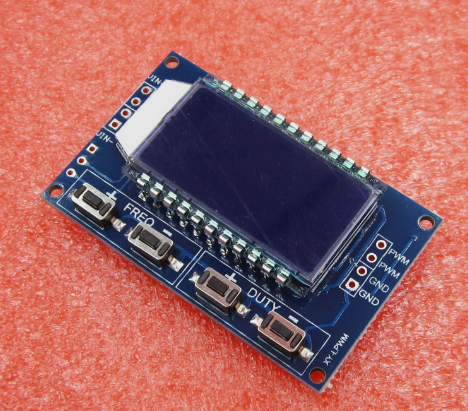

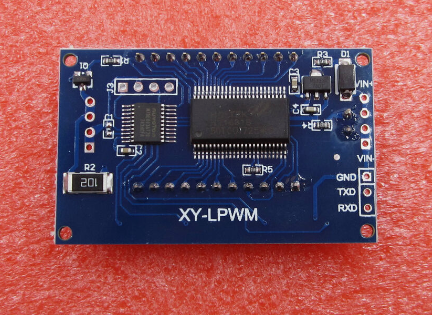

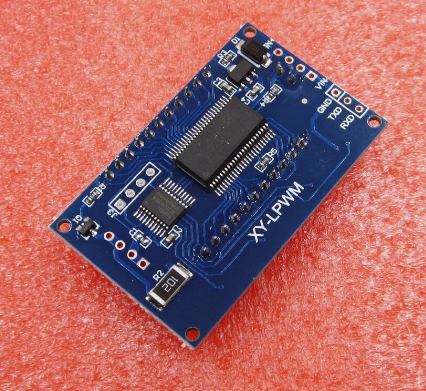

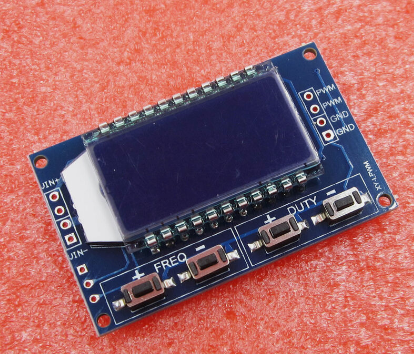

The Signal Generator PWM Frequency Adjustable Module (A2TM) is a versatile electronic equipment designed for generating Pulse-Width Modulation (PWM) signals. It features an LCD display and supports a wide voltage range from 3.3V to 30V, making it suitable for various applications in electronics, motor control, and more.
Key Features:
- PWM Signal Generation: The module can generate PWM signals with adjustable frequency and duty cycle, making it ideal for controlling motors, LEDs, and other devices.
- LCD Display: Equipped with an LCD screen, it provides real-time information on frequency and duty cycle settings, enhancing user convenience.
- Wide Voltage Range: With a voltage range of 3.3V to 30V, this module is compatible with a broad range of power supplies and applications.
- Precise Control: Allows precise adjustment of PWM frequency and duty cycle using onboard buttons, providing flexibility for different tasks.
- Compact and Durable: The module's compact design and durable construction make it suitable for both prototyping and permanent installations.
Specifications:
- Input Voltage: 3.3V to 30V
- Output Voltage: 3.3V to 30V (Same as input voltage)
- Frequency Range: Adjustable from 1Hz to 150kHz
- Duty Cycle Range: Adjustable from 0% to 100%
- Display: LCD screen for frequency and duty cycle
- Control: Onboard buttons for adjusting settings
- Dimensions: [Specify the module's dimensions]
- Mounting: Mounting holes for easy installation
- Operating Temperature: [Specify the operating temperature range]
- Applications: Suitable for motor control, lighting control, and various electronic projects.
- Compatibility: Compatible with a wide range of microcontrollers and electronic systems.
- Protection: Overcurrent protection and reverse polarity protection for enhanced safety.
The Signal Generator PWM Frequency Adjustable Module (A2TM) is a valuable tool for electronics enthusiasts, engineers, and hobbyists who require precise PWM signal generation for their projects. Its adjustable settings, LCD display, and wide voltage range make it a versatile choice for a variety of applications.
Package include:
1xSignal Generator PWM Frequency Adjustable Module LCD 3.3V-30V Equipment A2TM
