Description:
The SFF1606G is a high-current, glass-passivated super-fast rectifier diode, manufactured by Taiwan Semiconductor Corporation (TSC). Internally, the device is built as a diode array with a common-cathode configuration — two fast-recovery diode elements sharing a common cathode connection, useful for center-tap rectification in power supply designs.
Rated for 400V and capable of handling 16A, this rectifier is built for high-efficiency, low-loss power conversion. It offers a low forward voltage drop, fast switching (recovery times as low as ~35ns), high surge current capability, and high overall reliability — making it well suited for demanding industrial, automotive, and power supply applications. The part is UL Recognized, RoHS compliant, and halogen-free, with AEC-Q101 automotive-qualified variants also available.

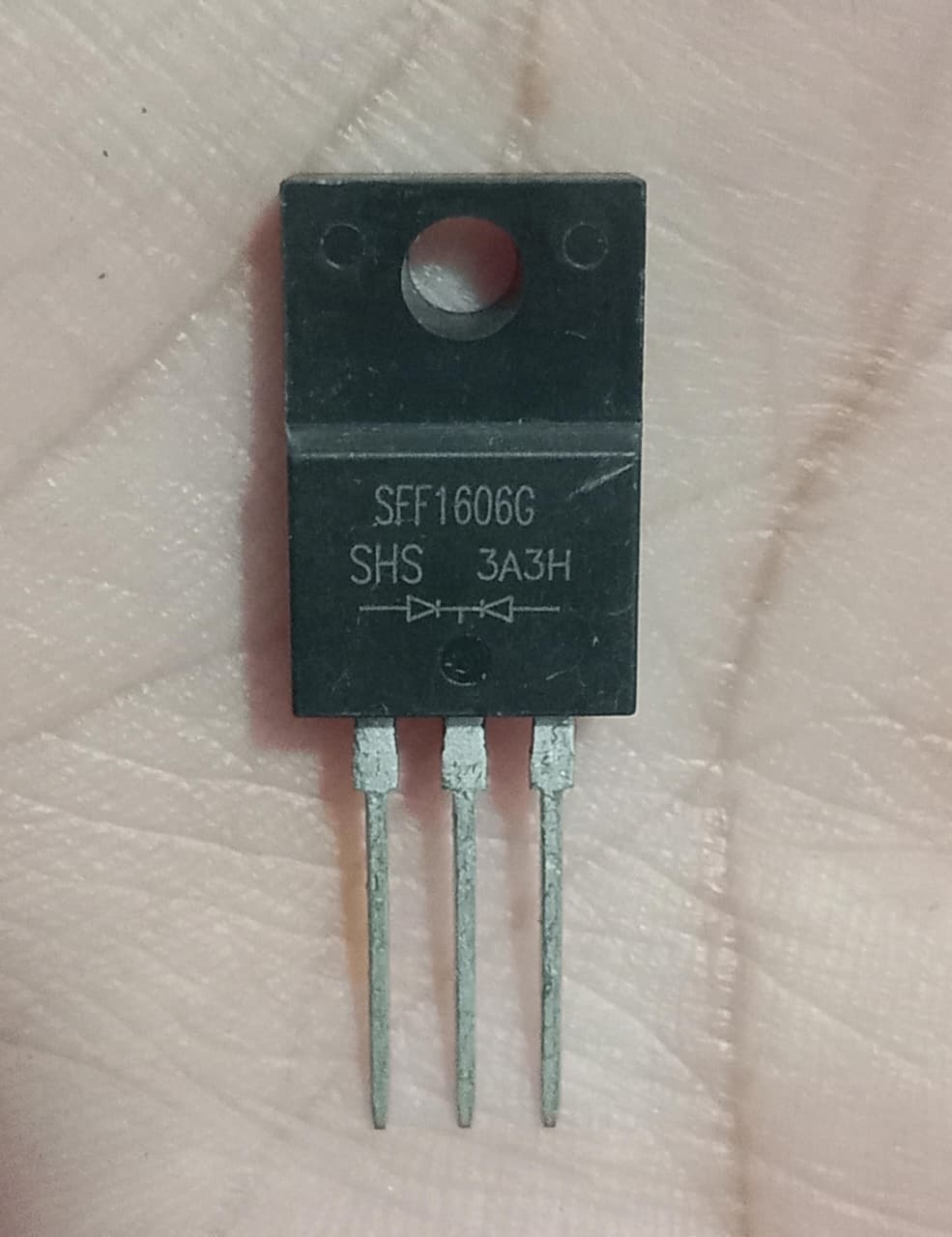

The device comes in a TO-220F (isolated tab) package, allowing it to be mounted directly to a heatsink without a separate insulating pad — helpful for compact designs with multiple high-current rectifiers mounted close together.
Key Specifications:
- Manufacturer: Taiwan Semiconductor Corporation (TSC)
- Part Number: SFF1606G
- Type: Super Fast Rectifier Diode Array (Common Cathode)
- Reverse Voltage (VRRM): 400V
- Forward Current (IF): 16A
- Forward Voltage Drop (VF): ~1.3V @ 16A
- Reverse Recovery Time (trr): ~35ns
- Package Type: TO-220F / ITO-220AB (3-Pin, Isolated, Through Hole)
- Certifications: UL Recognized, RoHS Compliant, Halogen-Free
Applications:
Switch-mode power supplies (SMPS), freewheeling and flyback rectification, industrial power conversion, automotive electronics, and general high-current, high-speed rectification circuits.
Package Includes:
- 1 x SFF1606G Super Fast Rectifier Diode (TO-220F)
