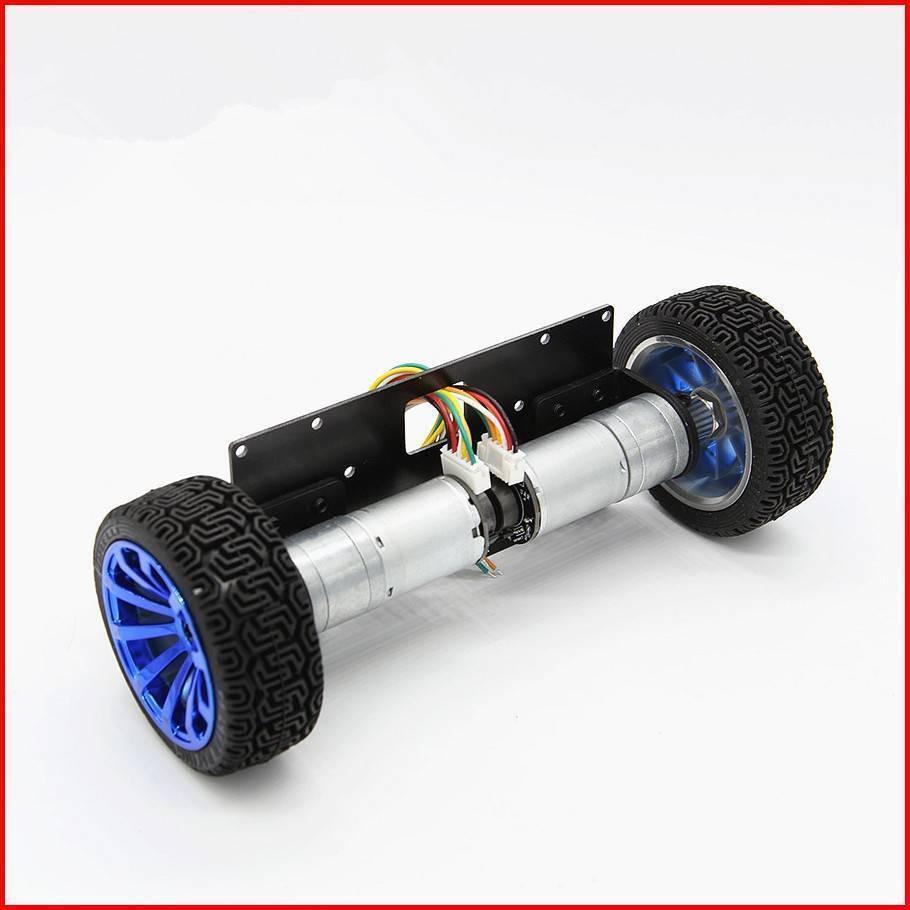

Self Balancing Robot Chassis With Wheel And Encoder Motors - two blue wheels, silver motors with encoders, and a black metal mounting bracket.

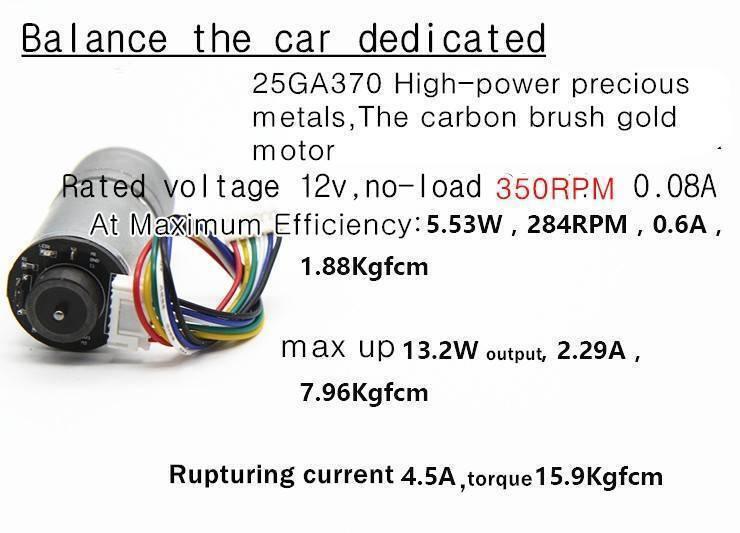

Self Balancing Robot Chassis With Wheel And Encoder Motors - a silver cylindrical gear motor with a white connector and multi-coloured wires.
Sold out
Self Balancing Robot Chassis With Wheel And Encoder Motors - two blue wheels, silver motors with encoders, and a black metal mounting bracket.
Self Balancing Robot Chassis With Wheel And Encoder Motors - a silver cylindrical gear motor with a white connector and multi-coloured wires.

Self Balancing Robot Chassis With Wheel And Encoder Motors

Sale price Rs 5,850
SKU: L5,Th2
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Self Balancing Robot Chassis With Wheel And Encoder Motors In Pakistan:

Description:

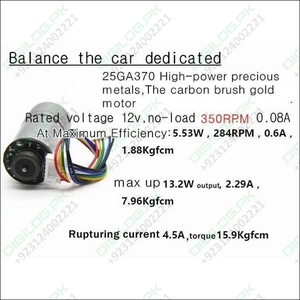

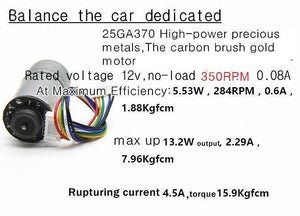

  •  25GA370 high power metal, carbon gold brush motor
  •  Rated voltage:12V, unload: 320RPM,0.08A
  •  Max.efficiency: 5.53W, 284RPM, 0.6A 1.88kgfcm
  •  Cut off current:4.5A, torque: 15.9Kgfcm

Feature:

  • – The mechanical structure is simple, very easy to install.
  •  The car comes with an encoder.

Specification:

  •  The decelerating motor is with Holzer encoder (output D-axis 4mm, with 4mm axis coupling)
  •  Operating voltage: 6-24VDC
  •  Rated voltage: 12V
  • 65MM sponge liner wheel
  •  12 CPR Holzer encoder
  •  CNC customized 1.5mm glass fiber and high strength motherboard
  •  3mm aluminum alloy motor mounting base2*25GA370 Motor with encoder Balanced car base 2 rounds for balance toy car Two wheel self-balancing car high power high torque
