Description

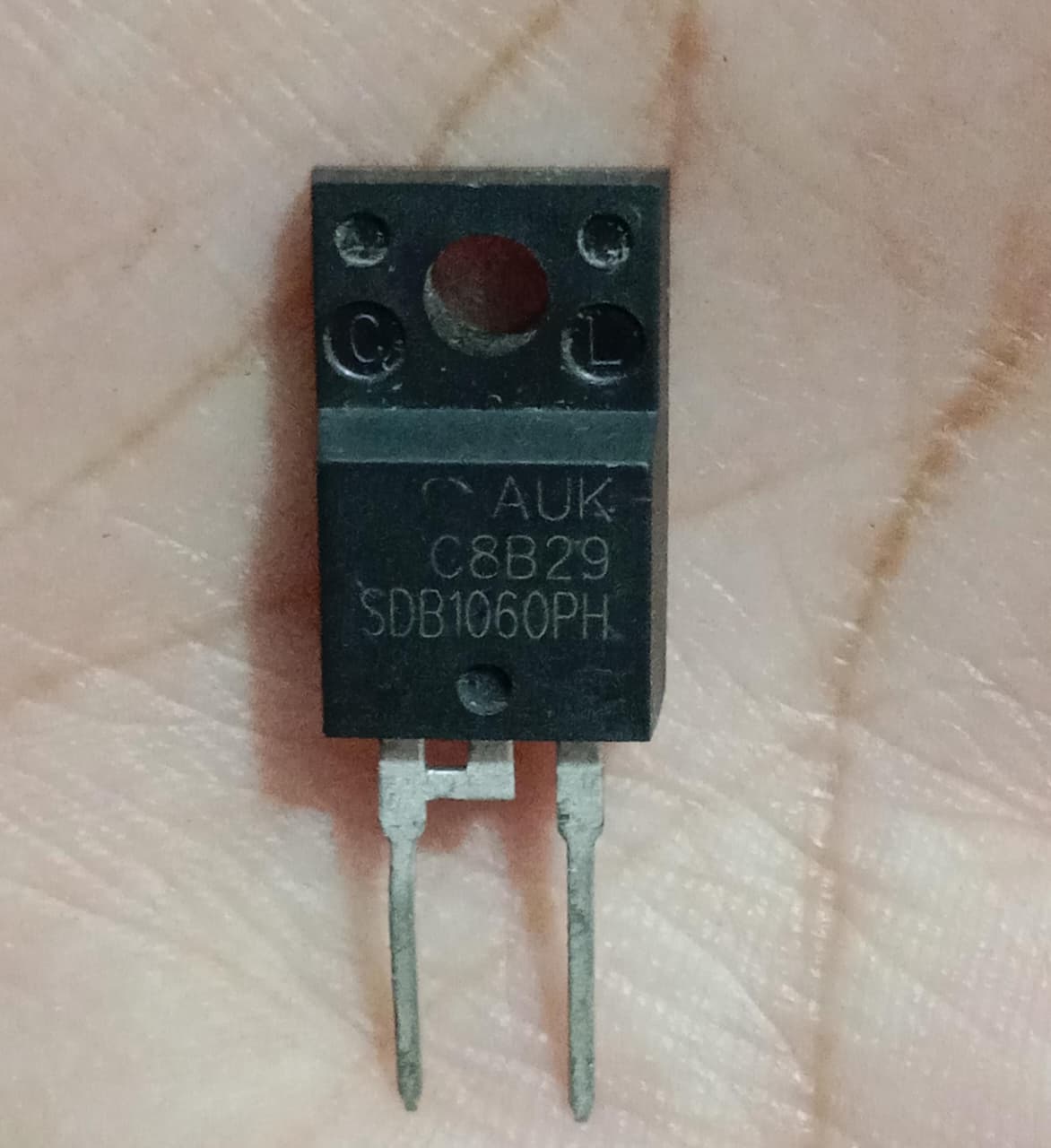

The SDB1060PH is a 60V, 10A Power Schottky Barrier Rectifier, manufactured by KODENSHI/AUK Corp, housed in the isolated 2-pin TO-220F-2L through-hole package. As a Schottky rectifier, it offers a low forward voltage drop and fast switching characteristics compared to standard silicon diodes, delivering low power loss and high efficiency in power conversion circuits.

Key electrical characteristics include a forward voltage (VFM) of just 0.55V at 125°C, and a high surge current capacity of 150A (IFSM), giving it strong resilience against current spikes. It also features low leakage current, and is built as a fully lead-free (Pb-free) and RoHS-compliant device.

The SDB1060PH is well suited for switch-mode power supplies (SMPS) and high-frequency DC-DC converters, and is especially intended for use in low-voltage, high-frequency inverters, freewheeling, and polarity protection applications — common roles for Schottky rectifiers in efficient power electronics design.

Key Specifications

• Type: Power Schottky Barrier Rectifier
• Manufacturer: KODENSHI / AUK Corp
• Package Marking: AUK C8B29 SDB1060PH
• Package: TO-220F-2L (isolated, 2-lead)
• Average Forward Current (IF(AV)): 10A
• Repetitive Peak Reverse Voltage (VRRM): 60V
• Forward Voltage (VFM) @ 125°C: 0.55V
• Surge Current (IFSM): 150A
• Low leakage current
• Full lead-free (Pb-free) and RoHS compliant

Common Applications

• Switch-Mode Power Supplies (SMPS)
• High-frequency DC-DC converters
• Output rectification
• Freewheeling diode applications
• Polarity protection circuits

Package Includes

• 1 x AUK SDB1060PH Schottky Rectifier Diode (TO-220F-2L)
