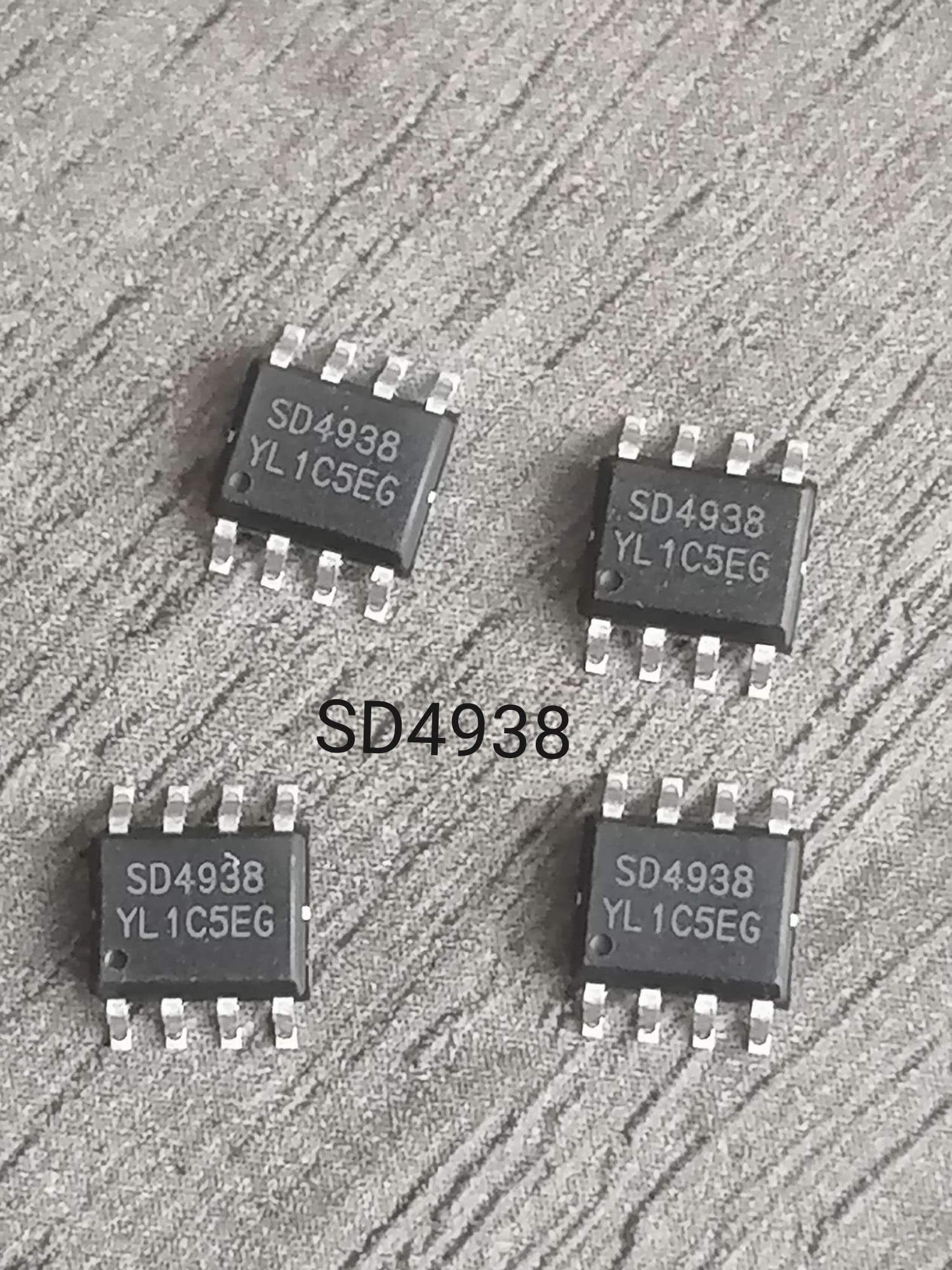

The SD4938 is a high-performance current mode PWM controller IC with integrated 150V MOSFET designed for switch-mode power supplies (SMPS) in Pakistan. Featuring a built-in high-voltage start-up circuit and burst mode operation at light loads, this power management IC delivers efficient AC-DC conversion for chargers, adapters, and low-power switching power supplies. The SD4938 provides excellent line and load regulation with minimal external components for cost-effective SMPS designs.

Key Features

• Integrated 150V high-voltage MOSFET for direct AC line operation in SMPS applications
• Current mode PWM control ensures fast transient response and excellent load regulation
• Built-in high-voltage start-up circuit eliminates need for external start-up resistor
• Burst mode operation at light loads improves efficiency and reduces standby power consumption
• Comprehensive protection features: over-voltage, over-current, over-temperature, and short-circuit protection
• Wide input voltage range suitable for universal AC input (85-265V AC) applications
• SOP-8 package for compact PCB layout and easy assembly in Pakistan

Applications & Use Cases

• Mobile phone chargers and USB power adapters for smartphones and tablets
• Low-power AC-DC switching power supplies up to 15W output
• LED driver power supplies for lighting applications in Pakistan
• Set-top boxes, routers, and consumer electronics power supplies
• Home appliance auxiliary power supplies and standby power circuits
• Battery chargers for cordless tools and portable devices
• Industrial control and automation low-power supplies

Technical Specifications

• Part Number: SD4938
• Type: Current Mode PWM Controller with Integrated MOSFET
• MOSFET Voltage Rating: 150V
• Control Mode: Current mode PWM (Pulse Width Modulation)
• Input Voltage Range: 85-265V AC (universal input)
• Start-up Circuit: Integrated high-voltage start-up
• Operating Mode: Burst mode at light load for high efficiency
• Switching Frequency: Typically 65kHz (varies with design)
• Protection: OVP, OCP, OTP, short-circuit protection
• Package: SOP-8 (Small Outline Package, 8 pins)
• Operating Temperature: -40°C to +125°C
• Typical Application: 5V-12V output, up to 15W SMPS
• Weight: Approx. 0.5g
