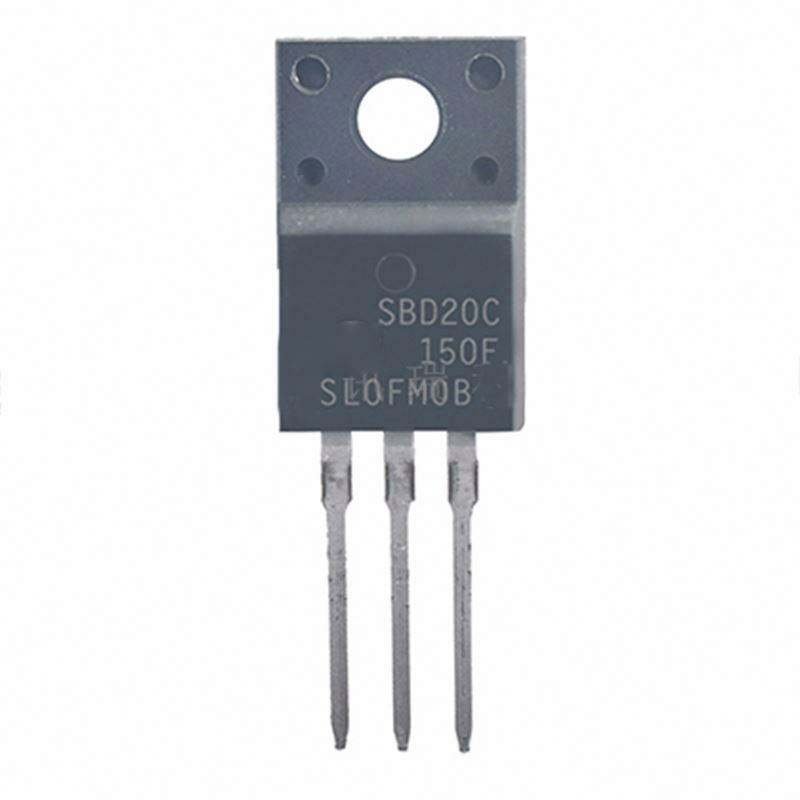

The SBD20C150F is a high-efficiency Dual Schottky Barrier Diode (SBD) designed for high-voltage and high-current applications. Encased in a fully isolated TO-220F (Full Pack) plastic package, this component offers excellent thermal resistance and electrical isolation, making it ideal for use in compact power supply units without requiring additional insulation hardware.

With a 20A total forward current rating (10A per leg) and a 150V repetitive peak reverse voltage, this rectifier is engineered to minimize power loss with its low forward voltage drop. It is widely used in high-frequency inverters, DC/DC converters, and as a freewheeling diode in varied electronic circuits.

Key Features:

• High Junction Temperature: Capable of operating reliably under high-temperature conditions.

• Low Forward Voltage Drop: Increases efficiency by reducing power dissipation.

• Fast Switching: High switching speed makes it perfect for high-frequency conversion.

• Dual Configuration: Common Cathode structure (Center pin is Cathode, outer pins are Anodes).

• Isolated Package: TO-220F plastic package prevents shorting against heatsinks.

Technical Specifications:

• Part Number: SBD20C150F

• Type: Schottky Barrier Rectifier (Dual)

• Maximum Repetitive Peak Reverse Voltage ($V_{RRM}$): 150V

• Average Rectified Forward Current ($I_{O}$): 20A (Total) / 10A (Per Leg)

• Configuration: Common Cathode

• Package Type: TO-220F (Insulated)

• Mounting Type: Through Hole

Applications:

• Switch Mode Power Supplies (SMPS)

• High-frequency DC to DC converters

• LED Power Drivers

• Freewheeling Diodes

• Battery Chargers

Package Includes:

• 1 x SBD20C150F Schottky Barrier Diode
