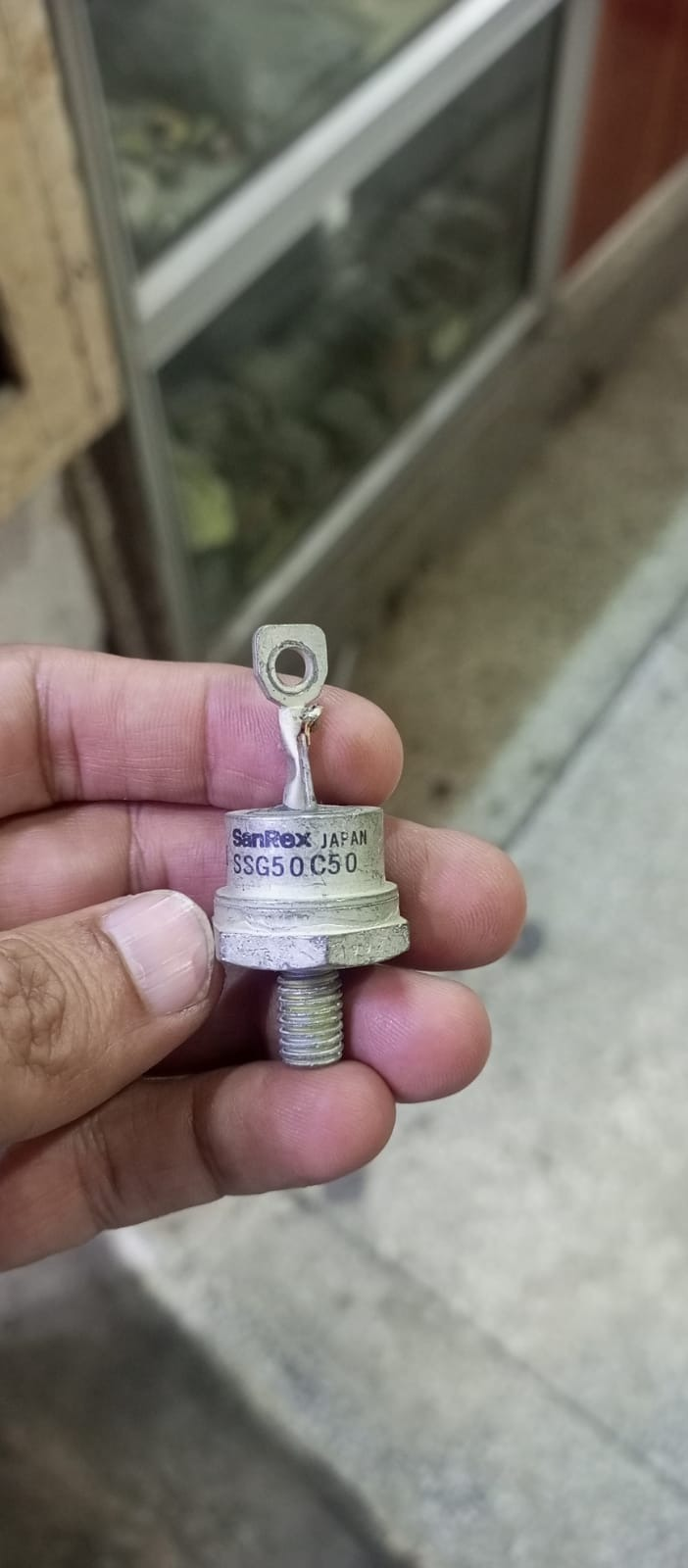

SanRex SSG50C50 Stud Diode – 50A 500V

The SanRex SSG50C50 is a high-quality stud-mount silicon rectifier diode manufactured in Japan. Designed for industrial power electronics, motor drives, and heavy-duty rectification applications, this component delivers reliable performance under demanding conditions.

Key Specifications

• Part Number: SSG50C50
• Manufacturer: SanRex (Japan)
• Type: Stud Mount Silicon Rectifier Diode
• Average Forward Current (IF): 50A
• Repetitive Peak Reverse Voltage (VRRM): 500V
• Mounting Type: Stud Mount (Anode Stud)
• Package: Stud / Bolt-type with ring terminal cathode
• Origin: Japan

Features

• High current capacity – ideal for industrial rectification
• Robust stud-mount design for easy heatsink mounting
• Low forward voltage drop for efficient power conversion
• Manufactured by SanRex – a trusted Japanese power semiconductor brand
• Suitable for AC-DC conversion, motor control, and welding equipment

Applications

• Industrial power supplies
• Motor drives and controllers
• Welding machines
• Battery chargers
• AC-DC rectifier circuits

Genuine SanRex component – sourced directly for quality assurance.
