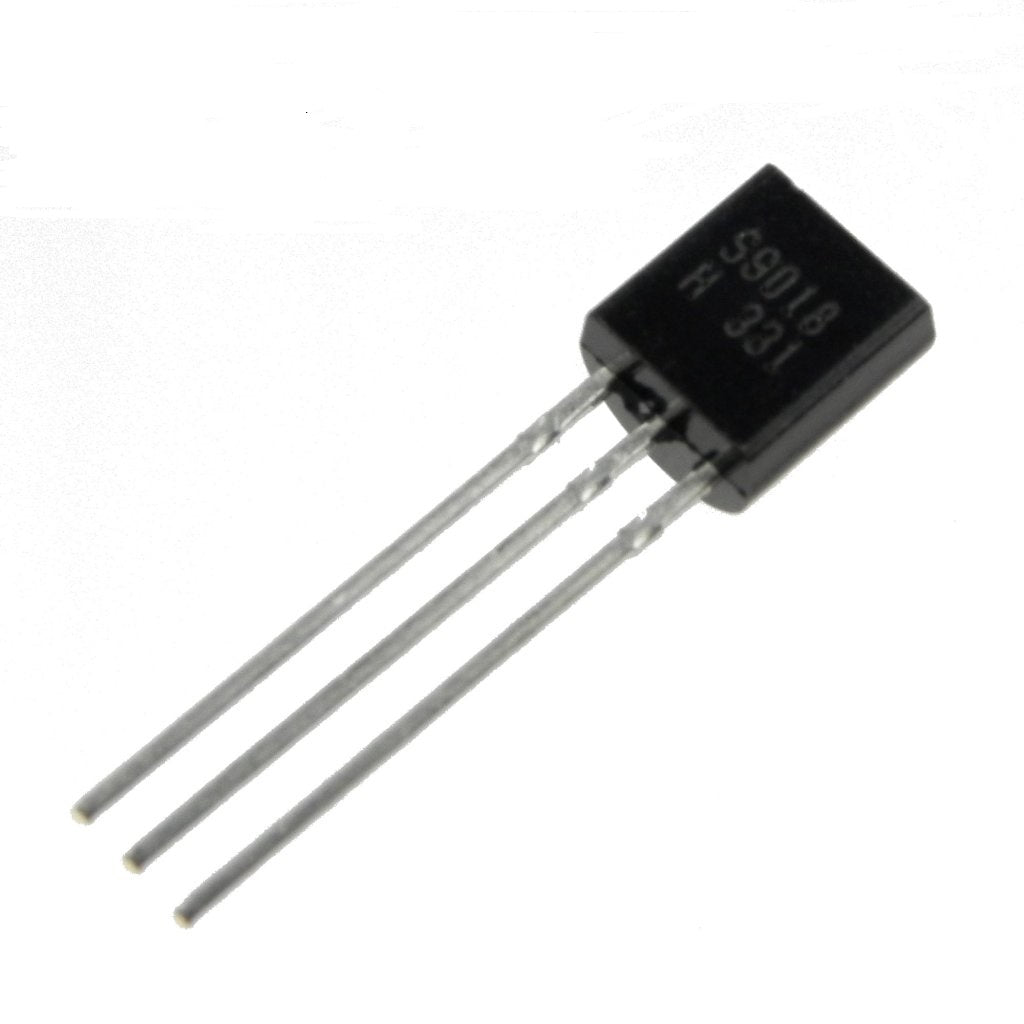

S9018 NPN Transistor J8 TO-92 — Low-Power General Purpose Amplifier & Switch

The S9018 is a widely used NPN bipolar junction transistor (BJT) in a compact TO-92 through-hole package. It is designed for low-power amplification and high-frequency switching in consumer electronics, audio preamplifiers, RF circuits, oscillators, timers, and DIY electronics projects. With its small footprint, reliable gain, and fast switching characteristics, the S9018 is a staple component for students, hobbyists, and repair technicians.

Marked with “J8” on the package, this transistor is commonly employed in signal amplification stages, local oscillator circuits for FM/VHF tuners, and low-current switching applications where a general-purpose NPN device is required.

Key Characteristics

• General-purpose NPN transistor for amplification and switching
• Compact TO-92 through-hole package for breadboard and PCB use
• Moderate DC current gain (hFE) typically 100–300
• Fast switching speed suitable for signal processing and RF circuits
• Low saturation voltage for efficient switching performance
• Popular in audio preamplifiers, oscillators, timers, and AM/FM circuits
• Compatible with 2.54mm standard breadboard and perfboard layouts

Technical Specifications / Datasheet

Common Applications

• Audio frequency signal amplification
• AM/FM RF amplifiers and local oscillators
• Small load switching and relay driver circuits
• Oscillators, timers, and pulse generators
• DIY electronics, Arduino, and Raspberry Pi projects
• Repair and replacement in consumer electronics

Package Includes

• 1 x S9018 NPN Transistor (TO-92, J8 marking)
