RURG5060 Diode Ultrafast Recovery Rectifier for Power Supplies & Inverters
Description

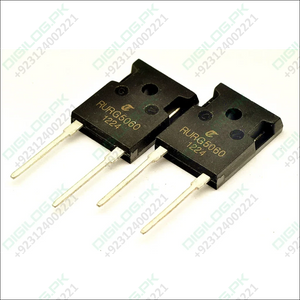

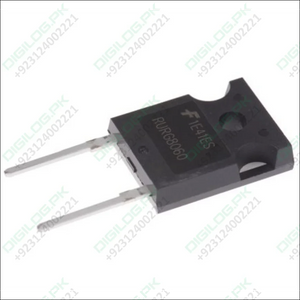

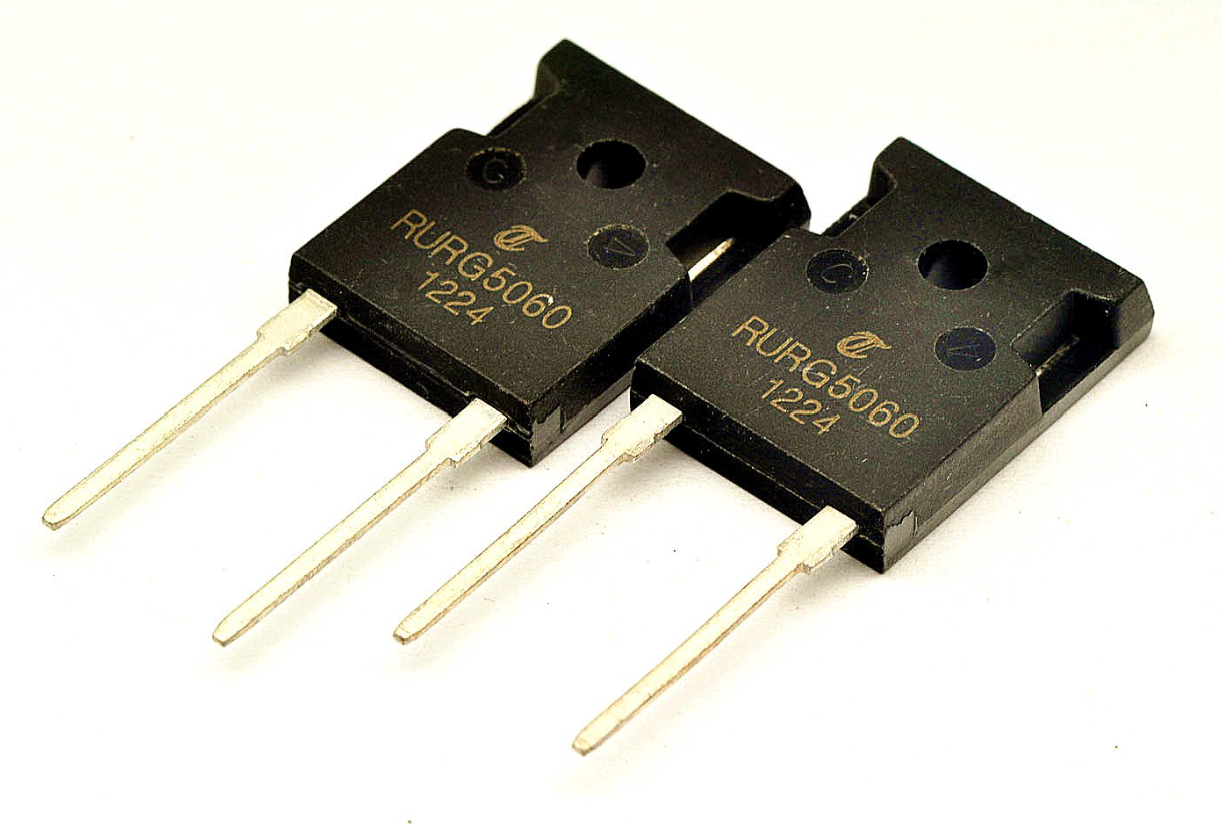

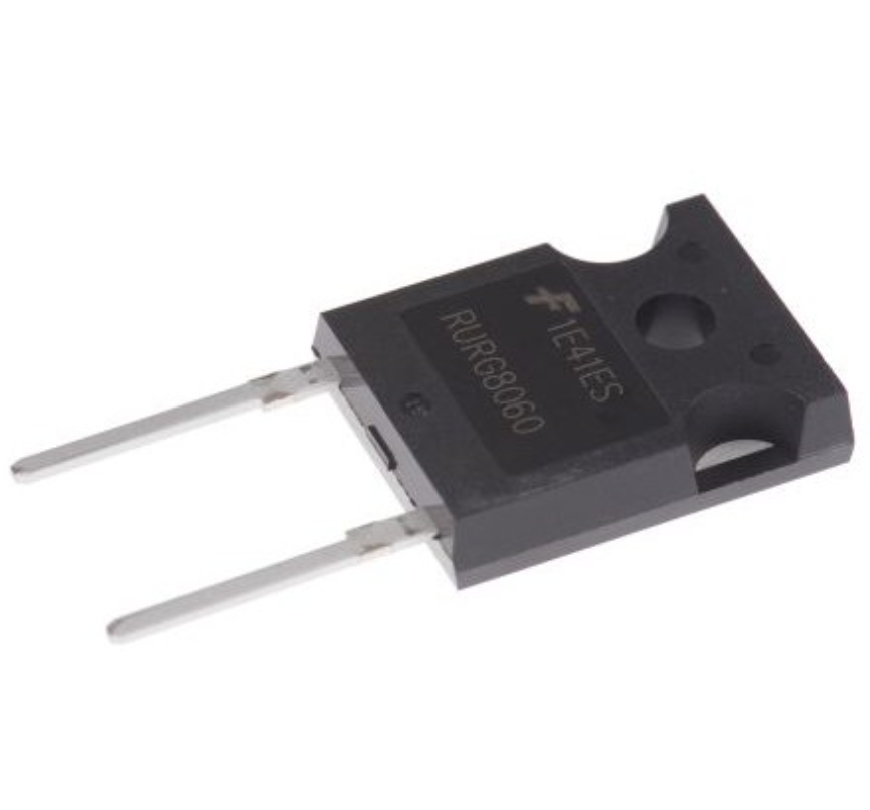

RURG5060 Diode - Ultrafast Recovery Rectifier for High-Frequency Applications
The RURG5060 Diode is a powerful ultrafast recovery rectifier, optimized for use in high-frequency switching applications. With a reverse voltage rating of 600V and a forward current rating of 50A, it provides both efficiency and reliability, ideal for use in switching power supplies, inverters, and freewheeling diode circuits.
Benefits of the RURG5060 Diode
- Ultrafast Recovery Time: Minimizes switching losses and reduces heat generation, improving circuit efficiency.
- Low Forward Voltage Drop: Enhances energy efficiency by reducing conduction losses.
- High Surge Capability: Withstands substantial current surges, ensuring durability and reliability under stress.
- Avalanche Energy Rated: Offers robustness for industrial applications.
- Environmentally Friendly: Pb-free and RoHS compliant.
Applications
- Switching Power Supplies
- Motor Drive Inverters
- High-Frequency Rectifiers
- DC-DC Converters
- Renewable Energy Systems
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Reverse Voltage (VRRM) | 600V |
| Average Forward Current (IF(AV)) | 50A |
| Forward Voltage Drop (VF) | 1.6V |
| Reverse Recovery Time (trr) | 75ns |
External Resources
Related Products
Package Includes
- 1 x RURG5060 Ultrafast Recovery Diode
