RS-485 Communication Cable for LD-51 Battery to Voltronic Inverter Integration

Connect your LD-51 LiFePO4 Battery with a Voltronic Inverter using this RS-485 communication cable designed for seamless BMS-to-inverter data exchange.

This cable is configured for the RS-485 Pylon protocol on both ends, ensuring reliable communication for power management, battery monitoring, and inverter control.

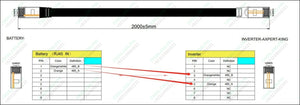

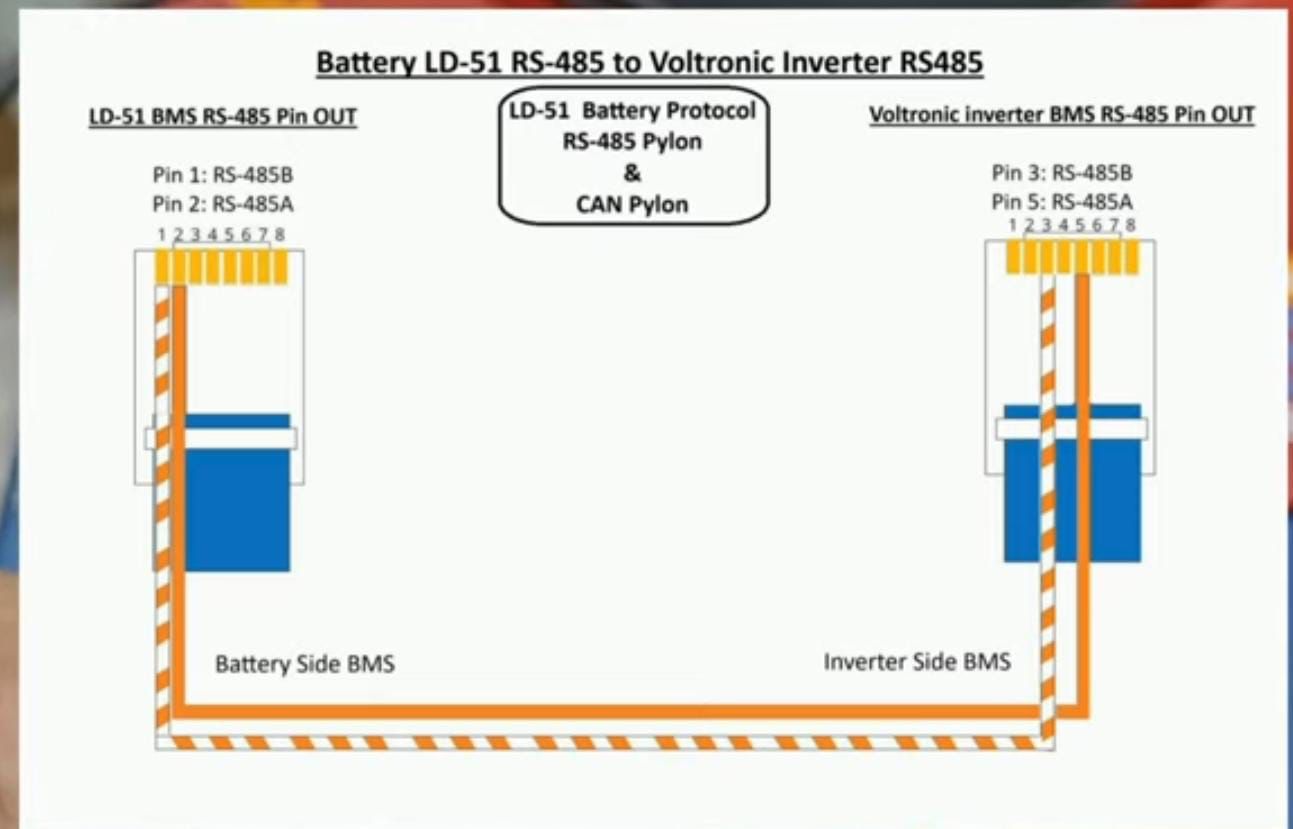

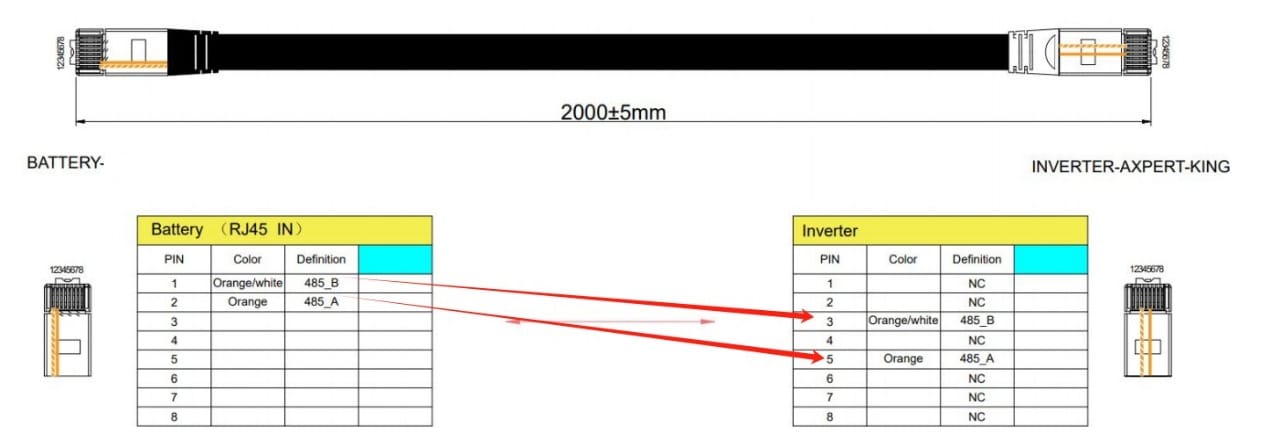

• 🔌 Battery Side: Pin 1 (RS-485B), Pin 2 (RS-485A)
• 🔌 Inverter Side: Pin 3 (RS-485B), Pin 5 (RS-485A)
• 🔒 Twisted pair design to reduce interference

Perfect for off-grid or hybrid solar setups using Voltronic inverters (Axpert, InfiniSolar) with LD-51 batteries.

⚙️ Key Features

• Plug-and-play RS-485 connectivity
• Pre-wired for Pylontech-compatible protocol
• Stable BMS-inverter communication
• Durable, shielded connectors
• Supports RS-485 & CAN Pylon switching in LD-51



Package Includes:

   1x cable in 3.5 meter length
