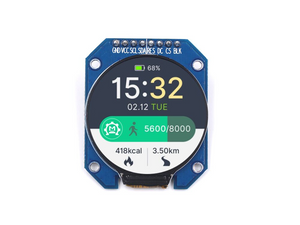

Round Watch 240×240 1.28-inch Display Module – GC9A01A - a blue circuit board with a round screen displaying time, date, and fitness data.

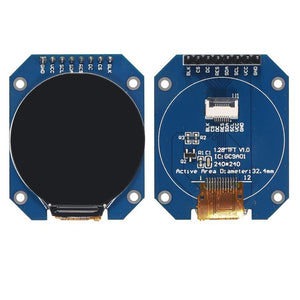

Round Watch 240×240 1.28-inch Display Module – GC9A01A - front and back views of the blue circular PCB with a black screen and pin headers.

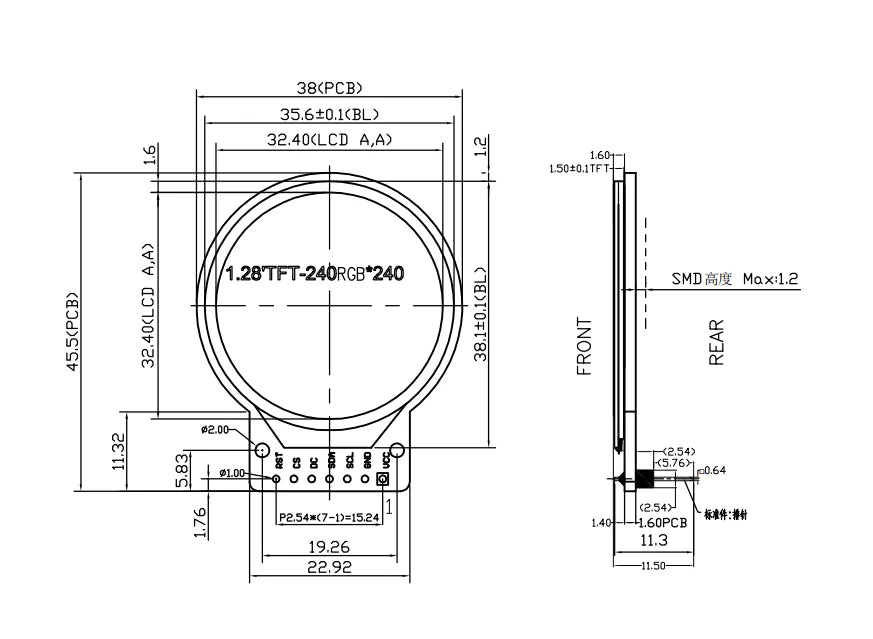

Round Watch 240×240 1.28-inch Display Module – GC9A01A - the front and side profile with labels and measurements.
Sold out
Round Watch 240×240 1.28-inch Display Module – GC9A01A - a blue circuit board with a round screen displaying time, date, and fitness data.
Round Watch 240×240 1.28-inch Display Module – GC9A01A - front and back views of the blue circular PCB with a black screen and pin headers.
Round Watch 240×240 1.28-inch Display Module – GC9A01A - the front and side profile with labels and measurements.

Round Watch 240×240 1.28-inch Display Module – GC9A01A

Sale price Rs 1,520
SKU: b749
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Description

1.28″ Round LCD Display Module with embedded GC9A01 driver, using SPI bus Comes supported by ESP32 variants, Raspberry Pi, Arduino, STM32 MCUs.

Technical Specifications

  • Display Size: 1.28 inch
  • Resolution: 240 (h)x240 (v) resolution, 65K RGB Colors
  • Dot Pitch: 0.135 (h) x 0.135 (v)
  • Active Area: 32.4mm
  • Color Arrangement: RGB Vertical stripe
  • Interface : SPI digital interface
  • Driver IC GC9A01
  • Luminance: 400 (typ) cd/m2
  • Viewing Direction: All view – O’Clock
  • Backlight: 2 white LED parallel
  • IO Level: 3.3V
  • Operating Voltage: 2.65V ~ 3.3V
  • Max Operating Current: ~40mA
  • On board Regulator: None
  • Operating Temp: -20C ~ +70C
  • Storage Temp: -30C ~ +80C
  • Mounting Holes : Yes
  • Module Size: 45.5 (H) X 48 (V) X 11.5 (D) mm
  • Current draw: Need to check

Pinouts

VCC Power
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight

[!]Warnings

  • The I/O of the Display Module is 3.3v voltage , so you should not directly connect it to the 5v voltage I/O. IO level translator or series limiting resistors should be used.

Documents and Downloads

  • Display Driver GC9A01 Datasheet
  • GC9A01 Library for Arduino
  • Youtube video Using the GC9A01 1.28″ Color TFT Display

Package Includes

  • 1x Round Watch 240×240 1.28-inch Display Module – GC9A01A (Tested / QC-OK)
