The line follower sensor can help the robot to track white lines or black lines (black lines on a white background or black lines on a white background can be detected). The module has two infrared sensors with low delay and can detect the status of ground lines in real-time.

2.Specification

3.Features

• Two on-board blue LEDs are used for detection feedback.
• Note that this module is susceptible to natural light and has certain limitations on fields with large variations in ambient light.
• Support Arduino IDE programming, and provide runtime to simplify programming.
• Support Robobloq graphical programming for all ages.

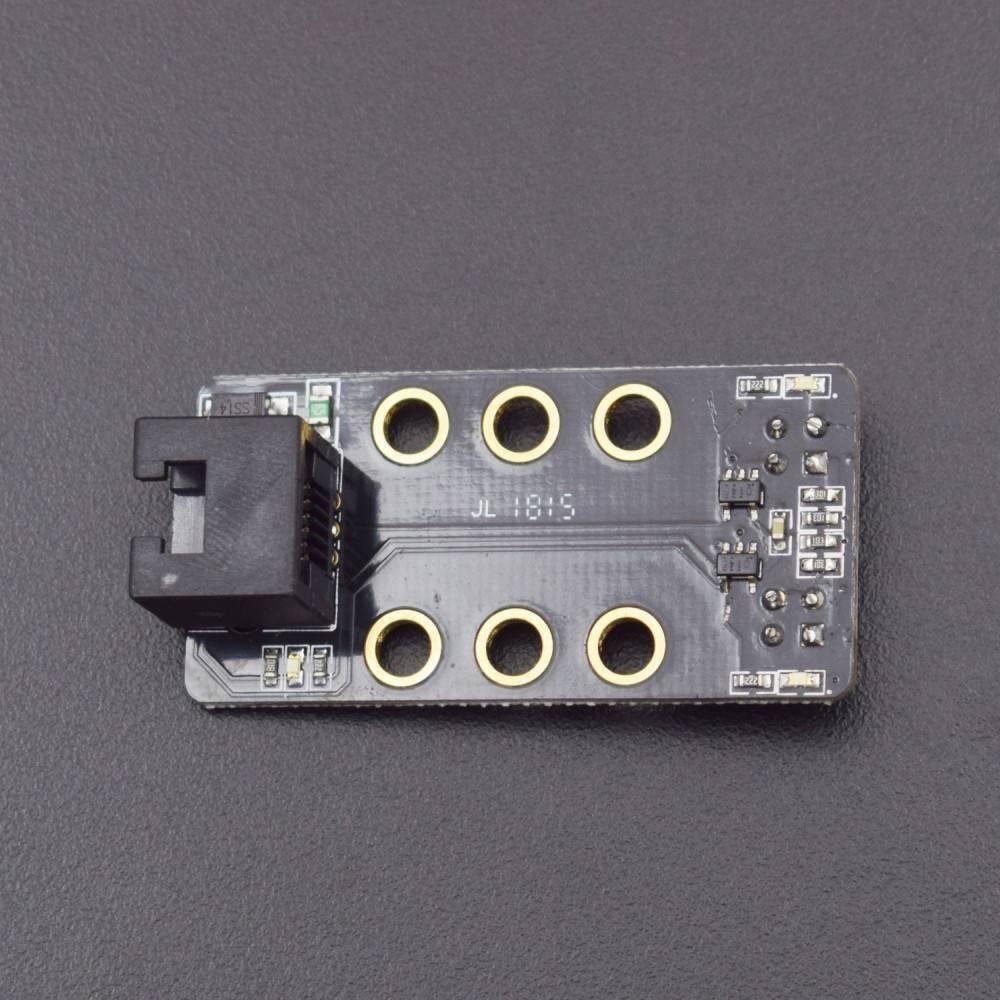

• The on-board gold-immersed M4 mounting holes are easy to install and use the RJ11 interface for convenient connection.

4. How to use it?

• Assembly: With four mounting holes, be careful not to damage the components on the board or cause a short circuit during installation.
• Wiring: It can be connected to the black ports of Qmind or Qmind plus board.
• Programming blocks

Package Includes:

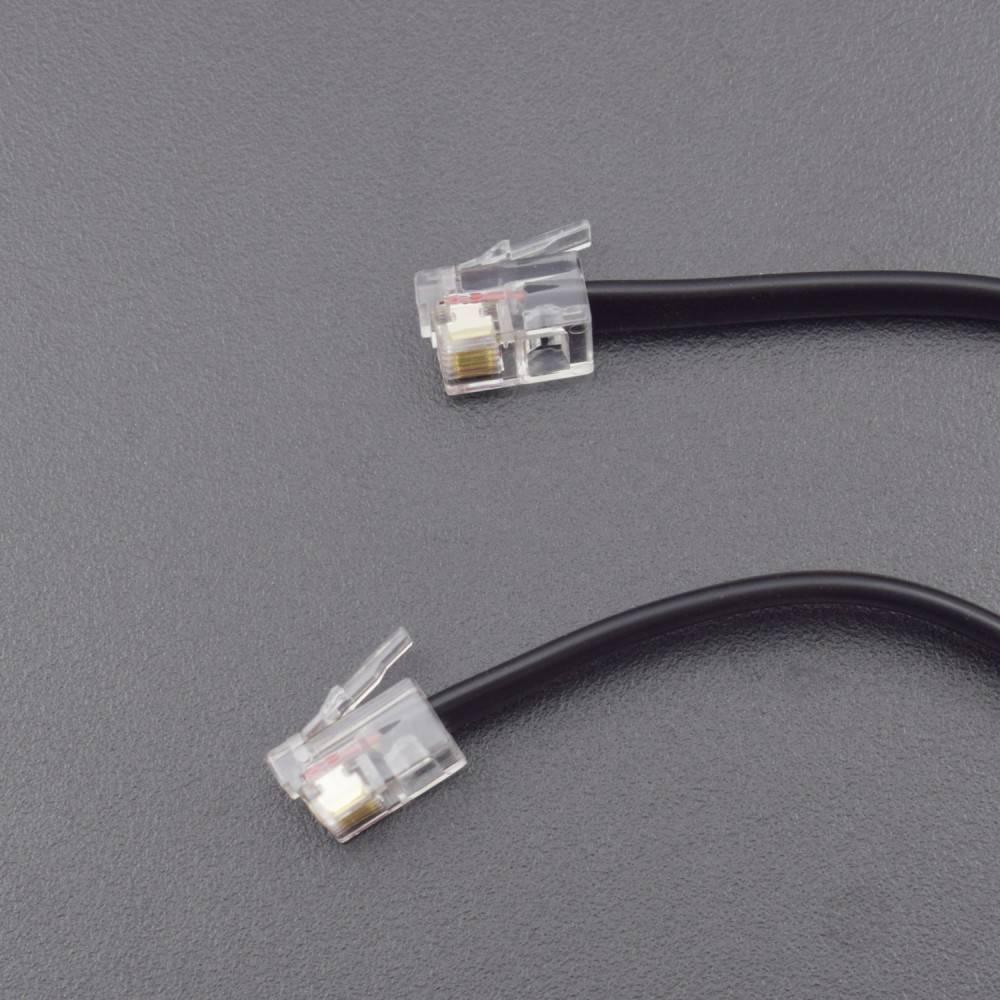

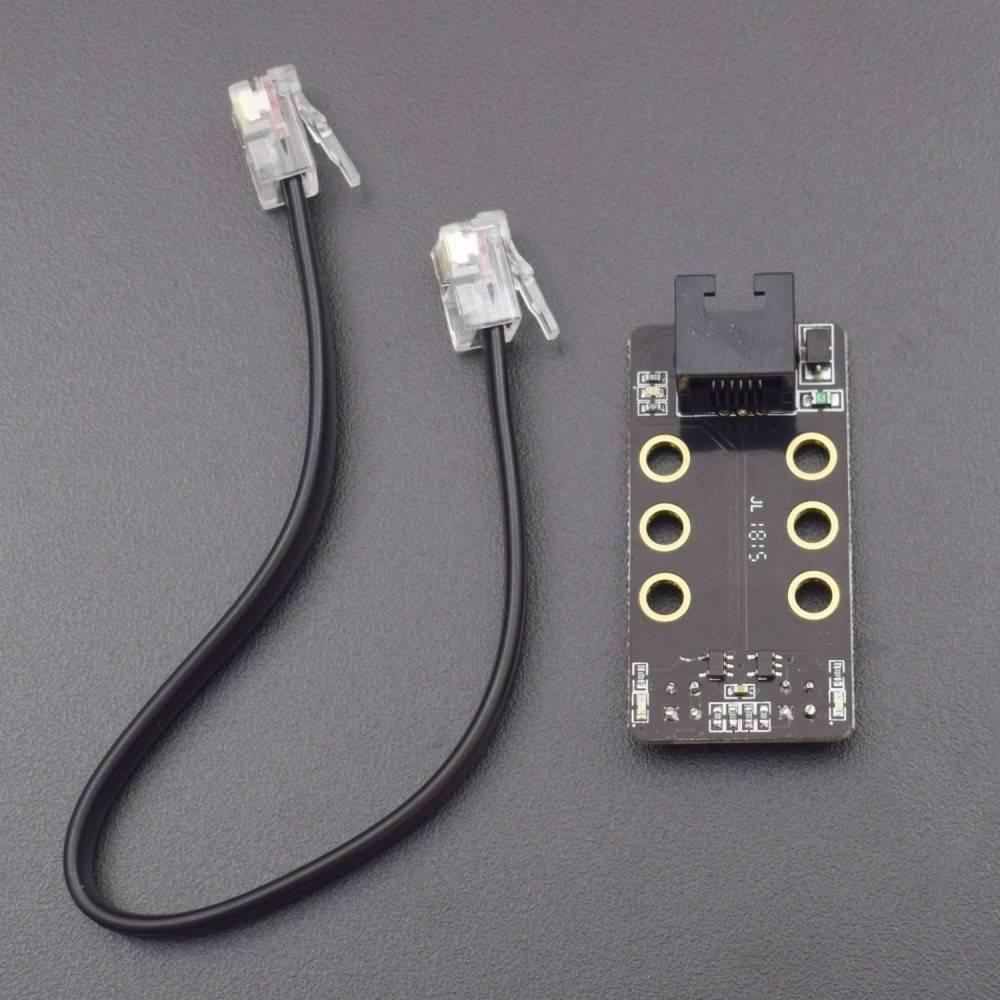

1 x Robobloq Line Follower Sensor with RJ11 Connecting Wire
