Description

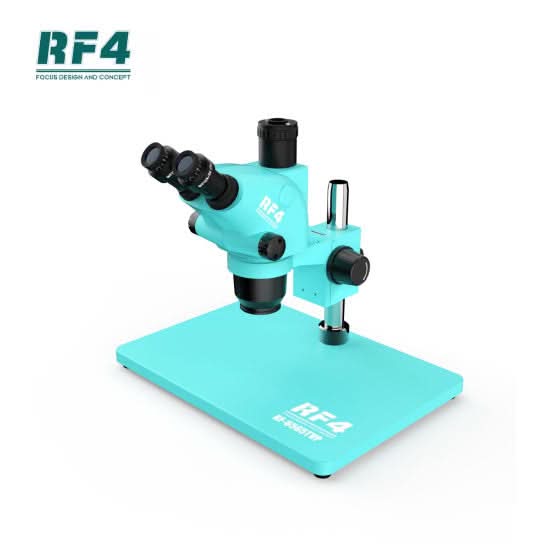

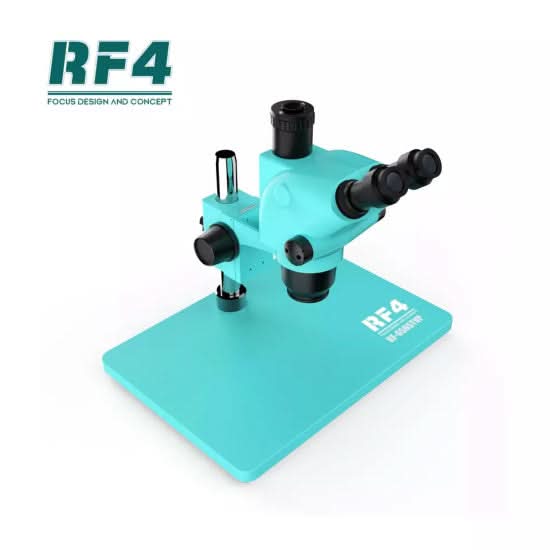

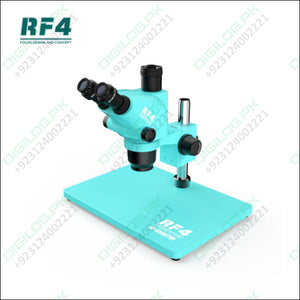

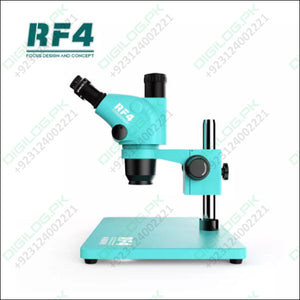

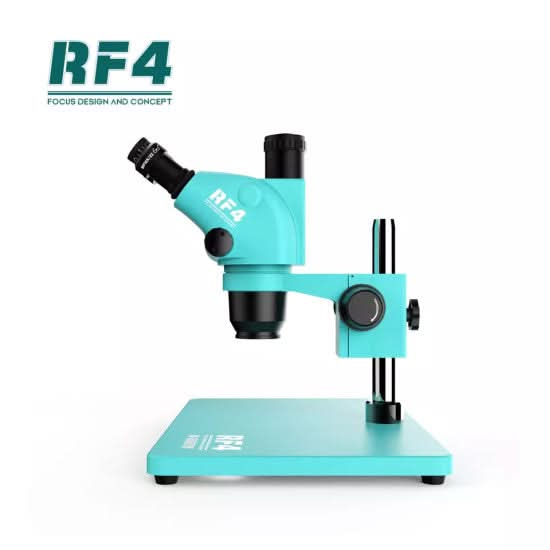

RF4 RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work
Features:
- 6.5X-65X zoom magnification power with crisp sharp images
- Widefield of view* Sturdy all-metal pillar stand
- High resolution with great flatness and contrast, giving sharp and clear images
- Sharp stereo erect images with a wide field of view
- Crystal clear original true-co microscope images
- Large working distance Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Adjustable interpupillary distance
- Adjustable bracket, lifting range: 50mm, easy to operate
- Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 19.5X-195X, interpupillary distance 0.92-9.2mm, bilateral visibility adjustable
- Eyepiece: WF10X/22mm High Eyepiece
- Effective distance: 110mm, the use of auxiliary objective lens can be extended 30mm-287mm
- Magnification:6.5X-65X
Specification:
- 6.5X-65X trinocular microscope
- Magnification: big continuous zoom 6.5X to 65X
- Head: 45-degree inclined 360-degree swivelling trinocular
- Wide Angle Eyepiece: WF10X/22MM
- Barlow Lens: 0.5X & 0.7X (optional)
- Objective: 0.65-6.5X
- Camera connector: 1/2CTV Adapter
- Monitor and eyepiece. Synchronous zoom
- Camera: Different models optional
- Boom Stand: 240mm φ32mm pillar, 380mm*260mm base
- Accessories: 144 adjustable led light & dust-proof Lens
Package includes:
- 1 x Microscope Head
- 1 x Dust bag
- 1 x 0.5x or 0.7x zooming lens ( choose any 1 )
- 1 x 1/2 CTV adapter
- 1 x Dust proof mirror
- 1 x Focusing arm
- 1 x Metal Base 380mm*260mm
- 1 x Height limiting fixed shaft
- 2 x WF10X22 Dual Zoom Eyepiece
- 2 x New Rubber eye guards (RF4-EM5)
- 1 x Double-sided loading plate
- 1 x LED light with adjustable controller
- 1 x Safety manual
