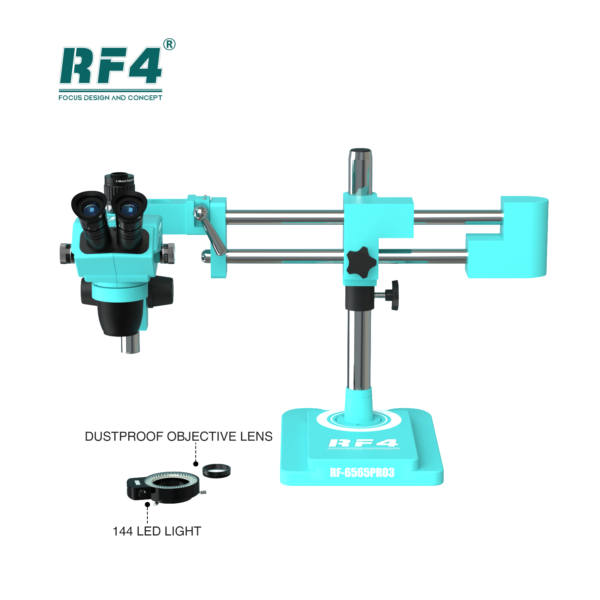

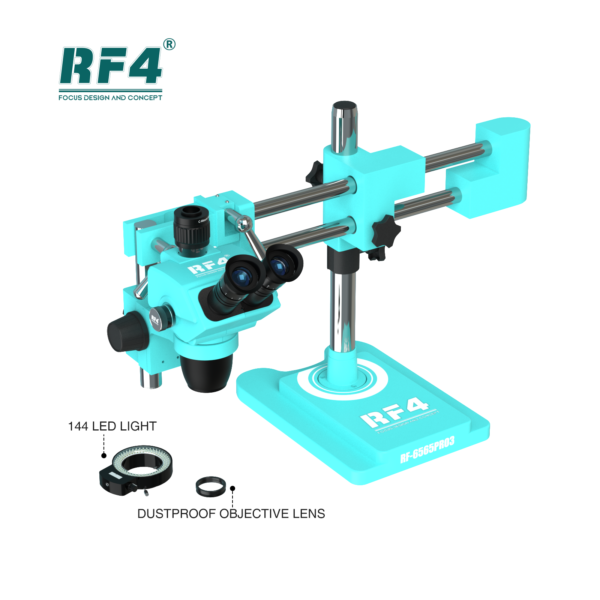

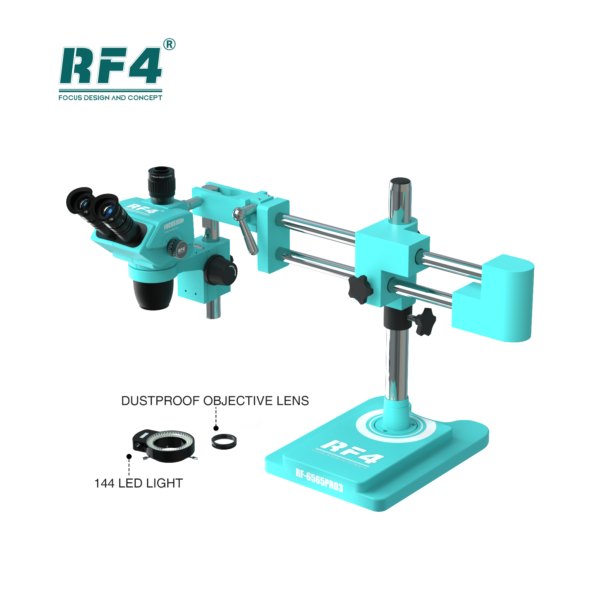

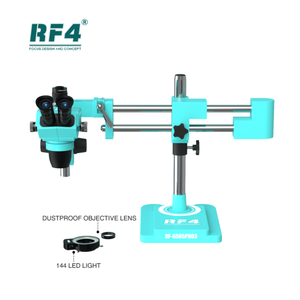

RF4 RF-6565PRO3 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Double-ARM Boom Stand

Features:

• Fine concave-convex design, enhanced anti-slip, does not damage the phone film various problems

• The meticulous and small round hole texture greatly increases the friction coefficient and is not easy to slip off

• Smooth and smooth, no burrs, no damage to the phone when used

• The bottom is non-slip, fits the table firmly, not easy to slide

• Four-sided multi-scale design, accurate measurement, and convenient measurement of the area

• A multifunctional aluminum alloy base can fix your microscope, aluminum alloy mat can protect your phone motherboard from static electricity damage

• High Precision maintenance pad is widely used in repairing mobile phone motherboards, also green oil, solder paste, screwdriver, chip, material, assemble&disassemble tools, and other phone repair consumable items can be put in this storage pad, which is easy to take

• An integrated pad can prevent scratching with welding workbench rubber

Specification:

• Magnification: Continuous zoom 6.5X to 65X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Objective: 0.65-6.5X

• Camera connector: 0.5X

• Monitor and eyepiece: Synchronous zoom

• Accessories: 144 adjustable LED lights & dust proof Lens

• Boom Stand: 51cm double-arm (overall length: 76cm) 41cm high pillar, 200mm*245mm solid cast steel base

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

Package includes:

• 1 x Microscope

• 1 x Aluminum Alloy Plate

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x 0.5X CTV Lens

• 1 x Silicone pad
