Resistive Film Fsr Force Sensitive Pressure Sensor Rp-l-110

Resistive Film Fsr Force Sensitive Pressure Sensor Rp-l-110

Regular price Rs 1,500
Regular price Sale price Rs 1,500
Sale Sold out
Shipping calculated at checkout.

SKU:B205,nbp

NOTIFY ME WHEN IN STOCK

RP-L-110 FSR force-sensitive resistor pressure sensor resistive film pressure sensor flexible force-sensitive resistor

Features:

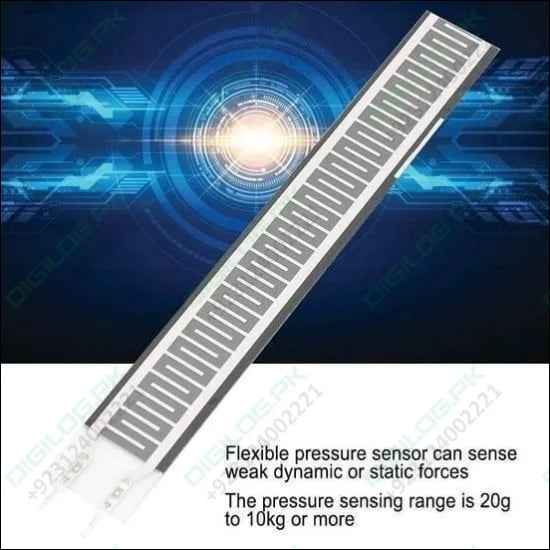

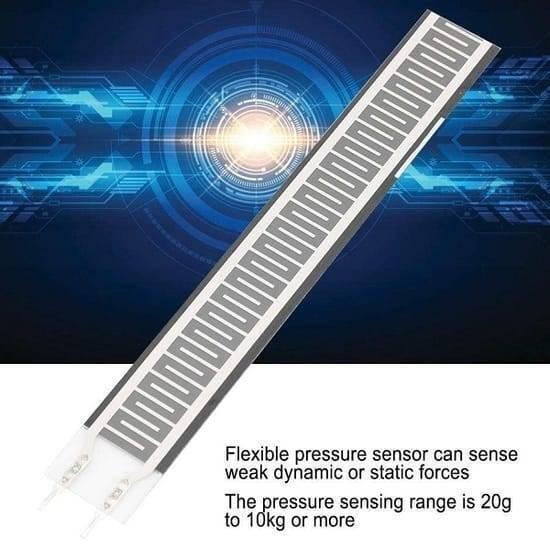

  • The film pressure sensor is flexible and slim, characterized by low energy consumption and fast response.
  • The flexible pressure sensor can sense weak dynamic or static forces.
  • The top layer is a flexible film and a pressure-sensitive layer folded on the film.
  • The pressure detection range is 20g to 10 kg or more.
  • Precise detection, fast response, long life.

Specifications:

  1. Detection range: 20g ~ 10kg or more
  2. Trigger force: 20g, trigger when resistance <200kO default
  3. Length: 10cm overall length 11.5cm
  4. Thickness: 0.35mm
  5. Shape: sheet, flexible
  6. No trigger resistance: > 10MO
  7. Activation time: <0.01 s
  8. Hysteresis: + 10%, (RF + -RF -) / FR +, force 1000g
  9. Response time: <10 ms
  10. EMI electromagnetic interference: not generated
  11. ESD electrostatic discharge: not sensitive to ESD
  12. Drift: <5%, load 2.5 kg, 24 H

Package Includes:

  • 1 x RPL110 FSR sensor

Resistive Film Fsr Force Sensitive Pressure Sensor Rp-l-110

Resistive Film Fsr Force Sensitive Pressure Sensor Rp-l-110

Resistive Film Fsr Force Sensitive Pressure Sensor Rp-l-110

View full details

Description

RP-L-110 FSR force-sensitive resistor pressure sensor resistive film pressure sensor flexible force-sensitive resistor

Features:

  • The film pressure sensor is flexible and slim, characterized by low energy consumption and fast response.
  • The flexible pressure sensor can sense weak dynamic or static forces.
  • The top layer is a flexible film and a pressure-sensitive layer folded on the film.
  • The pressure detection range is 20g to 10 kg or more.
  • Precise detection, fast response, long life.

Specifications:

  1. Detection range: 20g ~ 10kg or more
  2. Trigger force: 20g, trigger when resistance <200kO default
  3. Length: 10cm overall length 11.5cm
  4. Thickness: 0.35mm
  5. Shape: sheet, flexible
  6. No trigger resistance: > 10MO
  7. Activation time: <0.01 s
  8. Hysteresis: + 10%, (RF + -RF -) / FR +, force 1000g
  9. Response time: <10 ms
  10. EMI electromagnetic interference: not generated
  11. ESD electrostatic discharge: not sensitive to ESD
  12. Drift: <5%, load 2.5 kg, 24 H

Package Includes:

  • 1 x RPL110 FSR sensor
