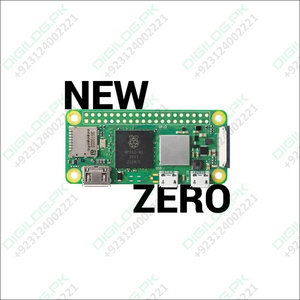

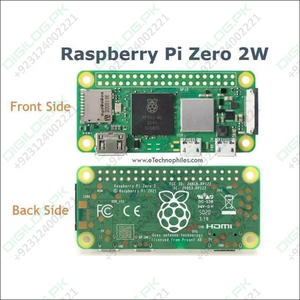

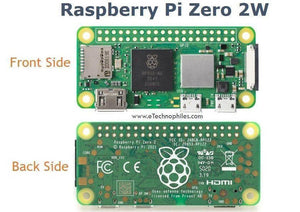

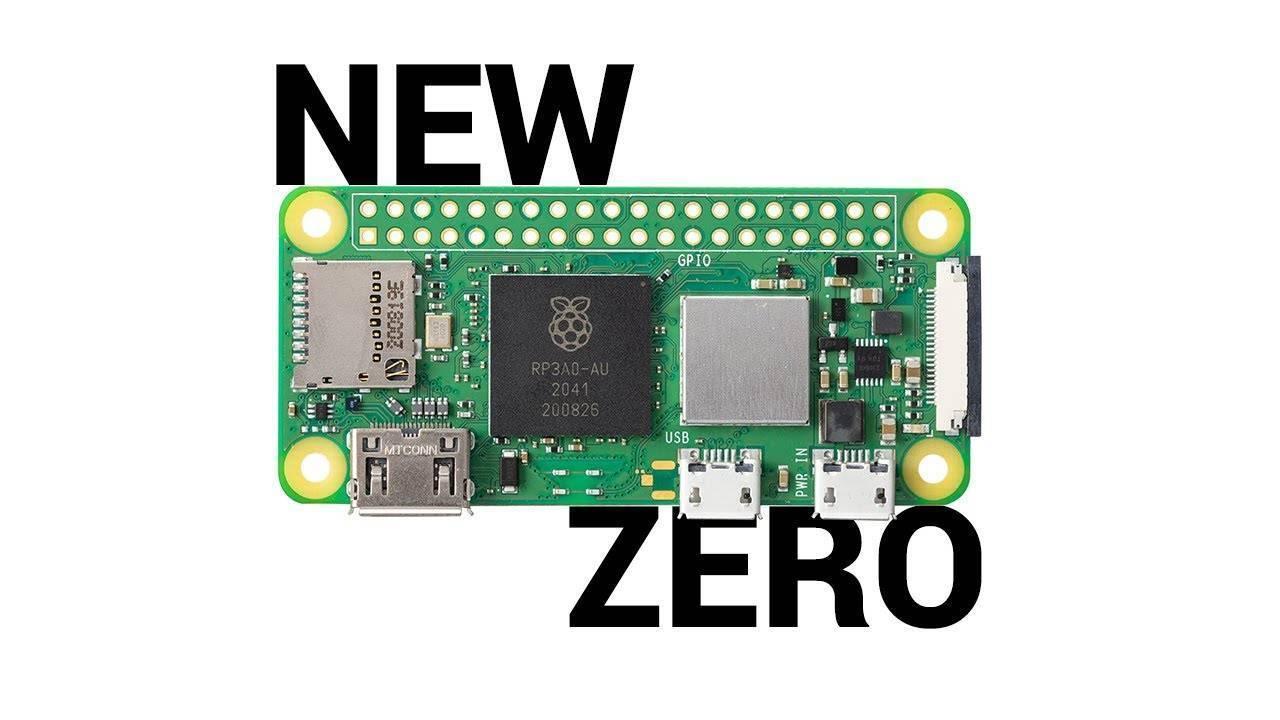

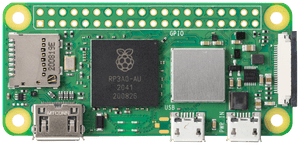

Meet the new Raspberry Pi Zero 2 W:

Raspberry Pi Zero 2 W is the latest product in the most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.

The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification. The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header.

It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed. Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

Raspberry Pi Zero 2 W Features and Specs:

• Board + Official PSU + Header
• Board + Official PSU & Casing + Header
• Quad-core 64-bit A53 CPU
• 1GHz @ Arm Cortex-A53
• 512MB RAM
• Processor: Broadcom BCM2710A1
• Micro USB Power
• Single-threaded performance is 40% faster
• x5.2 faster than a single CPU on Raspberry Pi Zero

WHAT'S NEW?

Raspberry Pi Zero 2 W	FEATURES	Raspberry Pi Zero 2
Arm Cortex-A53	Core Type	ARM v7
Broadcom BCM2710A1	Processor / SoC Type	Broadcom BCM2835
Quad-core 64-bit	Core Type	Single-core 32-bit
512 MB	Memory	512 MB
1 GHz	CPU Clock	1 GHz
2.4 GHz IEEE 802.11b/g/n Bluetooth 4.2, Bluetooth Low Energy (BLE) Onboard antenna	Wireless Lan	2.4 GHz IEEE 802.11n Bluetooth 4.1, Bluetooth Low Energy (BLE) Onboard antenna
5V DC 2.5A	Input Power	5V DC 2.5A
Improved PCB antenna	Antenna	PCB antenna
30 seconds	RPOS Boot-Time	90 seconds
1.2 GHz	Overclocked	1.1 GHz
164 seconds	Single-Threaded Performance	230 seconds
37 seconds	CPU Performance	230 seconds

PERFORMANCE:

• Single-threaded performance is 40% faster
• Quad CPU performance is x5.2 faster than a single CPU on Raspberry Pi Zero
• Raspberry Pi OS boots to GUI in 30 seconds VS 90 seconds for Raspberry Pi Zero (x3 faster)
• 64-bit Raspberry Pi OS available too
• IC can be overclocked to 1.2GHz if the cooling solution is added
• Standalone Zero 2 W will not overheat at 1GHz if the ambient is below 40°C

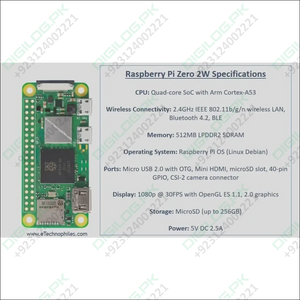

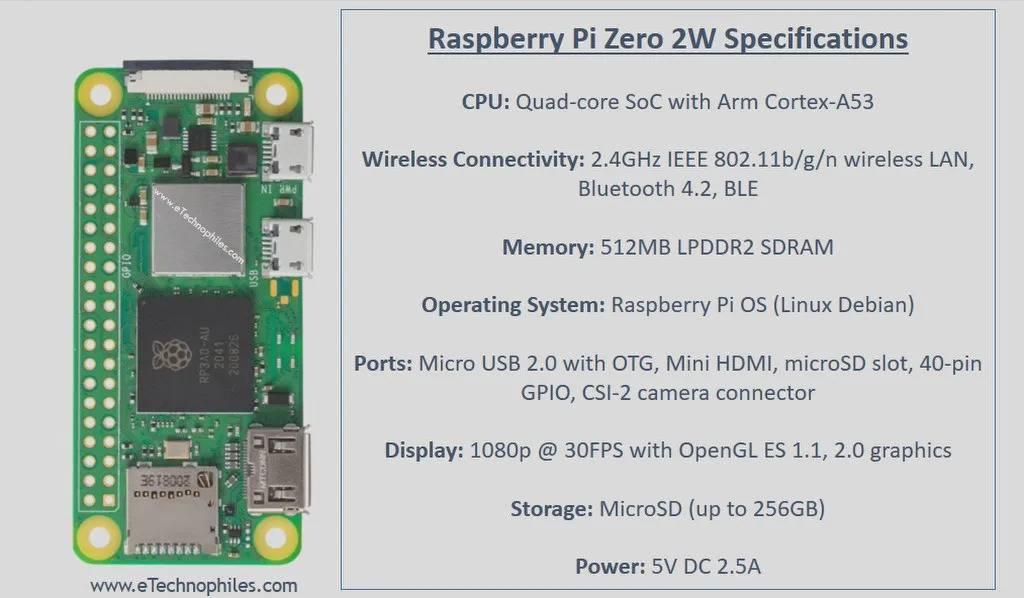

SPECIFICATION:

• Quad-core 64-bit A53 CPU
• 1GHz @ Arm Cortex-A53
• RAM: 512MB LPDDR2
• Processor: Broadcom BCM2710A1
• Input power: 5V DC 2.5A
• Connectivity
  • 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
  • 1 × USB 2.0 interface with OTG
  • HAT-compatible 40-pin I/O header footprint
  • microSD card slot
  • Mini HDMI port
  • Micro USB Power
  • Composite video & rest pins via solder test points CSI camera connector
• Operating temperature: -20°C to +70°C
• Form factor compatible with the original Pi Zero W
• Multimedia
  • H.264, MPEG-4 decode (1080p30)
  • H.264 encode (1080p30)
  • OpenGL ES 1.1, 2.0 graphics
• Video
  • HDMI Interface
  • Composite video
• Size (L*W): 60mm x 30mm

Package Includes:

• 1 x Raspberry Pi Zero 2 W
