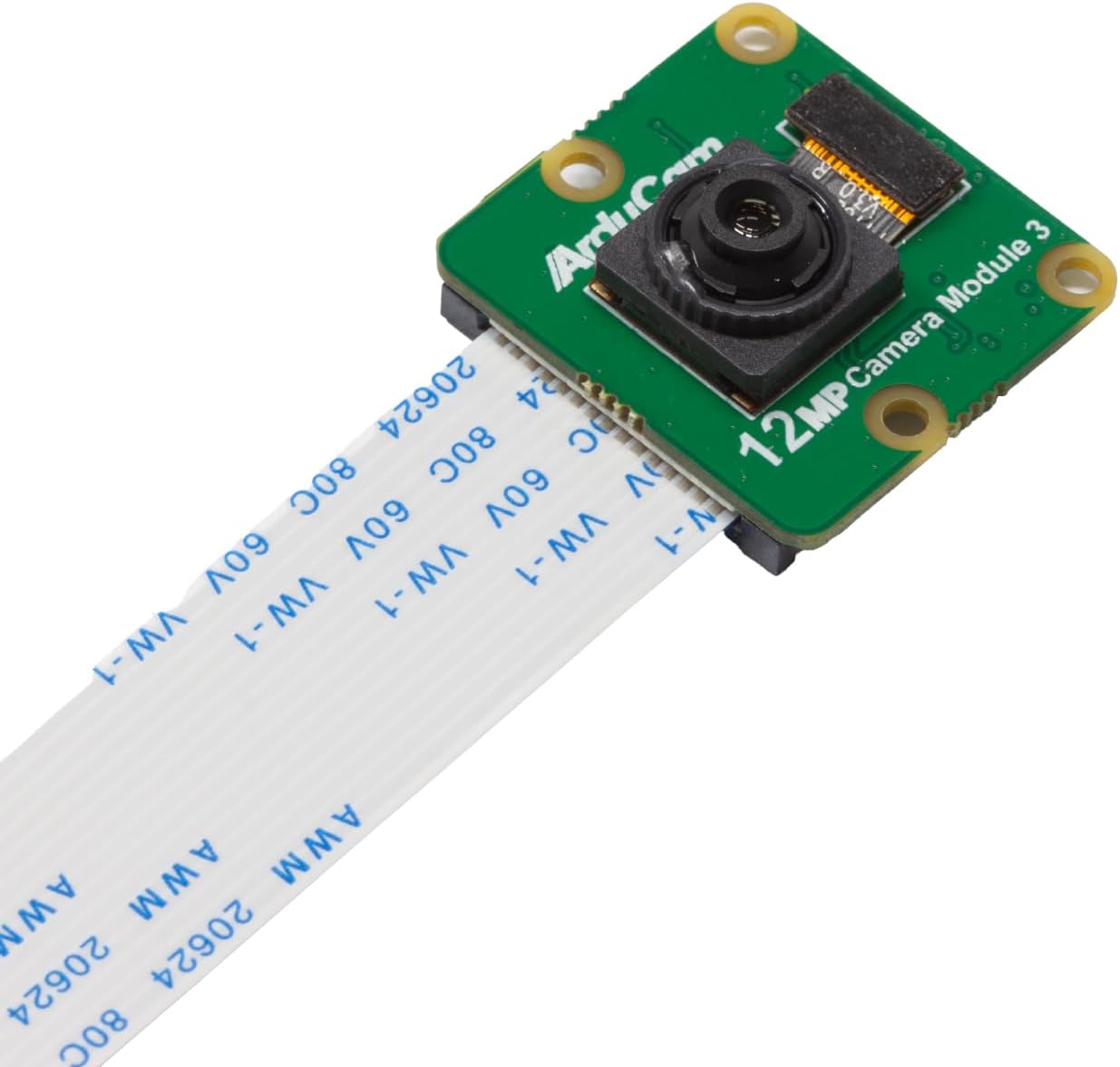

Raspberry pi Camera 12MP V3

Compact camera from Raspberry Pi. It offers an
IMX708 12-megapixel sensor with HDR, and features phase detection autofocus. Camera
Module 3 is available in standard and wide-angle variants, both of which are available
with or without an infrared cut filter.
and features an HDR mode up to 3 megapixels. Its operation is fully supported by the
libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it
easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is
compatible with all Raspberry Pi computers.1
The PCB size and mounting holes remain the same as for Camera Module 2.
The Z dimension differs: due to the improved optics, Camera Module 3 is several
millimetres taller than Camera Module 2.

Raspberry pi Camera 12MP

Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor

High signal-to-noise ratio (SNR)

Built-in 2D Dynamic Defect Pixel Correction (DPC)

Phase Detection Autofocus (PDAF) for rapid autofocus

QBC Re-mosaic function

HDR mode (up to 3 megapixel output)

CSI-2 serial data output

2-wire serial communication (supports I2C fast mode and fast mode plus)

2-wire serial control of focus mechanism

Resolution: 11.9 megapixels

Sensor size: 7.4mm sensor diagonal

Pixel size: 1.4μm × 1.4μm

Horizontal/vertical: 4608 × 2592 pixels

Diagonal field of view: 75 degrees (Camera Module 3, Camera Module 3 NoIR), 120 degrees (Camera Module 3 Wide, Camera Module 3 NoIR Wide)

Common video modes: 1080p50, 720p100, 480p120

Output: RAW10    https://docs.arducam.com/Nvidia-Jetson-Camera/Native-Camera/imx708/

IR cut filter: Integrated in standard variants; not present in NoIR variants

Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

Ribbon cable length: 200mm

Cable connector: 15 × 1mm FPC

Raspberry pi Camera 12MP

Sensor: Sony IMX708
Resolution: 11.9 megapixels
Sensor size: 7.4mm sensor diagonal
Pixel size: 1.4μm × 1.4μm
Horizontal/vertical: 4608 × 2592 pixels
Common video modes: 1080p50, 720p100, 480p120
Output: RAW10
IR cut filter: Integrated in standard variants; not present in NoIR variants
Autofocus system: Phase Detection Autofocus
Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
Ribbon cable length: 200mm
Cable connector: 15 × 1mm FPC
Operating temperature: 0°C to 50°C
Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive
2011/65/EU
