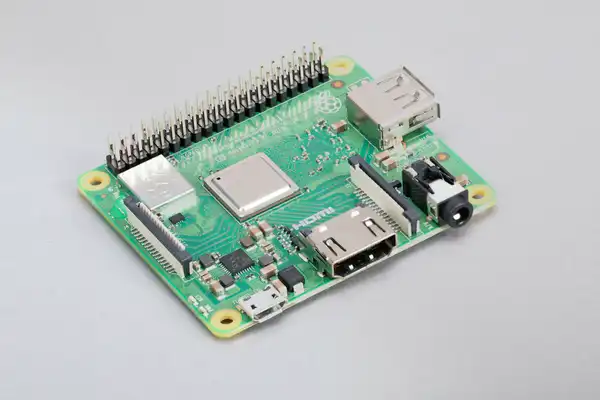

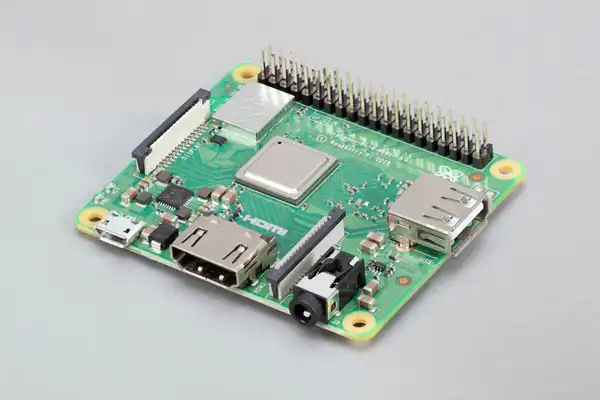

Raspberry Pi 3 Model A+

The Raspberry Pi 3 Model A+ combines a 1.4GHz 64-bit quad-core processor with dual-band wireless LAN and Bluetooth 4.2/BLE. Its compact board has the same mechanical footprint as the Raspberry Pi 1 Model A+, making it a practical choice for embedded projects and connected electronics.

Key Features

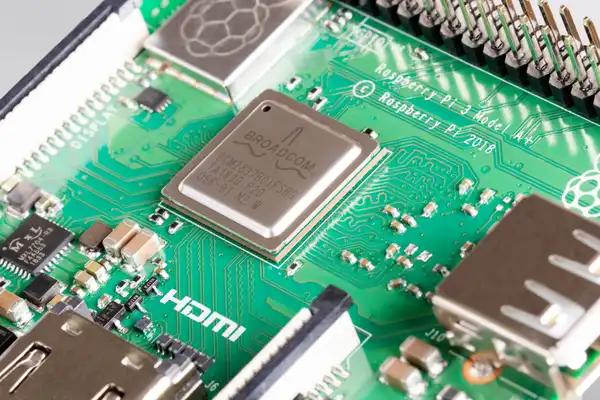

• Broadcom BCM2837B0 Cortex-A53 64-bit quad-core processor running at 1.4GHz
• 512MB LPDDR2 SDRAM
• Dual-band 2.4GHz and 5GHz 802.11 b/g/n/ac wireless LAN
• Bluetooth 4.2 with Bluetooth Low Energy (BLE)
• Extended 40-pin GPIO header for connecting project hardware

Display, Camera and Audio

• 1 × full-size HDMI port
• MIPI DSI display port
• MIPI CSI camera port
• 4-pole stereo output and composite video port

Multimedia Support

• H.264 and MPEG-4 decoding at 1080p30
• H.264 encoding at 1080p30
• OpenGL ES 1.1 and 2.0 graphics

Storage and Power

• MicroSD card support for the operating system and data storage
• 5V/2.5A DC input via micro USB connector
• 5V DC input via GPIO header
• Operating temperature: 0–50°C
