Pro'sKit MT-7616 4-in-1 Fiber Optical Power Meter – 8 Wavelengths, -70~+10 dBm, 30 mW Visual Fault Locator, RJ45 LAN Cable Tester, LED Flashlight
Pickup available at Digilog Electronics
Usually ready in 2 hours
The Pro'sKit MT-7616 is the long-reach version of Pro'sKit's 4-in-1 fiber optical power meter. It carries the same 8-wavelength InGaAs power meter, RJ45 LAN cable tester and LED work light as the MT-7615, but doubles the visual fault locator to 30 mW — enough red-laser energy to push a visible break indication 14–16 km down a single-mode span instead of 10–12 km.
That extra reach is what backbone and long-haul FTTH crews pay for: one technician can locate a break or a bad splice on a long feeder without driving to the far end. Optical power reads from -70 dBm to +10 dBm at 0.01 dB resolution in dB, dBm, nW, uW or mW, with Wave ID, REF measurement, self-calibration and 500 groups of storage, all running over 50 hours on a Micro-USB rechargeable lithium battery.
Key Features
- 30 mW visual fault locator ⚡ — 650 nm red laser reaches 14–16 km on single-mode fiber, twice the span of the 15 mW MT-7615

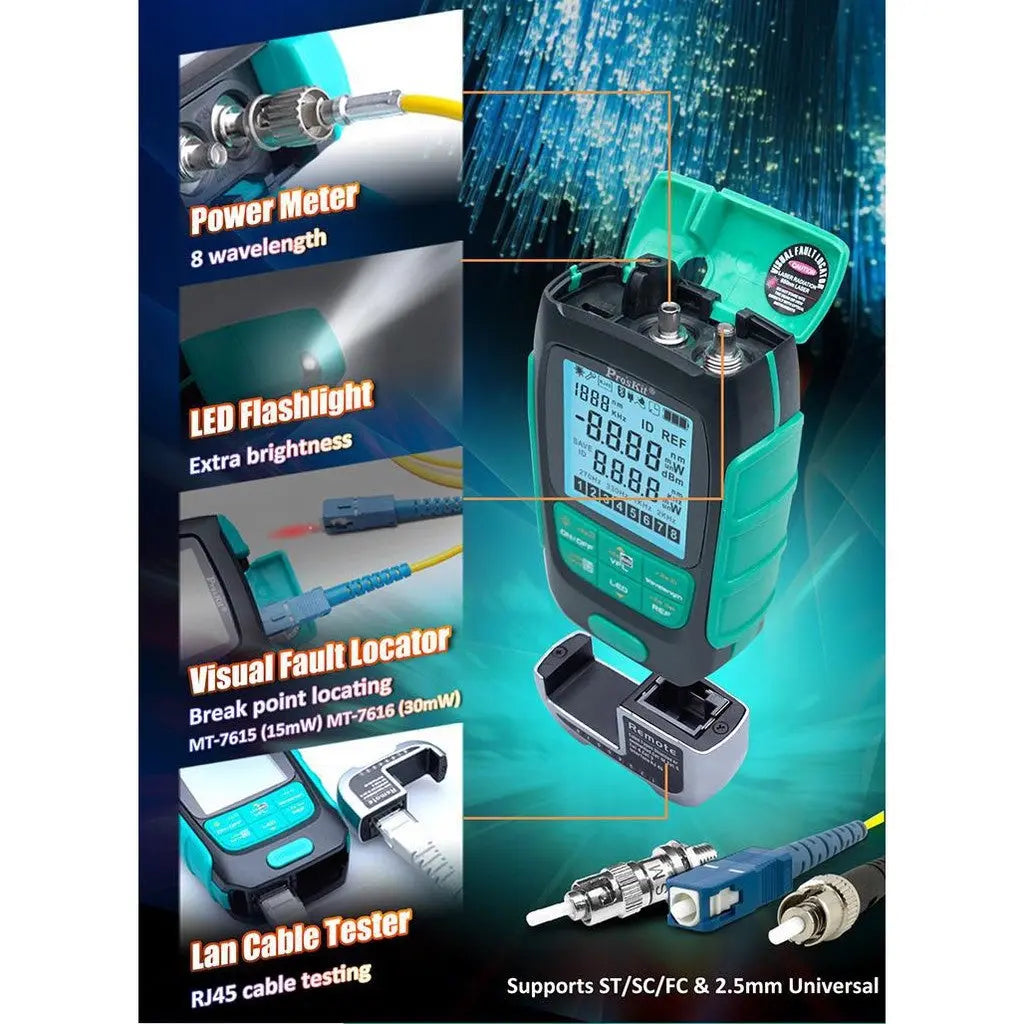

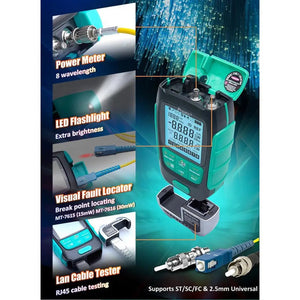

- 4 tools in one 🔧 — optical power meter, VFL, RJ45 LAN cable tester and LED flashlight in a 100 g pocket body

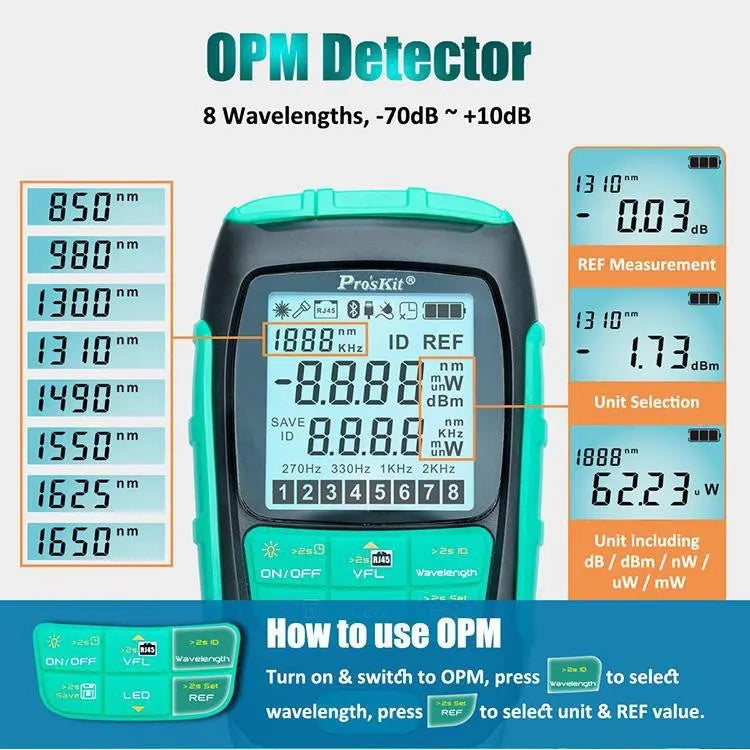

- 8 calibrated wavelengths 📏 — 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm on an InGaAs detector, -70 to +10 dBm at 0.01 dB

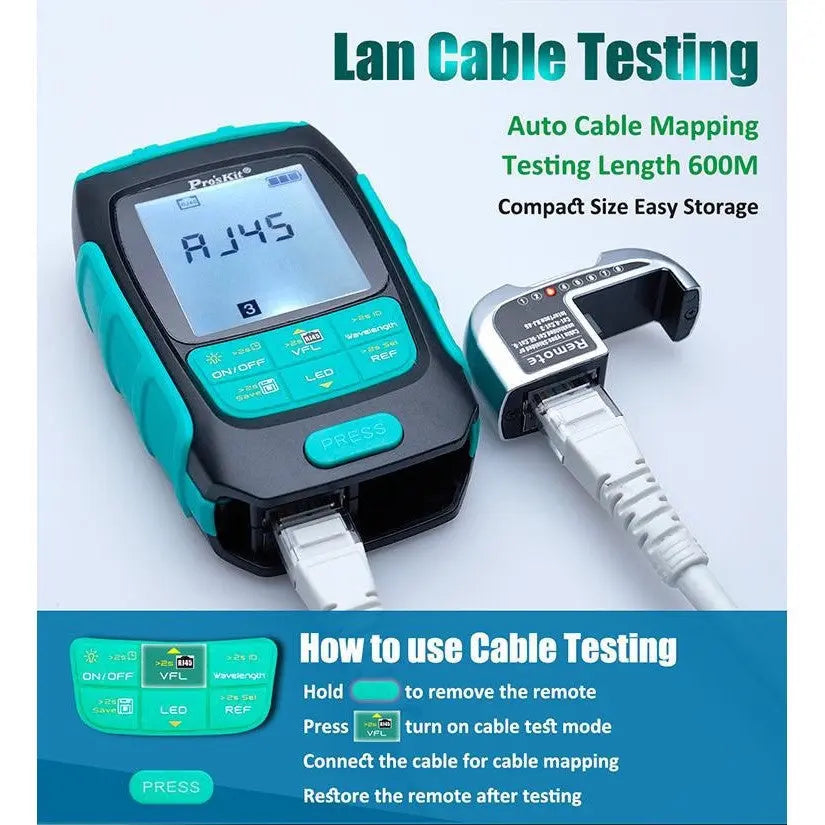

- RJ45 cable mapping ✅ — checks UTP/8P8C runs up to 600 m wire-by-wire with the remote identifier stored in the meter base
- Wave ID and modulation detection 🔍 — 270 Hz, 330 Hz, 1 kHz and 2 kHz tone recognition for positive fiber identification
- Rechargeable, all-day battery 🔋 — 3.7 V / 450 mAh Li-ion, Micro-USB charging, over 50 hours of power-meter runtime

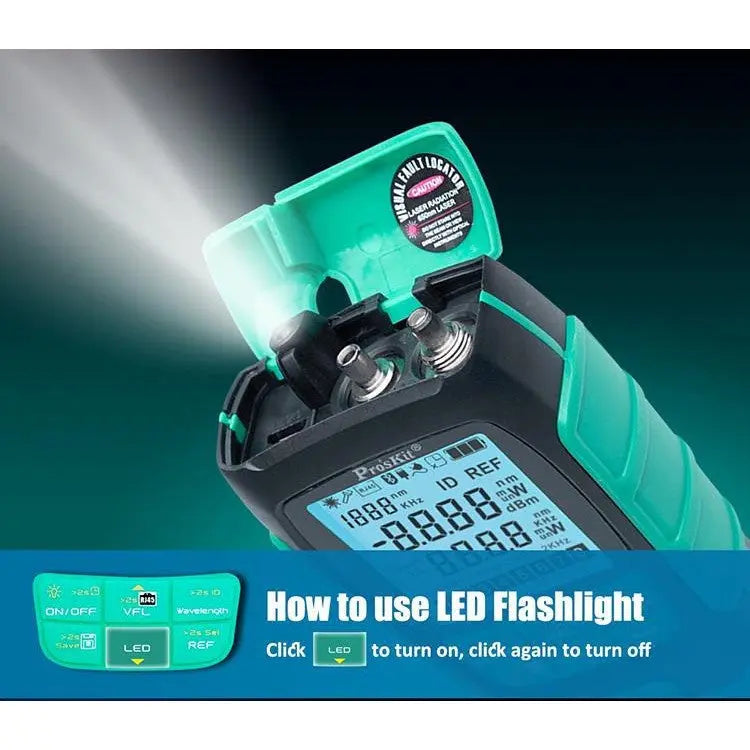

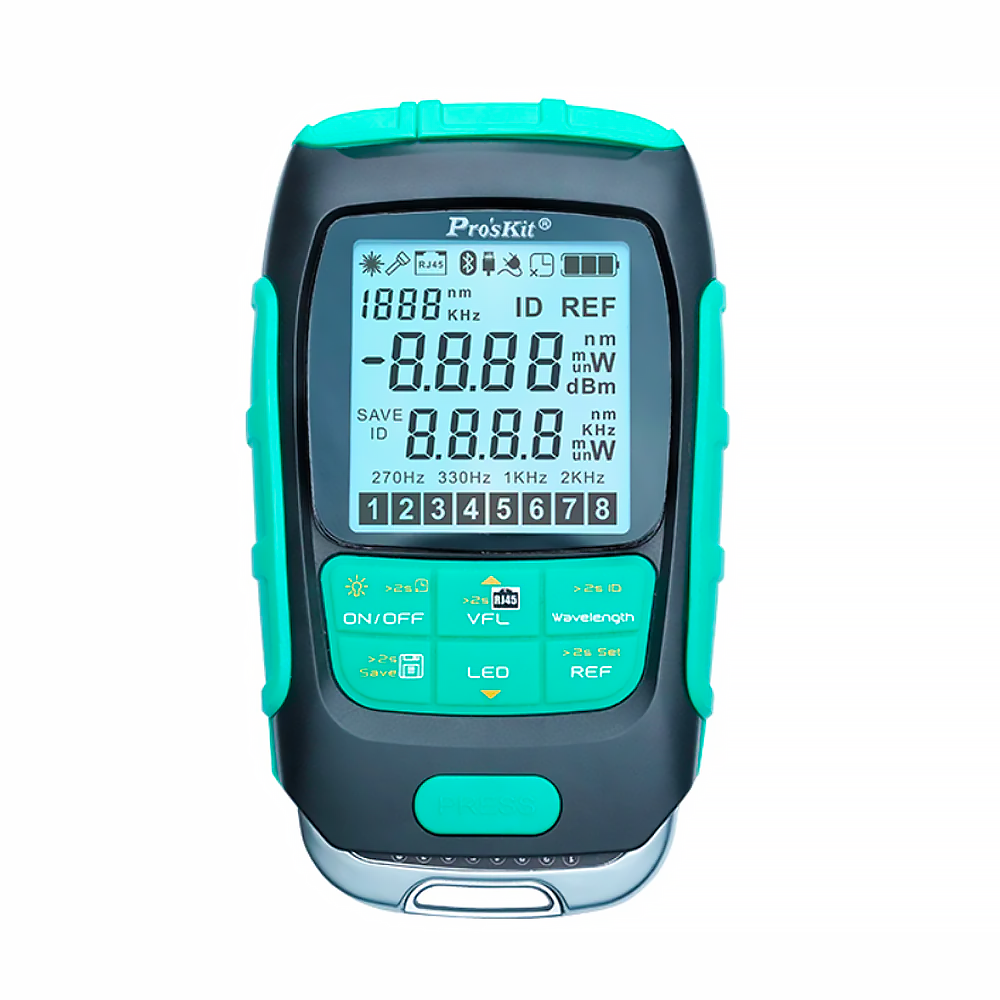

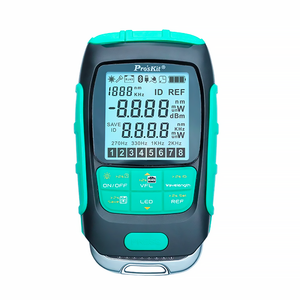

- Built for the field 🔧 — REF value setting, user self-calibration, 500-group memory, backlit LCD and an LED torch for dark joint boxes
Technical Specifications
| Model | Pro'sKit MT-7616 |
|---|---|
| Functions | Optical power meter + visual fault locator + LAN cable tester + LED flashlight |
| Detector Type | InGaAs |
| Wavelength Response Range | 700–1700 nm |
| Calibrated Wavelengths | 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm |
| Measuring Range | -70 to +10 dBm |
| Resolution | 0.01 dB |
| Accuracy | ±0.2 dB (1310 / 1550 nm), ±0.3 dB (1490 / 1625 / 1650 nm), ±0.4 dB (850 / 980 / 1300 nm) |
| Display Units | dB, dBm, nW, uW, mW |
| Optical Connector | 2.5 mm universal (ST / SC / FC) |
| Modulation Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz (Wave ID) |
| Data Storage | 500 groups |
| Other OPM Functions | Wavelength memory, self-calibration, REF value setting, backlight |
| VFL Output Power | 30 mW |
| VFL Wavelength | 650 ± 20 nm |
| VFL Test Distance | 14–16 km (single-mode fiber) |
| LAN Cable Tester | RJ45 UTP / 8P8C, up to 600 m, auto cable mapping, detachable remote |
| Battery | 3.7 V / 450 mAh Li-ion, rechargeable |
| Charging | Micro-USB, 5 V / 1 A |
| Working Time | More than 50 hours (power meter only) |
| Operating Temperature | -10 to 50 °C |
| Dimensions | 98 × 59 × 27 mm |
| Weight | 100 g |
Certifications: CE, RoHS | HS Code: 9027.50
