Pro'sKit MT-7615 4-in-1 Fiber Optical Power Meter – 8 Wavelengths, -70~+10 dBm, 15 mW Visual Fault Locator, RJ45 LAN Cable Tester, LED Flashlight
Pickup available at Digilog Electronics
Usually ready in 2 hours

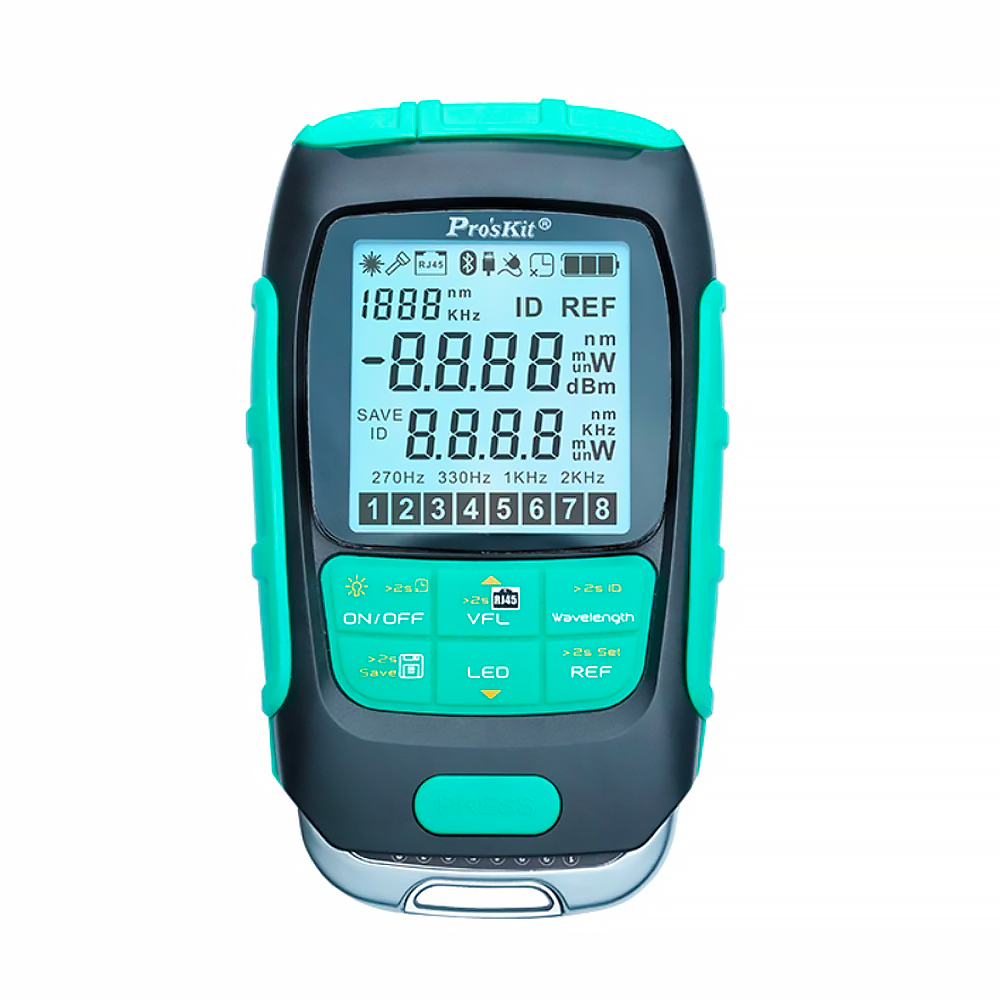

The Pro'sKit MT-7615 is a pocket-sized fiber optical power meter that puts four field instruments into one rechargeable handheld: an InGaAs optical power meter covering 8 calibrated wavelengths, a 15 mW red-laser visual fault locator, an RJ45 LAN cable tester with a detachable remote, and an LED work light. FTTH installers, ISP and cable-operator technicians and network engineers can commission a link, hunt a break and map a patch lead without carrying three separate testers.
Optical power reads from -70 dBm to +10 dBm with 0.01 dB resolution in dB, dBm, nW, uW or mW, with Wave ID, wavelength memory, REF (relative) measurement and 500 groups of on-board data storage. The 3.7 V lithium battery charges over Micro-USB and runs for more than 50 hours in power-meter mode, so a full working week between charges is normal.
Key Features

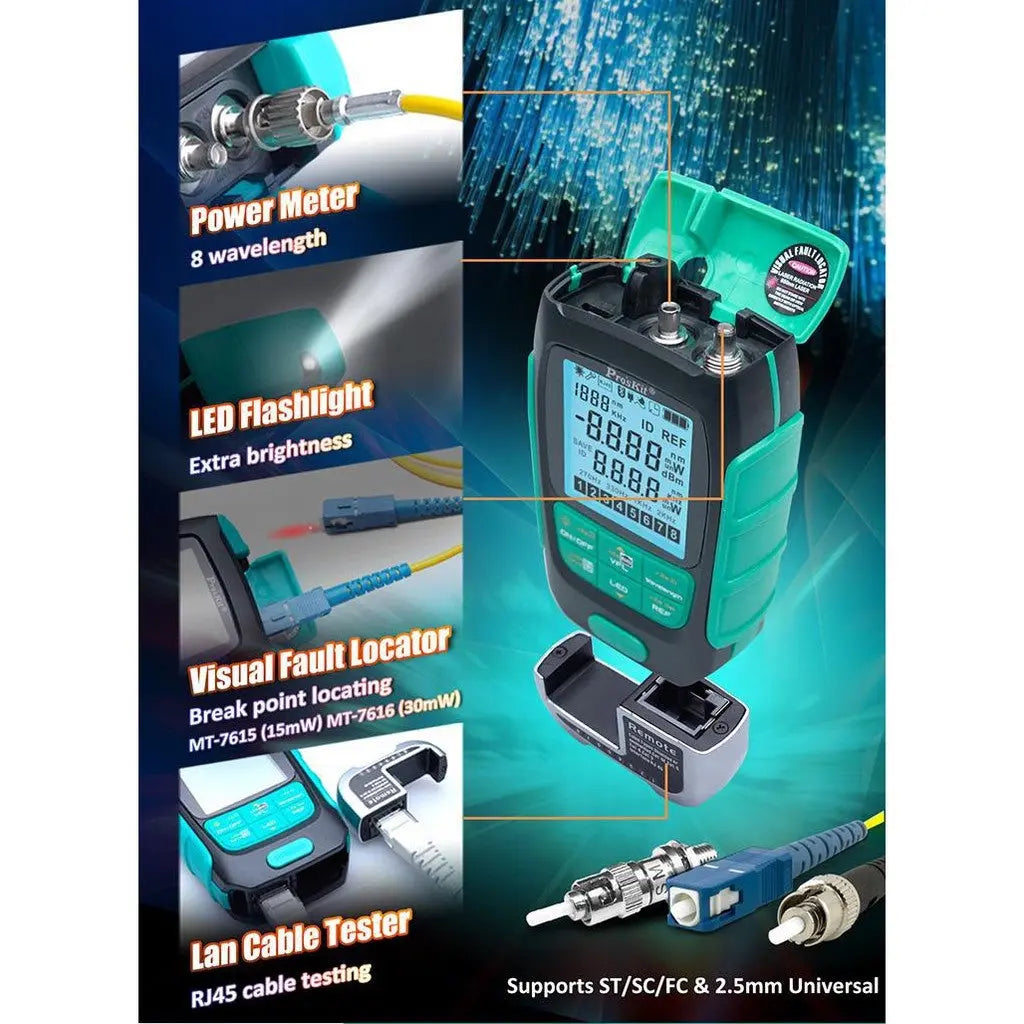

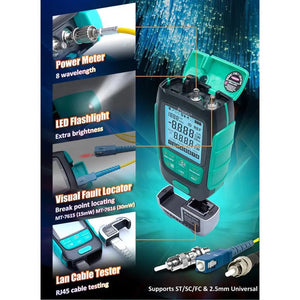

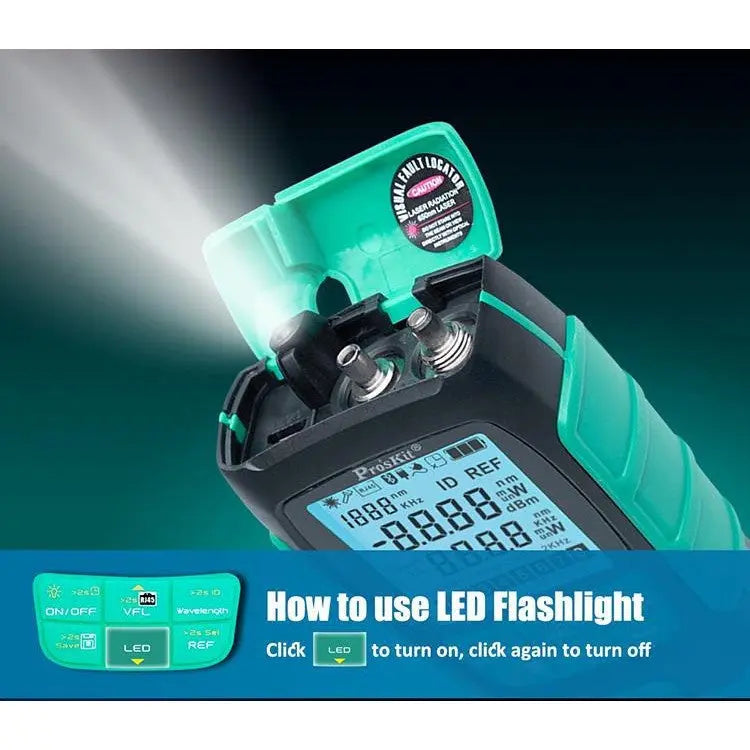

- 4 tools in one ⚡ — optical power meter, visual fault locator, RJ45 LAN cable tester and LED flashlight in a 100 g body

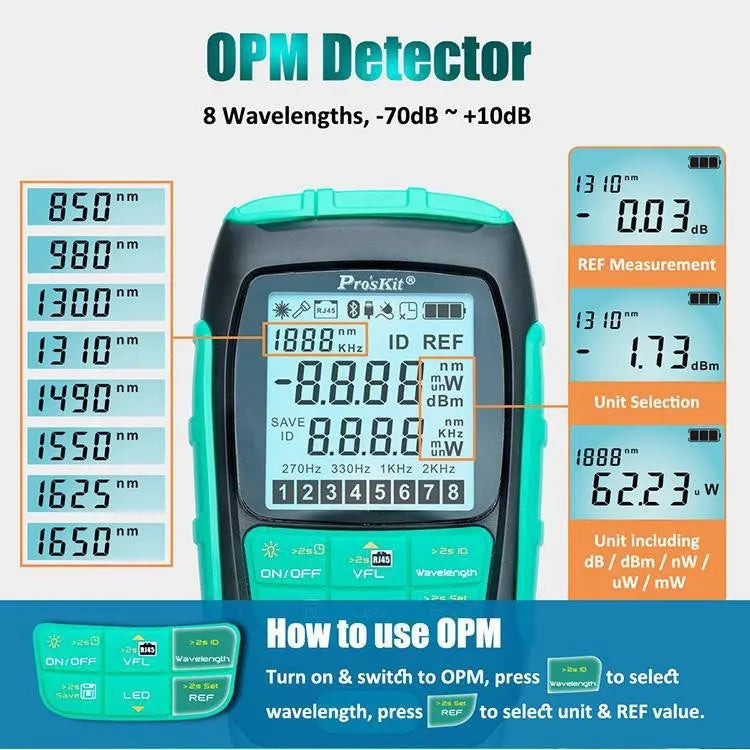

- 8 calibrated wavelengths 📏 — 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm on an InGaAs detector, -70 to +10 dBm
- 15 mW visual fault locator 🔧 — 650 nm red laser traces breaks and bad splices up to 10–12 km on single-mode fiber, continuous or flashing

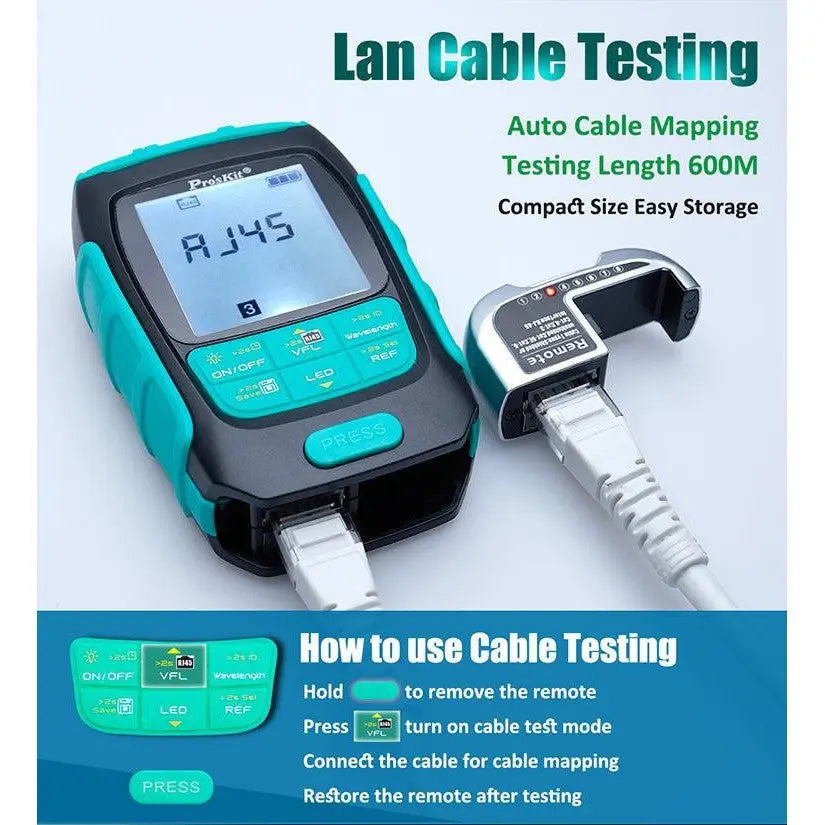

- RJ45 cable mapping ✅ — tests UTP/8P8C runs up to 600 m wire-by-wire using the remote identifier that clips into the base of the meter
- Wave ID and modulation detection 🔍 — recognises 270 Hz, 330 Hz, 1 kHz and 2 kHz tones so you can identify the fiber you are on
- Rechargeable, all-day battery 🔋 — 3.7 V / 450 mAh Li-ion, Micro-USB charging, over 50 hours of power-meter runtime
- Field-ready measurement tools 🔧 — REF value setting, user self-calibration, 500-group memory and a backlit LCD for dark risers and manholes
Technical Specifications
| Model | Pro'sKit MT-7615 |
|---|---|
| Functions | Optical power meter + visual fault locator + LAN cable tester + LED flashlight |
| Detector Type | InGaAs |
| Wavelength Response Range | 700–1700 nm |
| Calibrated Wavelengths | 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm |
| Measuring Range | -70 to +10 dBm |
| Resolution | 0.01 dB |
| Accuracy | ±0.2 dB (1310 / 1550 nm), ±0.3 dB (1490 / 1625 / 1650 nm), ±0.4 dB (850 / 980 / 1300 nm) |
| Display Units | dB, dBm, nW, uW, mW |
| Optical Connector | 2.5 mm universal (ST / SC / FC) |
| Modulation Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz (Wave ID) |
| Data Storage | 500 groups |
| Other OPM Functions | Wavelength memory, self-calibration, REF value setting, backlight |
| VFL Output Power | 15 mW |
| VFL Wavelength | 650 ± 20 nm |
| VFL Test Distance | 10–12 km (single-mode fiber) |
| LAN Cable Tester | RJ45 UTP / 8P8C, up to 600 m, auto cable mapping, detachable remote |
| Battery | 3.7 V / 450 mAh Li-ion, rechargeable |
| Charging | Micro-USB, 5 V / 1 A |
| Working Time | More than 50 hours (power meter only) |
| Operating Temperature | -10 to 50 °C |
| Dimensions | 98 × 59 × 27 mm |
| Weight | 100 g |
Certifications: CE, RoHS | HS Code: 9027.50
Similar Products

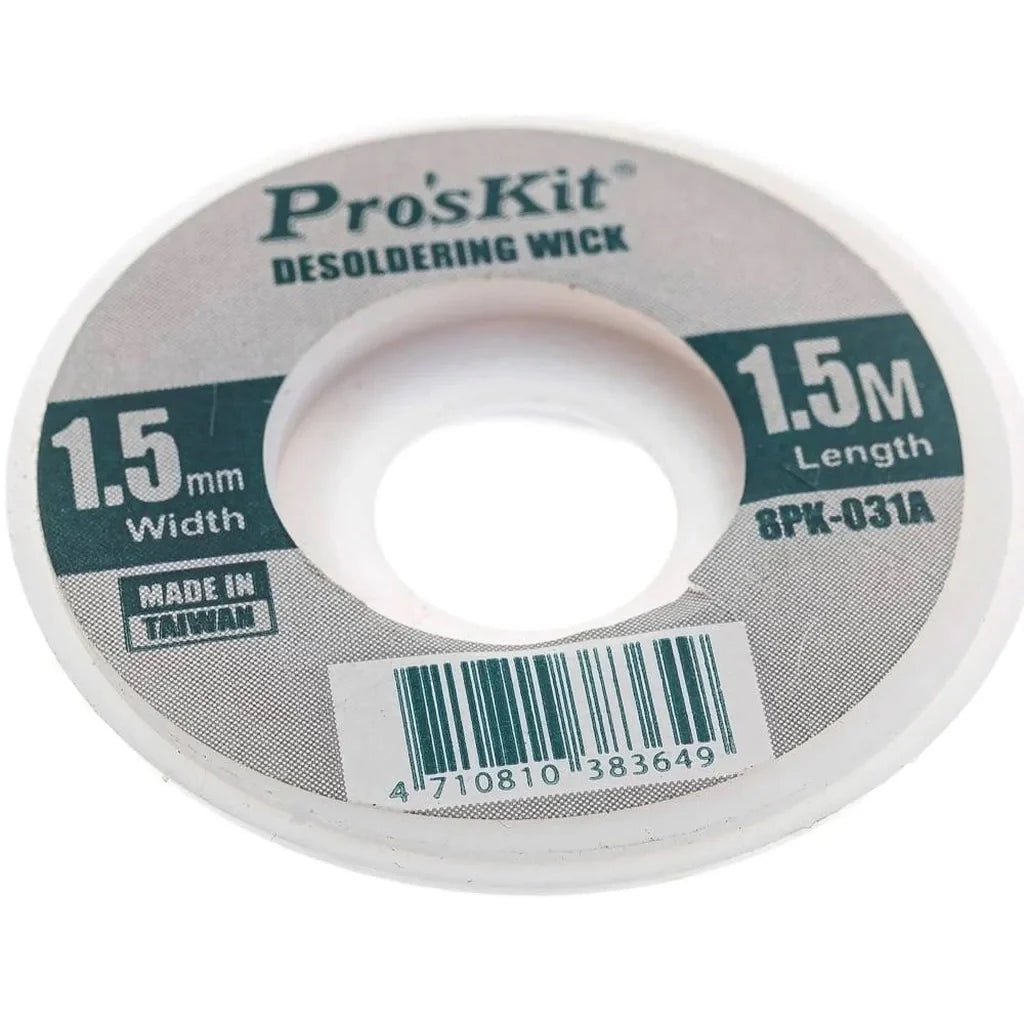

Proskit Desoldering Wire For Width 1.5mm 8PK031C 1.5m Solder Wick

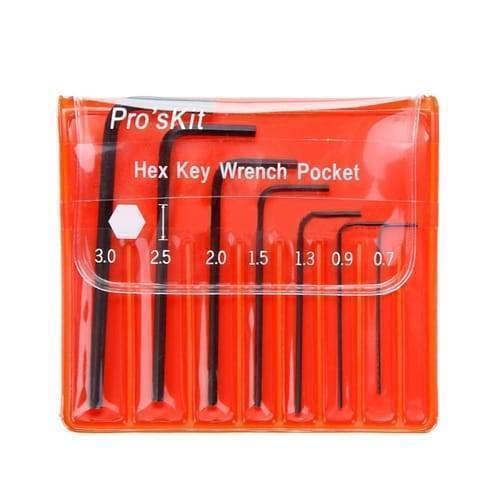

Miniature l Key Wrench Screwdriver Kit Hex Key Set Allen 7pcs 0.7-3.0mm 8pk-022 Proskit
