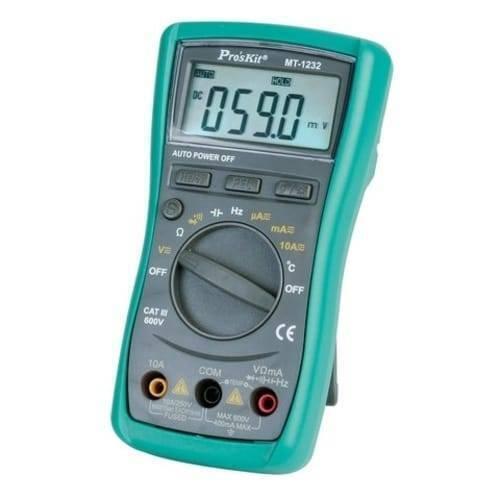

Proskit Autorange Digital Multimeter Mt 1232 For Ac Dc Voltage Current Resistance Temperature Measurement Tester

Digital multimeter measures AC/DC current, voltage, resistance, capacity, frequency and tests continuity and diodes. Due to its complete functions, high measurement accuracy and convenient operation, the multimeter is an ideal tool for industrial and research applications as well as for radio fans and household.

Features Of Professional Pro's Kit MT-1232 2.1Inch Digital Auto Multimeter:

• Large 3 ¾ LCD (3999)
• Functions:
  • AC/DC voltage and current
  • resistance
  • frequency
  • capacitance
  • continuity (with buzzer)
  • diode test
  • temperature
• No transistor and LED test
• Relative measurement mode
• Data hold function
• Auto ranging
• Overload protection with overrange indication on the display
• Input alert
• Auto power off
• Low battery indication

Specifications Of Proskit MT-1232 Automatic Level Digital Multimeter:

1. Model number : MT-1232
2. Color : Green + grey + red + yellow
3. LCD Display 2.1 inch

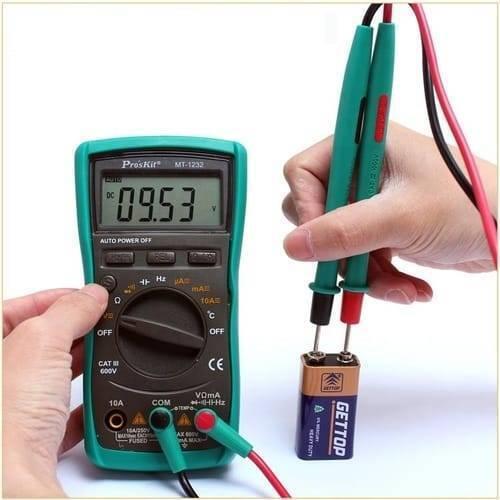

4. DC Voltage :
   • 400mV / 4V / 40V / 400V +/- (0.5% + 4d)
   • 600V +/- (1.0% + 4d)
5. AC Voltage :
   • 4V / 40V / 400V +/- (0.8% + 6d)
   • 600V +/- (1.0% + 6d)
6. DC Current :
   • 400uA / 4000uA +/- (1.0% + 10d),
   • 40mA / 400mA +/- (1.0% + 10d)
   • 10A +/- (1.2% + 10d)
7. AC Current :
   • 400uA / 4000uA +/- (1.5% + 10d)
   • 40mA / 400mA +/- (1.5% + 10d)
   • 10A +/- (2.5% + 15d)
8. Resistance :
   • 400 +/- (0.8% + 5d)
   • 4k / 40k / 400K +/- (0.8% + 4d)
   • 4M +/- (0.8% + 4d)
   • 40M +/- (1.2% + 10d) ohm
9. Capacitance :
   • 4nF +/- (0.5% + 90d)
   • 40nF / 400nF / 4uF / 40uF +/- (3.5% + 8d)
   • 100uF +/- (5.0% + 8d)

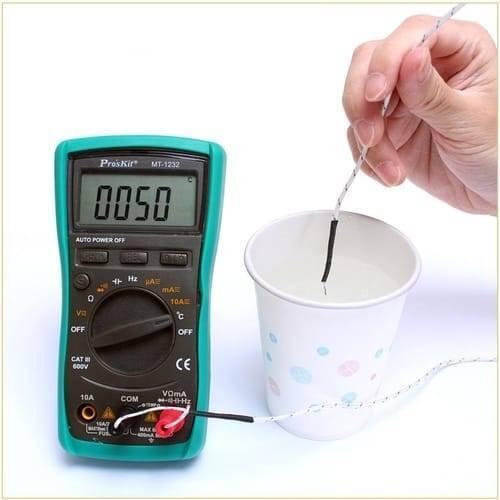

10. Temperature:
    • (-20 °C~1000 °C) < 400 ± (1.0% + 5d)
      (-20 °C~1000 °C) ≥ 400 ± (1.5% + 15d)
11. Frequency :
    • 1 / 10 / 100Hz +/- (0.5% + 10d)
    • 1K / 10K / 100KHz +/- (0.5% + 10d)
    • 1 / 10MHz +/- (0.5% + 10d)

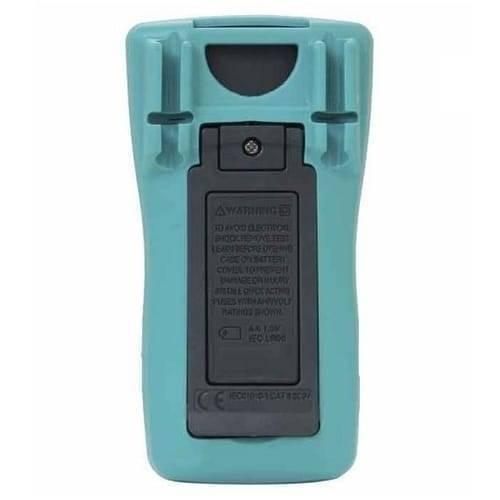

12. Power Supply : 2 x AA batteries
13. Dimensions: 5.71 in x 3.03 in x 1.61 in (14.5 cm x 7.7 cm x 4.1 cm)
