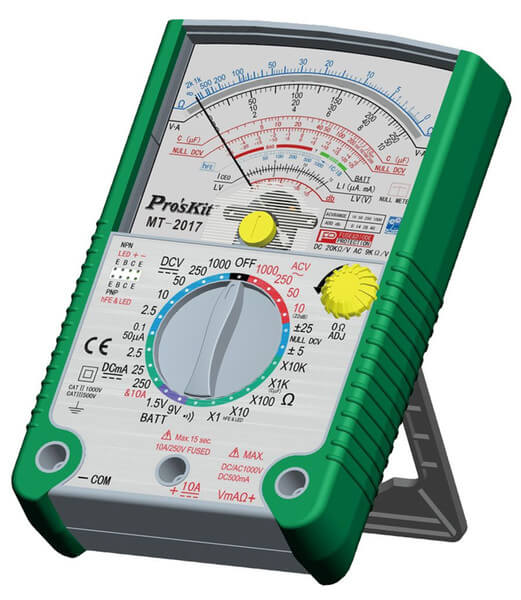

Proskit Analog Multimeter MT2017 is a new mechanism design multimeter. Analog Meter MT-2017, although older than the commonly preferred digital multimeter does come with several unique advantages. Although both digital and analog multimeters measure varying units, such as voltage, current, and resistance, they display their readings in distinctly different ways. Analog multimeters do take some energy from the circuit they are testing, whereas digital multimeters operate independently of circuit energy. In order to give an accurate reading analog multimeters need a high level of sensitivity—otherwise, the results may be skewed. When testing for resistance, the multimeter can rely on battery power.

Features of Proskit Analog Multimeter MT2017:

• New mechanism design
• The robust protective case together provides better protection.
• It comes with a foldable stand and connection design for practical use.
• Battery covers of 9 V and 1.5 V separately, replace the battery, or fuse more easily.
• This Multimeter is an accurate, safe, battery-operated, rear tilt-stand, easy to operate handheld instrument with a robust protective holster alongside and the adjustable back tilt device with hook-up design.
• It can offer accurate, reliable measurements of DC/AC Voltage, +/-DCV, DC Current, Resistance, and Diode, LED, Transistor, Decibels, Continuity test and Capacitance with very high sensitive quality movement, double-sided glass-epoxy PCB & good-designed circuit, as well as mirrored Aluminum dial plate, etc.
• It has the perfect full overload & miss-used protection via two Fuses, Oxide Varactor & Diodes.

Specifications of Proskit Analog Multimeter MT2017:

1. DCV: 0-0.1-2.5-10-50-250-1000V
2. Null DCV: dc-5 V, 25 V
3. ACV: 0-10-50-250-1000V
4. DCA: 0-0,05-2,5-25- 250 mA, 10 a
5. Resistor: 1 / 10 / 100 /1K / 10KΩ
6. Transistor: hFE: 0-1000
7. Front Panel Controls: range selector switch with OFF position, 0 Ohm adjustment knob
8. Protection of movement and indicator: 0.5A / 250 V and 10A / 250 V
9. Dimensions: 160 (length) x 105 (width) x 40 (height) mm
10. Weight: 390G approx.

Package Include:

1. 1 x Pro’skit MT-2017 Analog Multimeter
2. 2 x Test leads
3. 1 x English user manual
