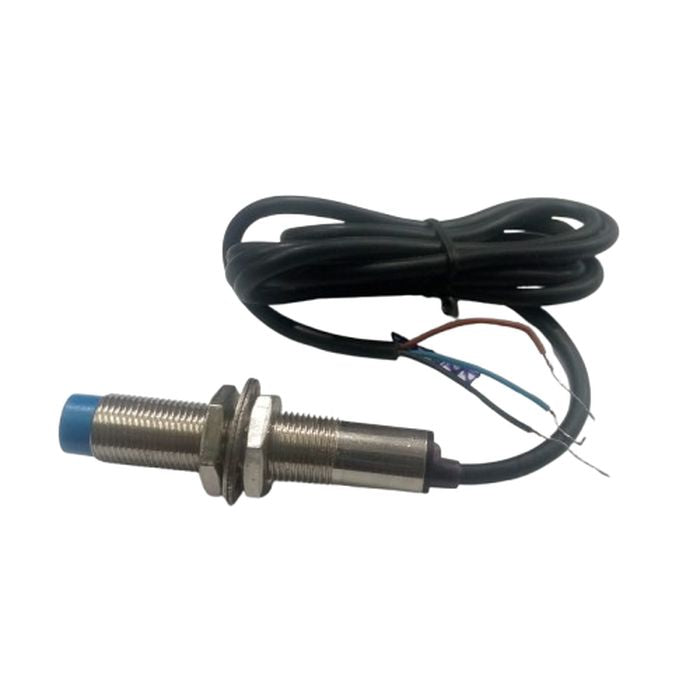

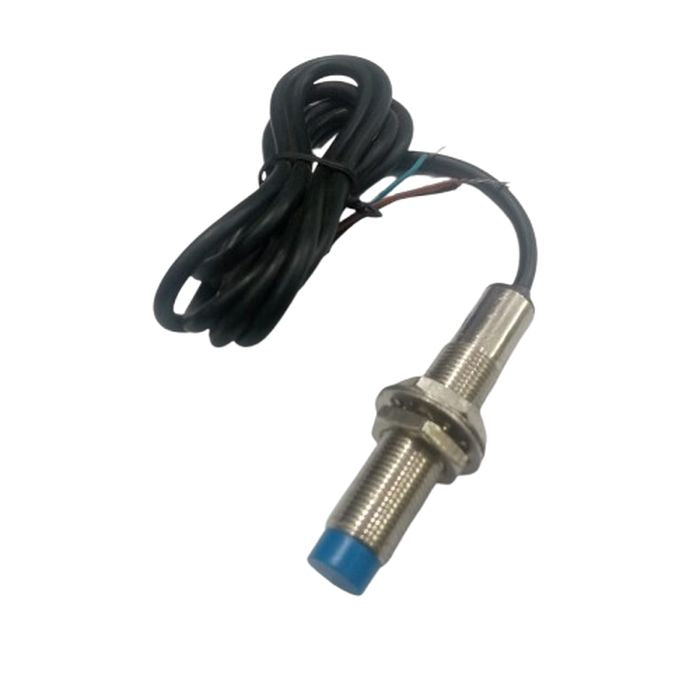

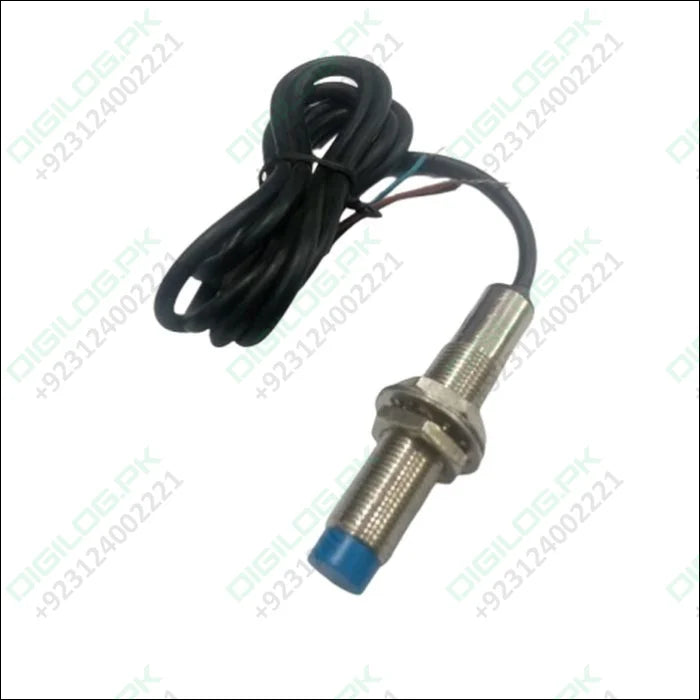

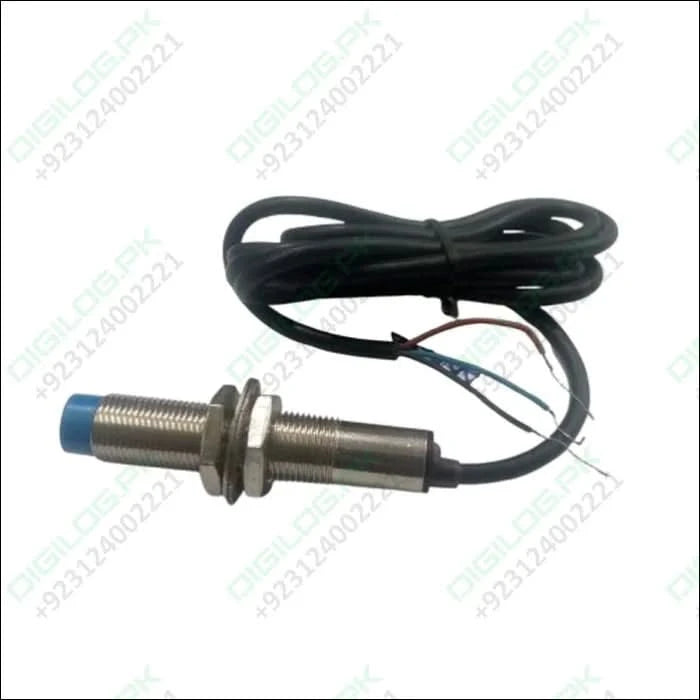

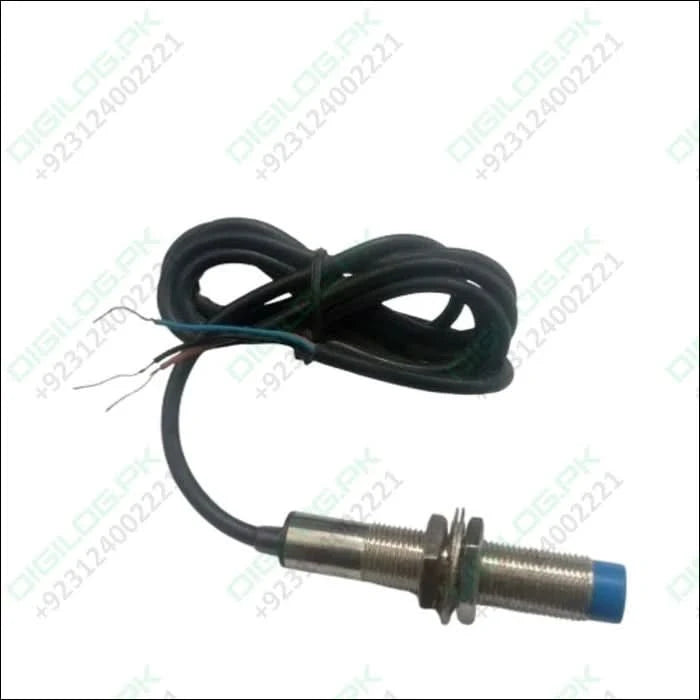

PNP Proximity Sensor

A PNP proximity sensor is a type of sensor used to detect the presence or absence of an object without making physical contact. PNP refers to the transistor type used in its output stage, where the current flows from the sensor's output (positive voltage) to the load. When the sensor detects an object, it switches on the output and allows current to flow to the load.

Operating Principle:

• The sensor uses electromagnetic fields, capacitive fields, or ultrasonic waves to detect objects nearby. Common types include inductive (metal detection), capacitive (all materials), and photoelectric sensors.

Output Type:

• PNP Configuration: In this configuration, when an object is detected, the sensor provides a positive output voltage relative to the ground. The load is connected between the sensor’s output and the ground (negative).

Three Wires:

• Brown: Positive voltage (V+ or supply voltage).
• Blue: Negative or ground (GND).
• Black: Output wire (carries the signal to the load, positive when the sensor is triggered).

Object Detection:

• The detection depends on the type of sensor (inductive for metals, capacitive for other materials, etc.). When the object enters the sensor’s range, the output becomes "high" (positive voltage).

Typical Applications:

• Used in automation systems, such as factory automation, conveyors, robotics, and packaging machines.
• PNP proximity sensors are generally used when the control system or PLC (programmable logic controller) expects a positive input signal.

Example Operation:

• No object detected: The output remains off (no voltage at the output).
• Object detected: The output switches on, supplying positive voltage to the load.

Advantages:

• Non-contact detection minimizes wear and tear.
• Suitable for high-speed applications.
• Reliable in detecting metal (inductive), non-metal (capacitive), or even through optical means (photoelectric).

[Power Supply]
    |         |
    V+      GND
    |         |
  (Brown)   (Blue)
   PNP Sensor
    (Black) -------> [Load]
                   (Positive voltage when activated)
