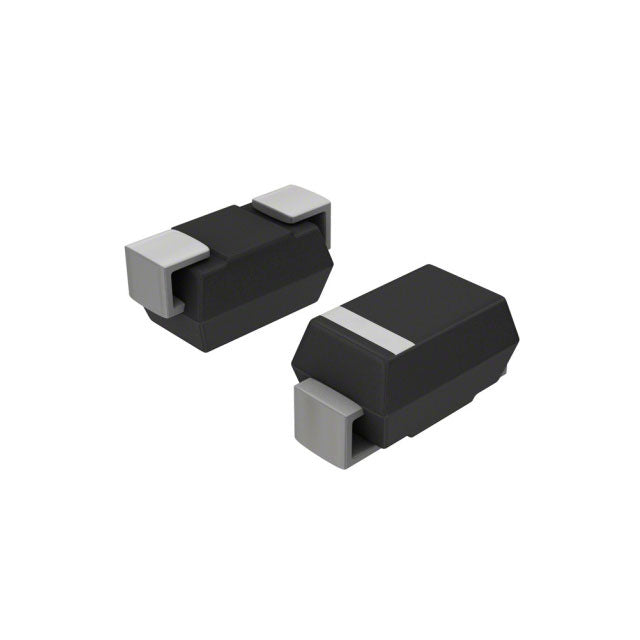

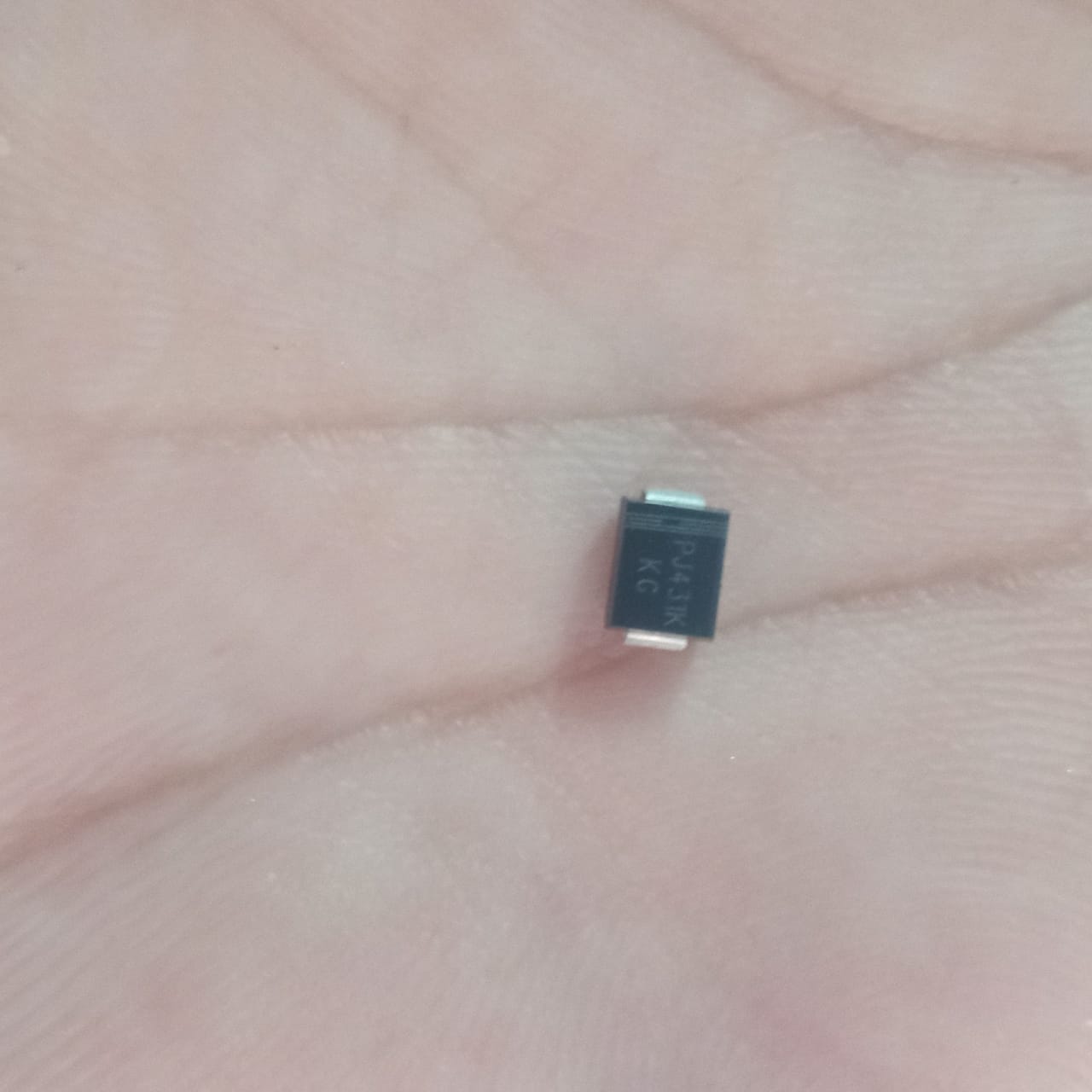

PJ431K SMD Schottky Diode – Precision Adjustable Voltage Reference
The PJ431K SMD Schottky Diode is a three-terminal adjustable precision voltage reference IC, designed in a compact SMD package. It is often called a Schottky-like diode, making it perfect for regulation circuits. This component is ideal for various applications, including switching power supplies, voltage regulation, and battery management. Additionally, its efficient design ensures reliable performance across a range of electronic systems.
It operates similarly to a programmable Zener diode and offers excellent temperature stability, fast response, and tight voltage tolerance.
Key Features of PJ431K SMD Schottky Diode
- First, it provides an adjustable precision voltage reference, ranging from 2.5V to 36V.
- Additionally, it ensures excellent thermal stability, guaranteeing reliable performance.
- Furthermore, it comes in a compact SOT-23-3 SMD package, making it ideal for space-saving applications.
- As a result, it is perfect for use in switching regulators and power supplies.
- Moreover, it features a programmable shunt regulator function, offering added flexibility.
Related Products
Learn More
Frequently Asked Questions (FAQs)
Q1: Is PJ431K the same as TL431?
A: Yes, PJ431K is a compatible alternative to TL431 with similar specs and functionality.
Q2: What is the typical output voltage of this diode?
A: It offers an adjustable output from 2.5V up to 36V depending on external resistors.
Q3: Can it be used in power supply circuits?
A: Absolutely. It's ideal for switching power supply feedback and precision voltage regulation.
Q4: What package type is PJ431K?
A: It's a space-saving SOT-23-3 SMD package.
Package Includes
- 1 × PJ431K Adjustable SMD Schottky Diode IC
